Garmin GPSMAP® H1 – Rugged touchscreen navigation for the trail
Product SKU: 010-02920-00

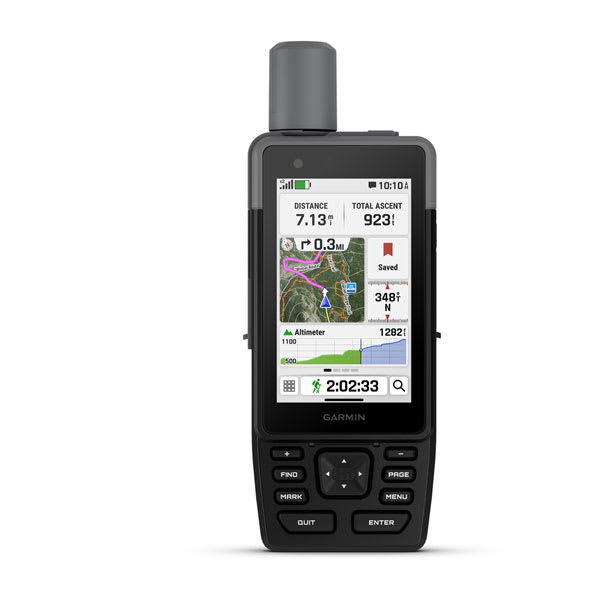

GPSMAP® H1 is a rugged GPS handheld navigator with a modern hybrid design, preloaded maps and incredible battery life—built for confident navigation when it’s time to hit the trails.
Overview
Designed for serious outdoor use, GPSMAP® H1 combines a bright 3.5-inch color touchscreen with physical buttons for versatile control in changing conditions. Navigate with preloaded TopoActive maps and high-resolution satellite imagery, and rely on multi-band GPS and multi-GNSS support to help pinpoint your precise location.
Built to meet MIL-STD 810 and rated IP67 for water resistance, it’s engineered to handle water and extreme temperatures. With up to 145 hours of battery life in GPS mode, it’s ready for extended trips and demanding routes.
Key Features
-
Hybrid touchscreen + buttons: 3.5-inch color touchscreen paired with intuitive push buttons for versatile operation with gloves and in weather.
-

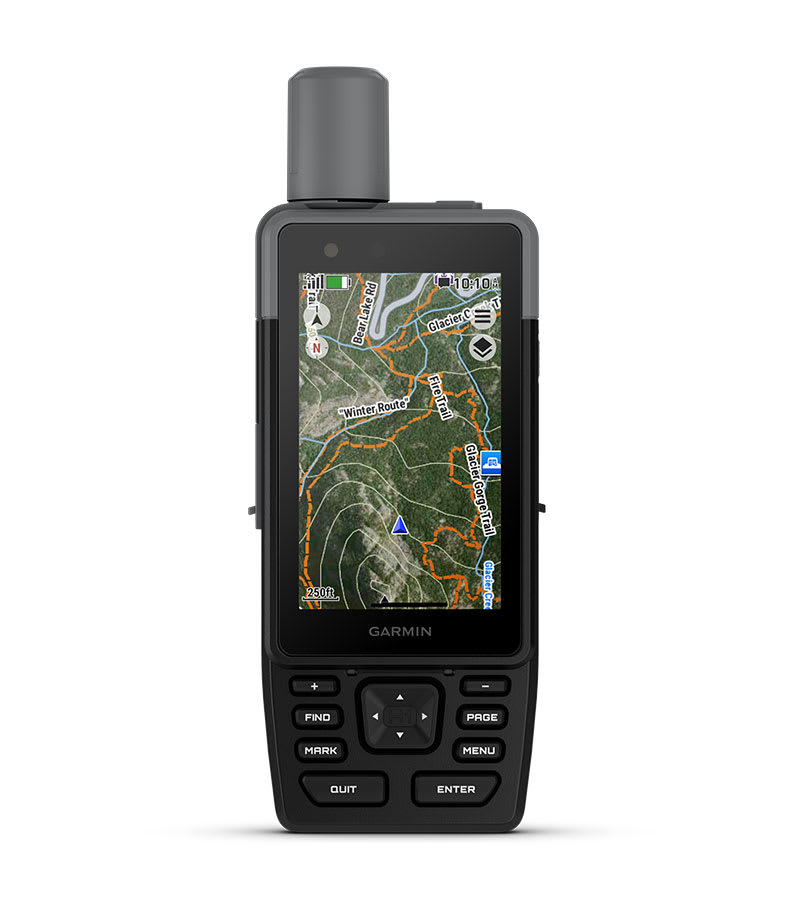

Preloaded mapping + imagery: Preloaded TopoActive maps, high-resolution satellite imagery and optional Outdoor Maps+ content.
-
Long battery life: Up to 145 hours in GPS mode.
-
High-accuracy positioning: Multi-band GPS and multi-GNSS support helps pinpoint your precise location.
-
Rugged durability: Meets MIL-STD 810 and IP67 water rating to withstand water and extreme temperatures.
Touchscreen Display
The bright, sunlight-readable 3.5-inch color touchscreen features chemically strengthened glass to resist scratches. It’s glove-friendly and easy to use—tap, zoom and swipe on maps to follow your route.

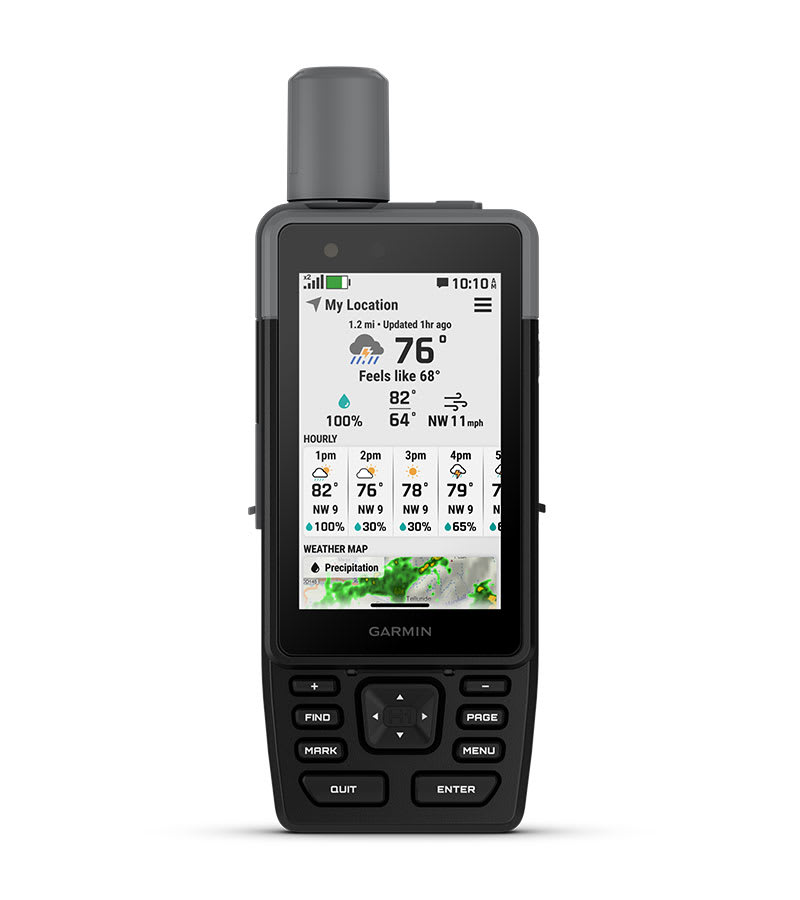

Physical Buttons
The rugged hybrid design includes intuitive push buttons for added versatility when operating in weather and while wearing gloves. The quick-action button lets you customize functions to your specific needs.
Advanced Navigation

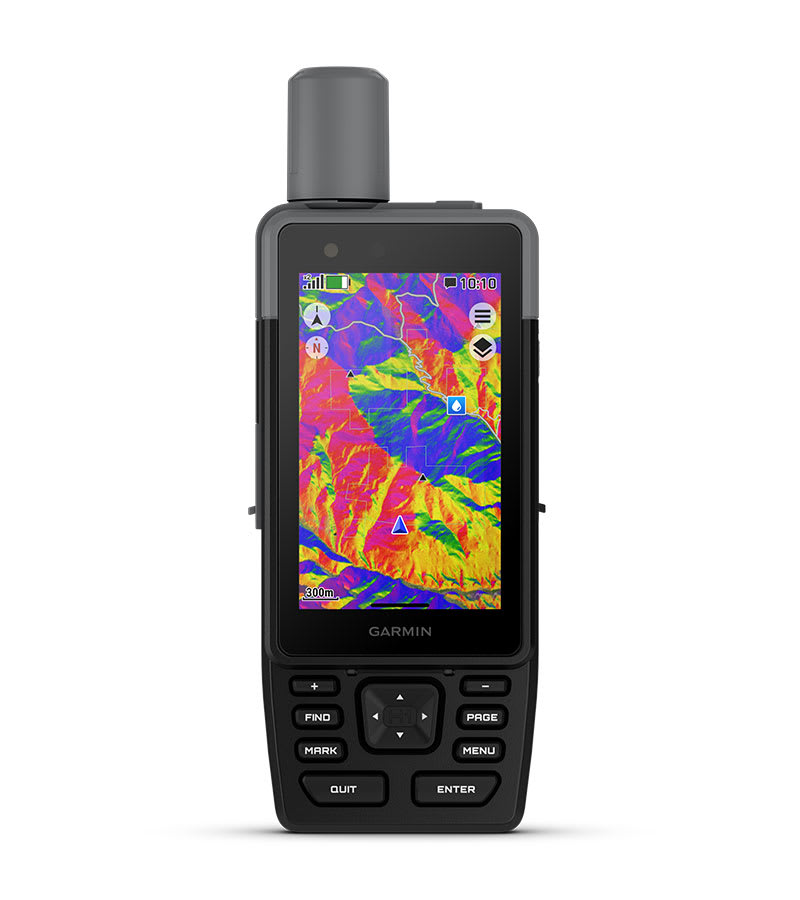

Navigate with preloaded TopoActive maps for the U.S., Mexico and Canada—plus easy-to-access global maps. View terrain contours, elevations, geographical points and more.

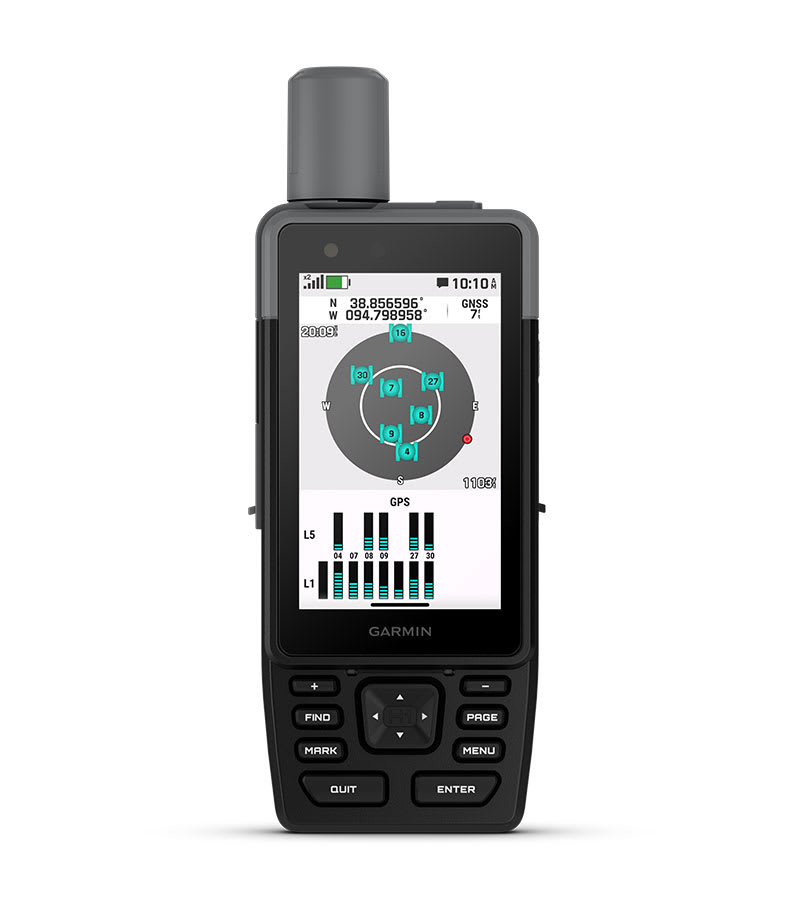

Location Accuracy
Get multi-band GPS and multi-GNSS support for superior positional accuracy.
Helpful Tools
Use the built-in bright LED flashlight torch as a beacon or to light your way when the path goes dark. A loud built-in siren can help draw attention if you are in need.
Rugged Design
Built to meet MIL-STD 810 for thermal, shock, water (IP67) and vibration to withstand weather and extreme temperatures.
On the Go
This device has an integrated Spine Mount 2 and includes a removable loop carabiner for more versatility on your adventure. It’s also compatible with additional Spine Mount 2 accessories, sold separately.
ABC Sensors
Get a built-in altimeter for elevation data, a barometer to monitor weather and a 3-axis electronic compass to provide direction.
Specifications
-
Lens Material: chemically strengthened glass
-
Dimension: 2.6" x 7.0" x 1.3" (6.7 cm x 17.9 cm x 3.3cm)
-
Weight: 9.7 oz (276 g)
-
Water rating: IP67
-
MIL-STD-810: yes (thermal, shock, water); bare unit only
-
Touchscreen: Yes
-
Display Type: transflective color TFT
-
Display Size: 1.9"W x 3.0"H (4.7 x 7.7 cm), 3.5" diagonal (8.9 cm)
-
Display resolution: 282 x 470 pixels
-
Battery Type: rechargeable, internal lithium-ion
-
Battery life: All Satellite Systems + Multi-band: Up to 145 hours* Expedition mode: Up to 840 hours *Assuming typical use with SatIQ™ technology
-
Memory/History: 64 GB (user space varies based on included mapping)
-
Interface: USB-C
-
Preloaded maps: yes (TopoActive, routable)
-
Ability to add maps: Yes
-
Basemap: Yes
-
Automatic routing (turn by turn routing on roads) for outdoor activities: Yes
-
Map segments: yes (15,000)
-
Satellite Imagery: yes (direct to device)
-
Includes detailed hydrographic features (coastlines, lake/river shorelines, wetlands and perennial and seasonal streams): Yes
Available from AllAmericanKTM, GPSMAP® H1 is ready to ship nationwide—built for riders and adventurers who want reliable navigation and rugged performance in the field.
