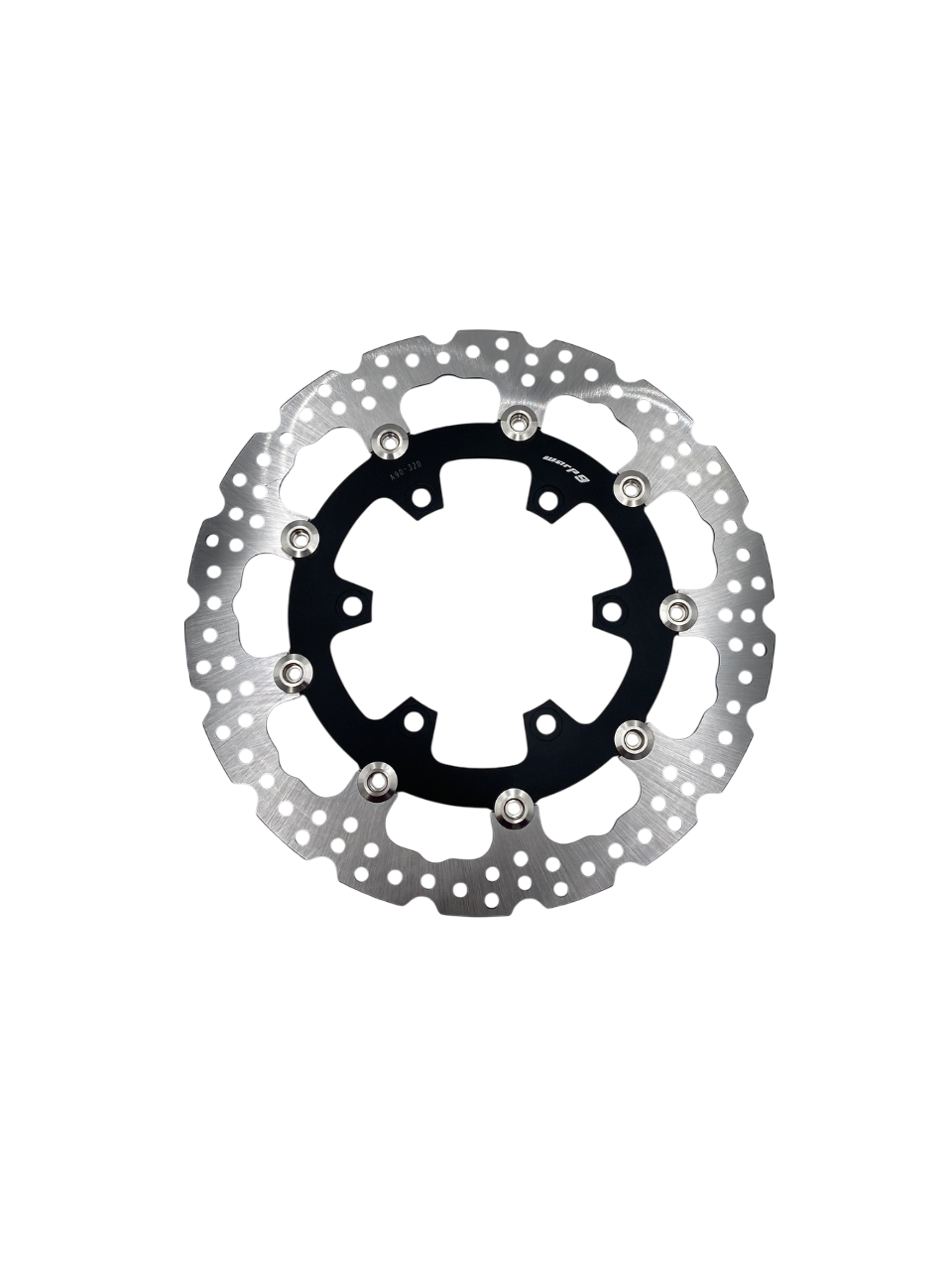

The Warp 9 Racing DR650 320mm Front Floating Rotor is a front brake rotor upgrade for the Suzuki DR650, designed to deliver strong, consistent braking with a floating rotor style. This rotor measures 320mm in diameter and 4mm thick, and it mounts using 6 bolts with M8 hardware. Rotor bolts are included to simplify installation. Important fitment note: it needs the Bracket 5 DR650 caliper relocation bracket to fit, sold separately. If you’re setting up a 320mm front rotor conversion on a DR650, plan on pairing this rotor with the required relocation bracket for proper caliper positioning.
Built as a 320mm floating front brake rotor for the Suzuki DR650. The floating style is intended to provide stable braking performance while matching the 320mm rotor conversion setup for this model.
Rotor mounting is specified as 6 bolts with M8 hardware. The rotor thickness is 4mm, keeping the fit and stack-up aligned with the listed specifications for this DR650 front rotor.
Rotor bolts are included in the box for installation convenience. Fitment requires an additional component: it needs the Bracket 5 DR650 caliper relocation bracket to fit, sold separately.
Front floating brake rotor for the Suzuki DR650. Rotor bolts are included.
It needs the Bracket 5 DR650 caliper relocation bracket to fit, sold separately.
| Diameter | 320mm |
|---|---|
| Thickness | 4mm |
| Style | floating |
| Mounting | 6 bolts, M8 |
Fits: Suzuki DR650.
Caliper bracket requirement: Bracket 5 DR650, sold separately.
