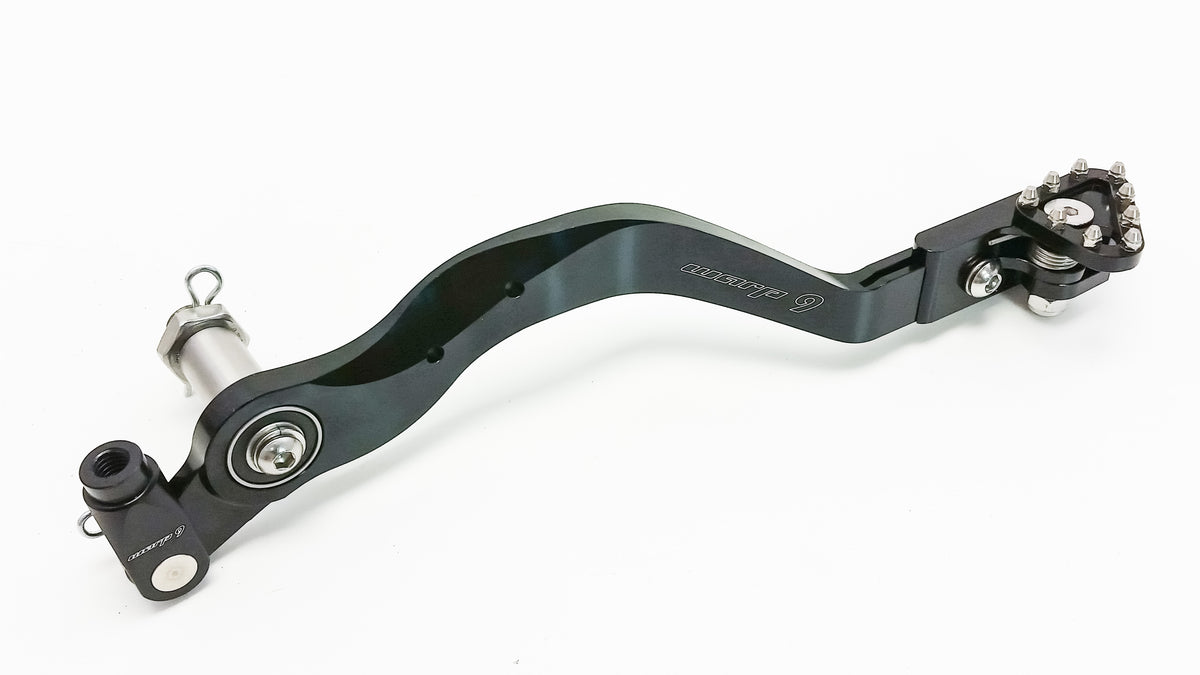

The Warp 9 DR650 Brake Pedal is a performance replacement rear brake pedal designed to improve durability, feel, and adjustability over the OEM setup. It uses stainless pin mounts in the frame to help eliminate the pin wearing out the frame like the OEM pedal, and the pin rides on a roller bearing for super smooth, no slop movement. The pedal arm is machined from billet and is a beefy 8mm thick for added strength. It includes a frame brake snake cable and frame tab, and features a sliding tip with three positions to fine-tune foot control. Finished with a black arm and black tip.
Stainless pin mounts in the frame help eliminate the pin wearing out the frame like the OEM pedal. This design relocates the wear point away from the frame and is built to hold up to repeated brake use on a DR650.
The pin rides on a roller bearing for super smooth, no slop movement. The bearing-supported pivot is designed to keep the pedal action feeling precise and consistent, especially compared with a looser, worn OEM-style pivot.
The tip will slide to 3 different positions, letting the rider keep OEM length or move the tip 10mm forward or backwards from the stock tip location. This adjustability helps dial in pedal reach based on boot size and riding preference.
Replacement brake pedal for the DR650 with a billet-machined arm, stainless pin mounts, and a roller bearing pivot for smooth operation. Includes hardware to run a frame brake snake cable.
| SKU | 91-DRPEDAL |
|---|---|
| Arm thickness | 8mm |
| Tip positions | 3 |
| Tip adjustment range | 10mm forward or backwards from stock tip location |
| Color | Black arm with black tip |
Includes a frame brake snake cable and frame tab. The tab is not needed if they have the Warp 9 skid plate as we added a hole for the brake cable.
Includes a frame brake snake cable and frame tab; tab is not needed if they have the Warp 9 skid plate as we added a hole for the brake cable.
