KTM · PowerParts · Chassis/triple clamp

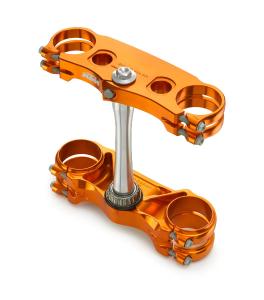

The KTM Factory Racing Triple Clamp is a CNC milled aluminium triple clamp designed to sharpen front-end feel through precise fork tube alignment and a stiffness balance tuned around the steering stem. Finished with an elegant anodised surface in Orange, it’s built for riders who want smoother fork response, improved handling, and increased stability at the front wheel.
This triple clamp (Part Number A4600199902104A) features specially optimized fork clamping geometry to help prevent ovalization of the fork outer tube and promote more homogeneous force flows throughout the vehicle. It also supports simple offset adjustment between 20 or 22 mm, allowing geometry changes to suit different track conditions and preferences.
Construction
Machined from aluminium with CNC accuracy, this triple clamp is engineered to keep the fork tubes precisely aligned. That accuracy supports a highly precise, smooth fork response and helps the chassis deliver a more consistent feel through the front end.
Installation
A specially optimized fork clamping geometry is designed to maintain proper support of the fork outer tube and reduce the risk of ovalization. The result is a front-end setup focused on controlled movement and more predictable feedback.
Durability
Offset can be adjusted simply between 20 or 22 mm to tune steering behavior. A shorter offset emphasizes stability on fast straights, while a longer offset is intended to make cornering easier and quicker in curves.
Maintenance
The steering stem stiffness is optimally tuned, combining front-end precision with ideal flexibility that is precisely customized to the WP fork. This balance is intended to translate rider inputs cleanly while supporting stability at the front wheel, contributing to an overall handling gain when conditions demand accurate, repeatable steering feel.
Installation
This triple clamp is supplied including a steering stem with the steering head bearing already pressed on. That integrated approach supports a straightforward installation path while keeping the assembly focused on accuracy, alignment, and the intended fork response characteristics built into the clamp design.
Design
Finished with an anodised surface in Orange, the triple clamp pairs a race-focused component with a clean, refined look. Please note that color differences between the upper and lower triple clamp cannot be technically ruled out, which can result in slight variation in appearance.
| Part Number | A4600199902104A |
|---|---|
| Product Line | KTM PowerParts |
| Category | Chassis/triple clamp > Triple Clamps |
| Colour | Orange |
| Materials | Aluminium |
| Surface | Anodized |
| Factory Racing | Used by factory racing |
KTM approval notice: Closed Course Competition Use Only, in the EU.
