Construction
Shell and Mips System

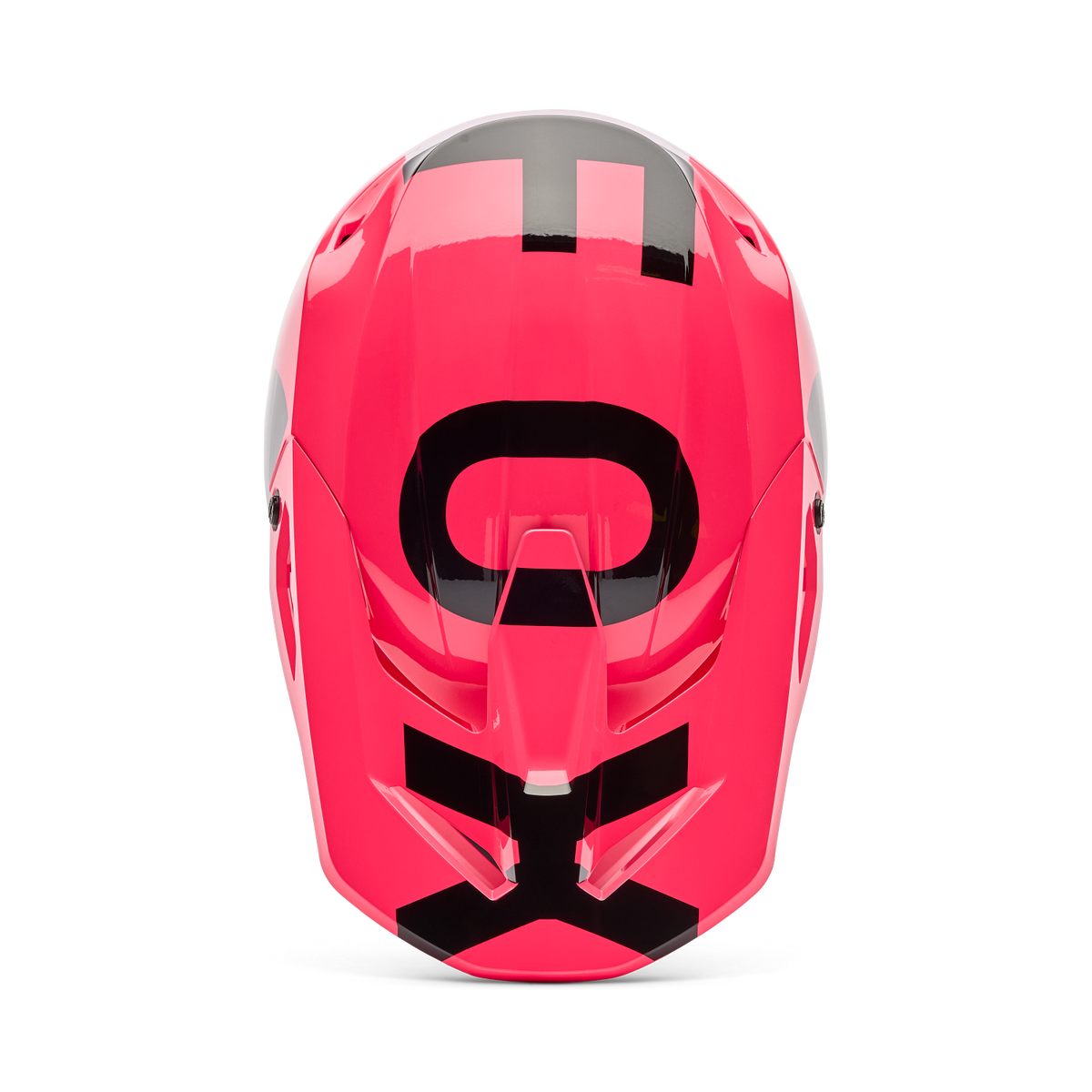

The helmet features a lightweight injection molded polycarbonate and ABS shell construction intended to disperse energy in the event of a crash. It also meets ECE 22.06 and DOT certifications.

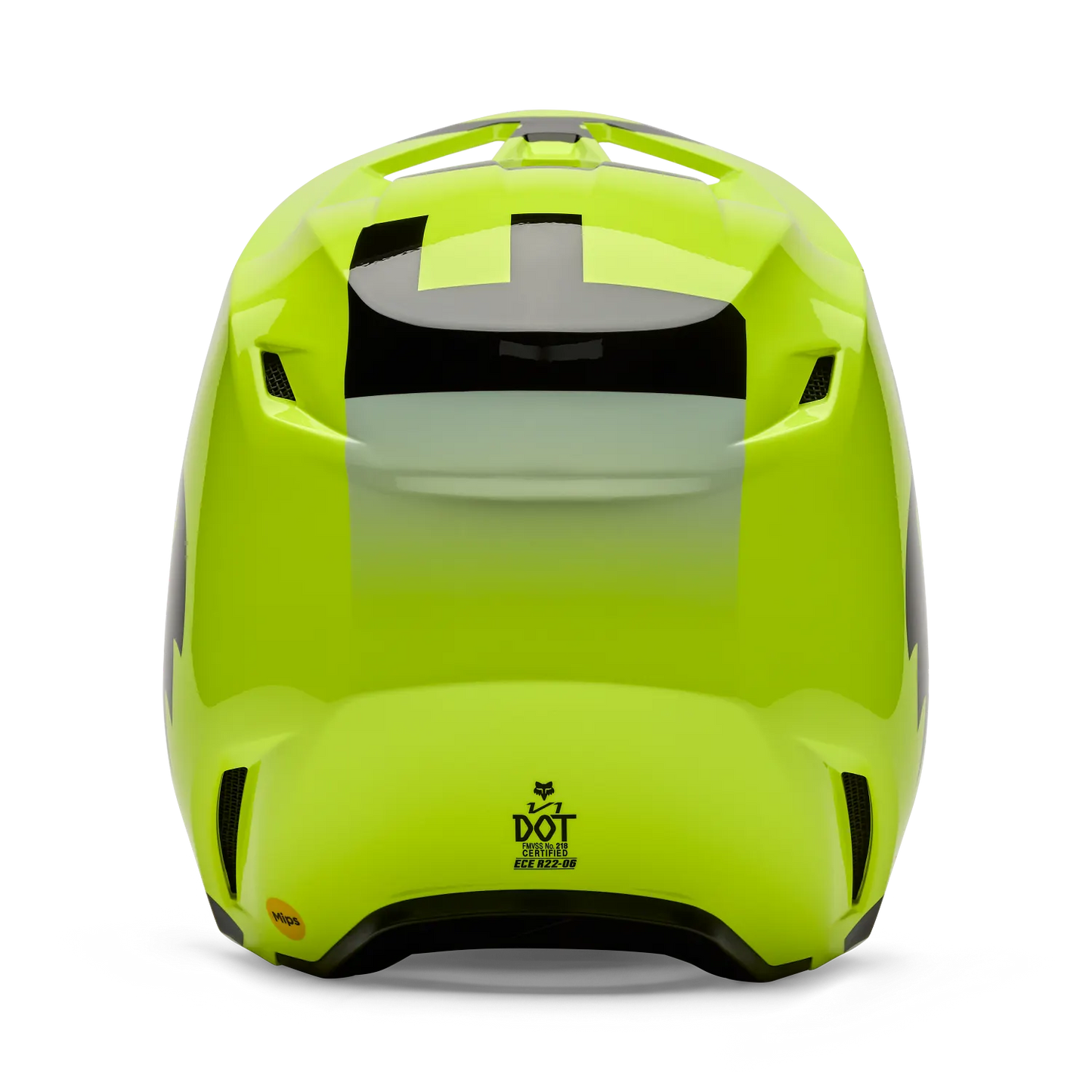

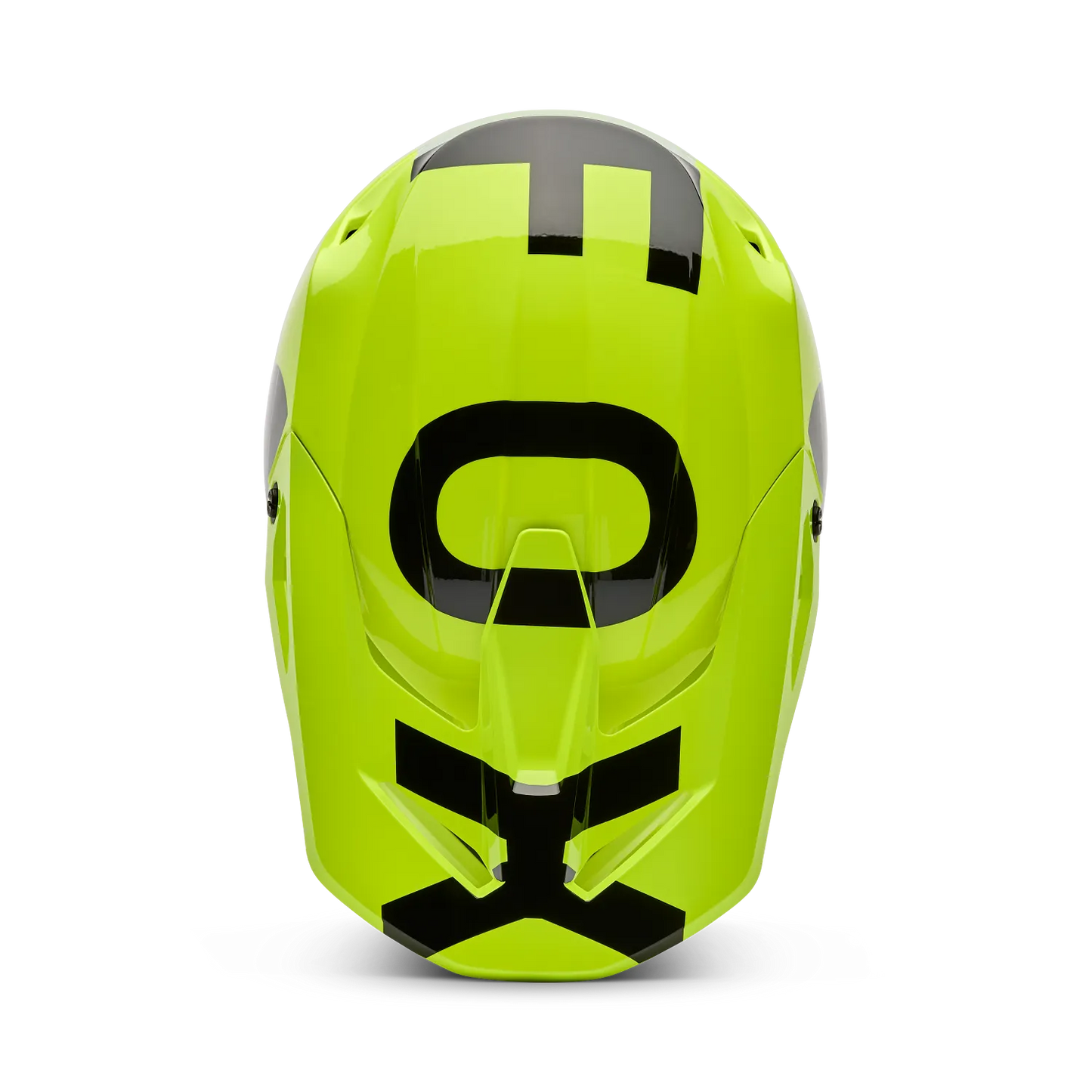

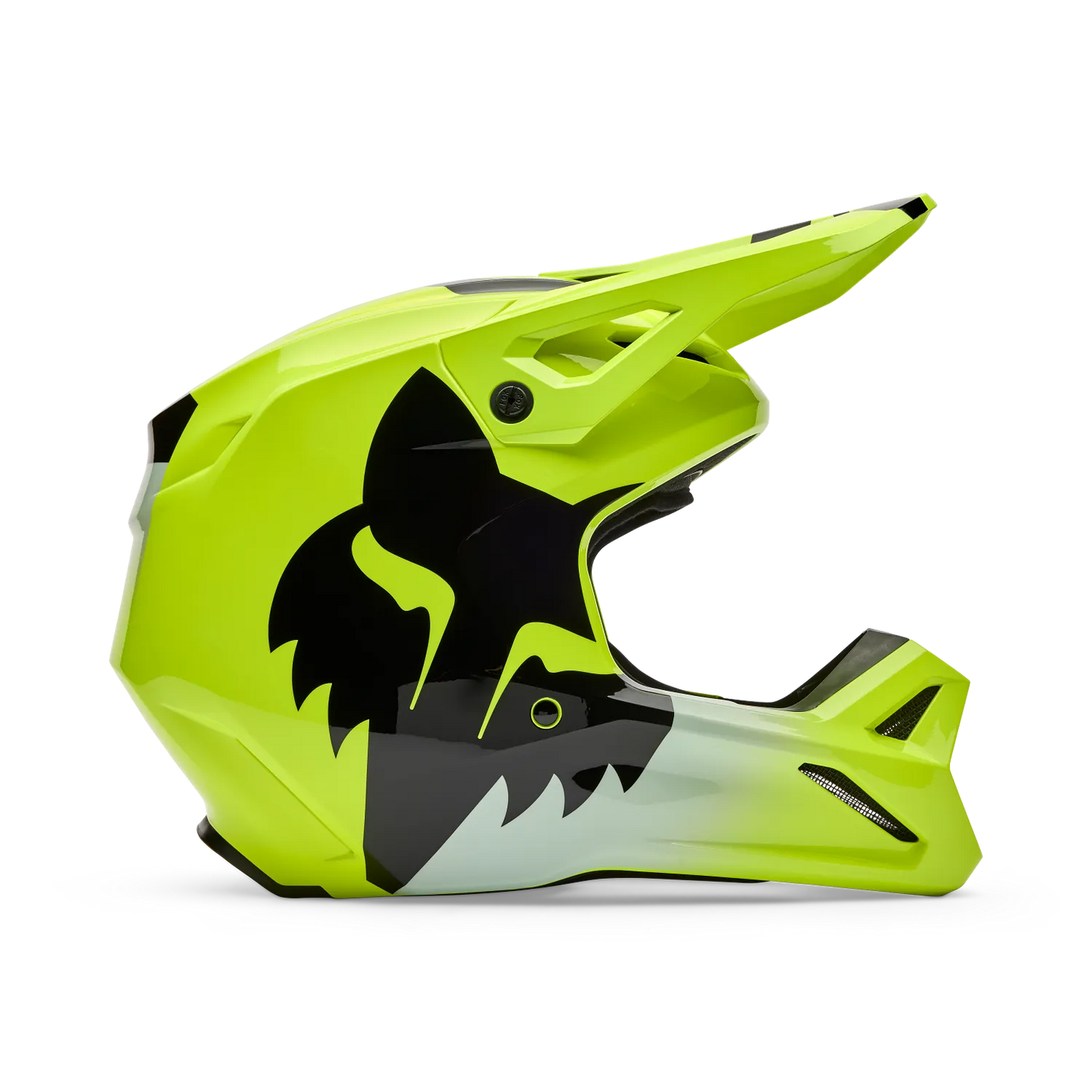

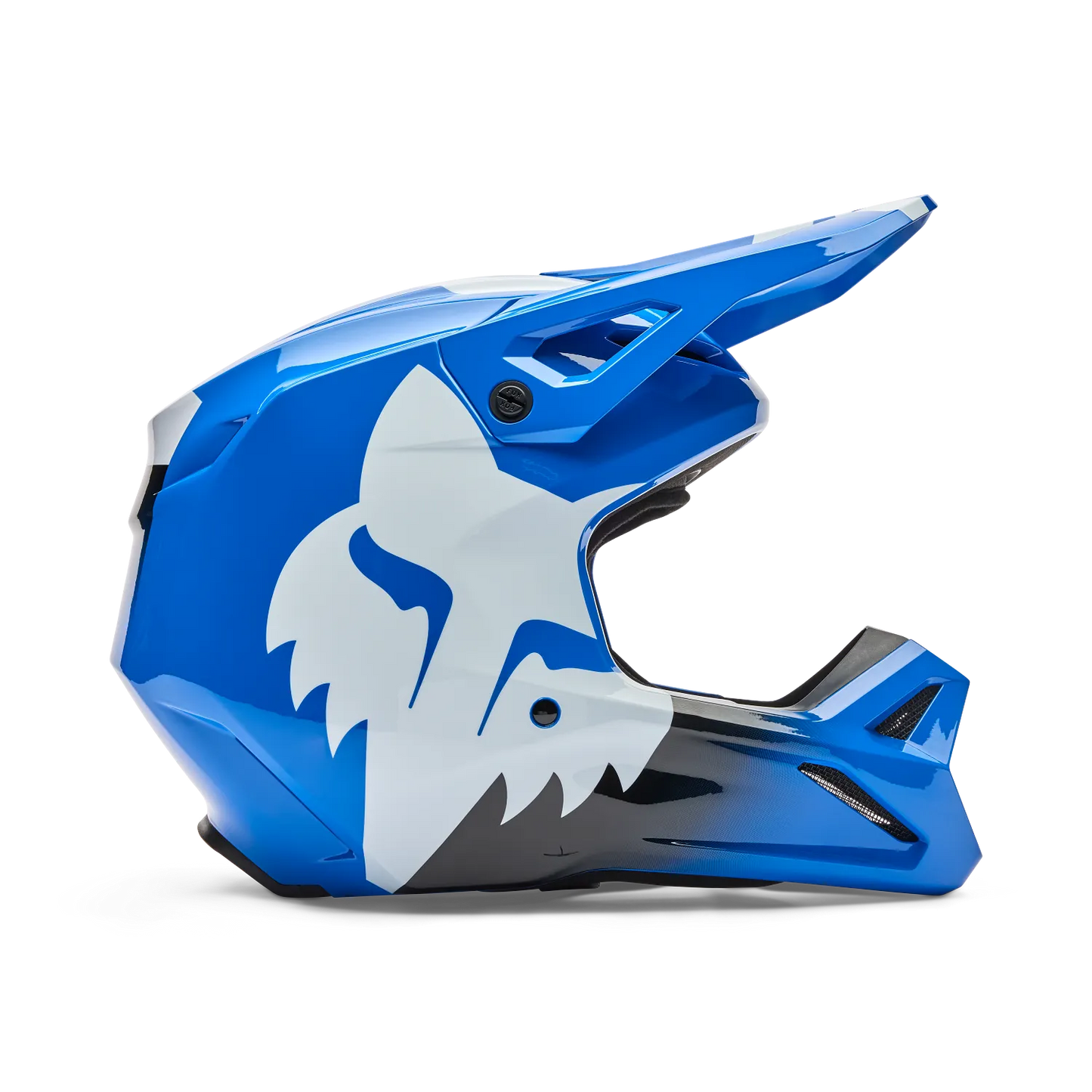

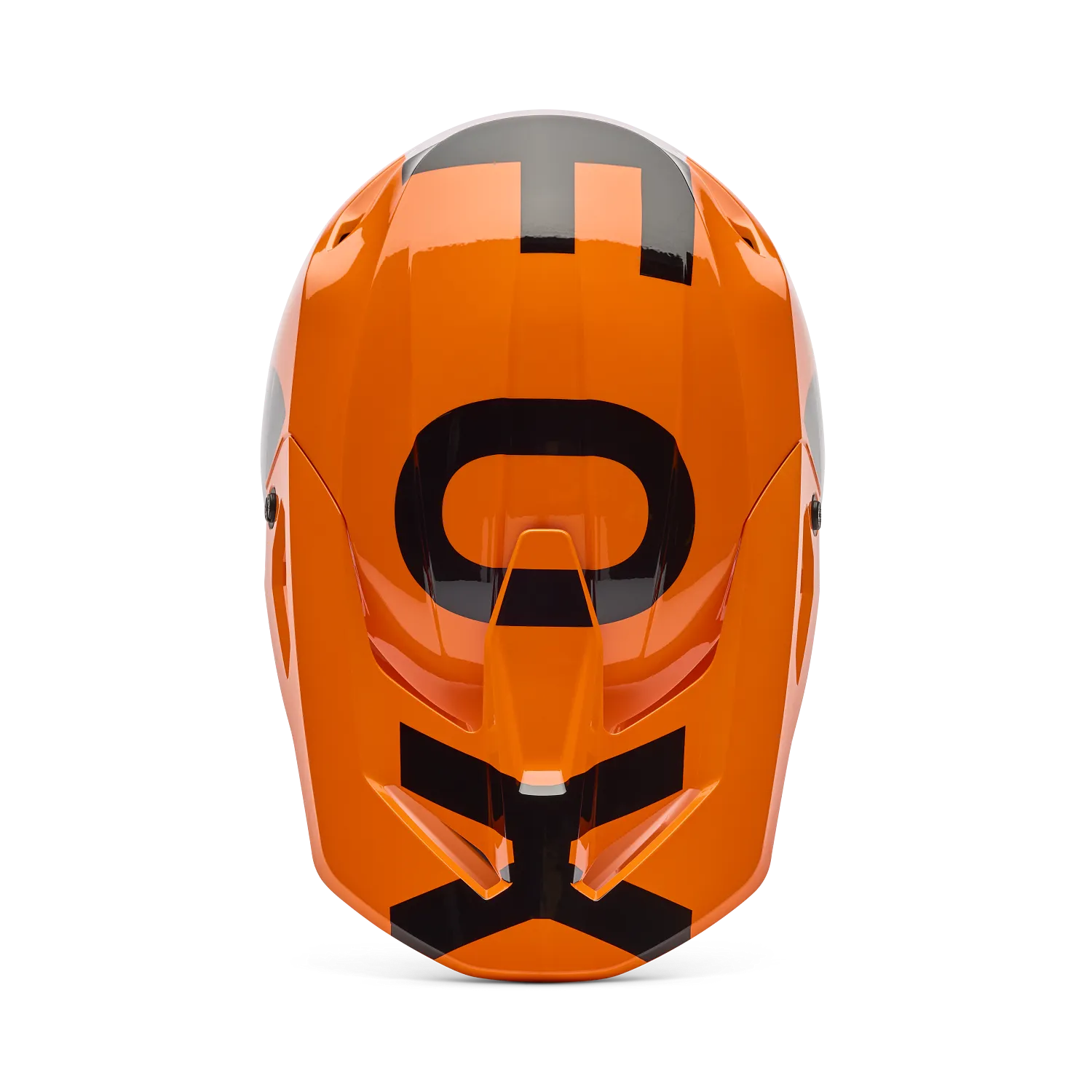

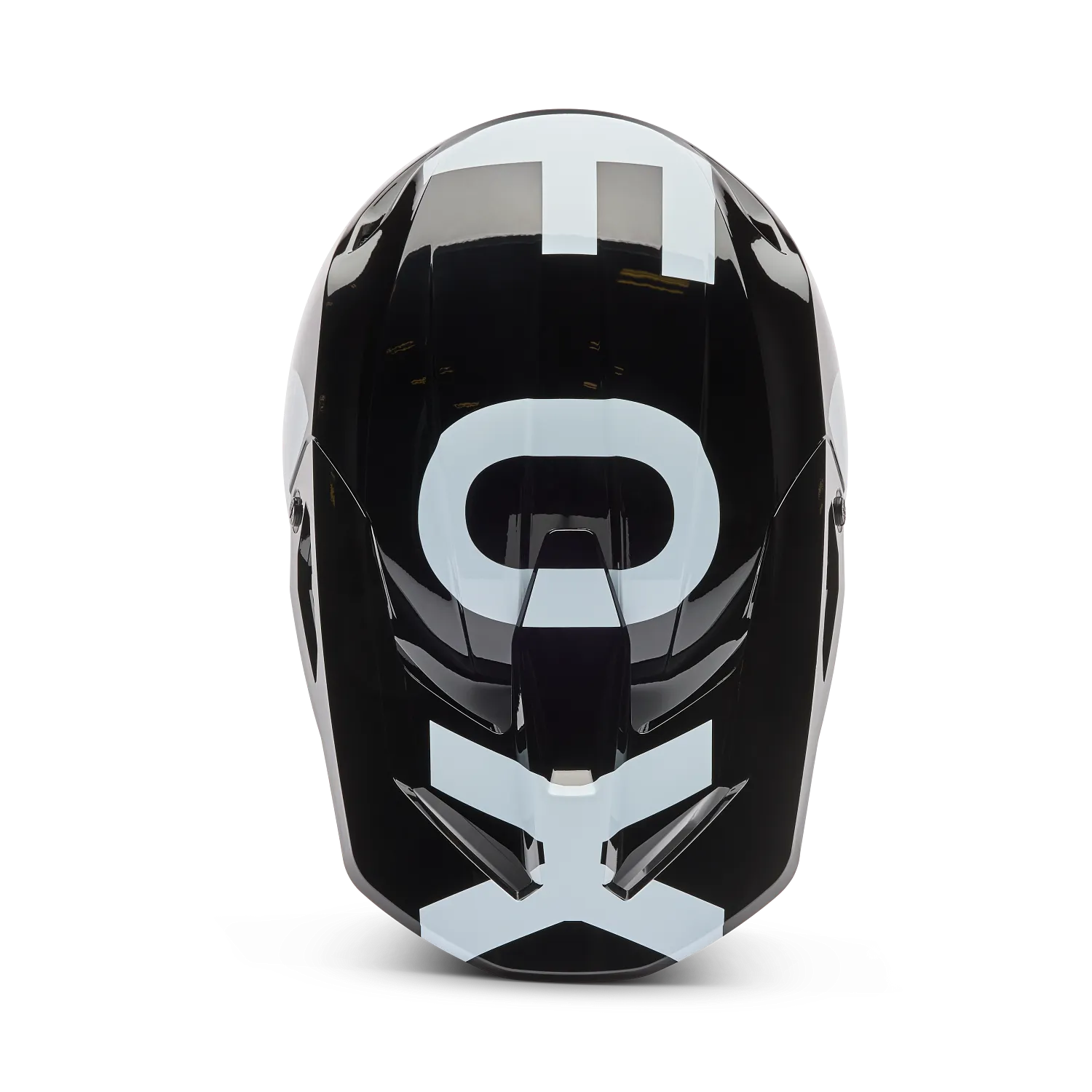

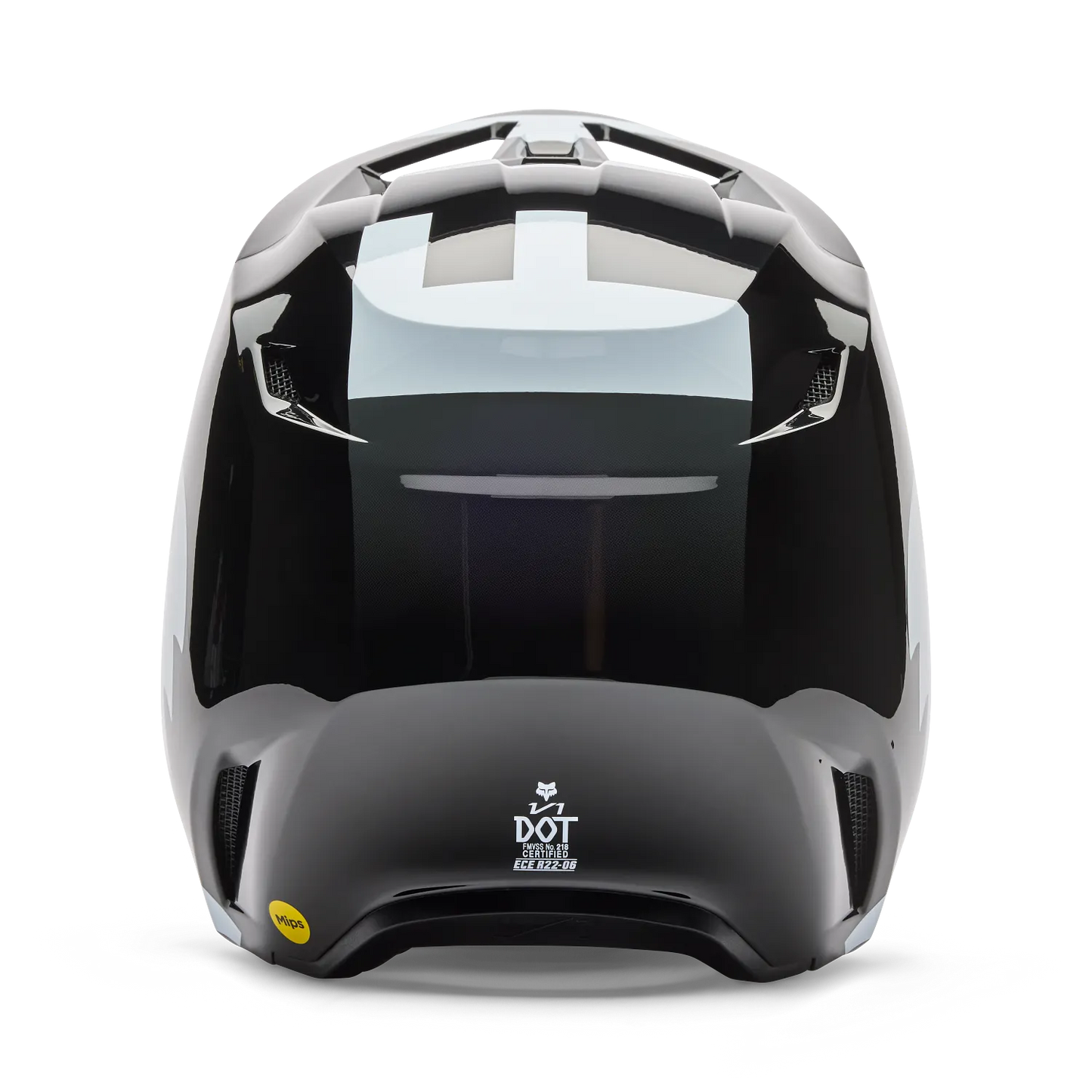

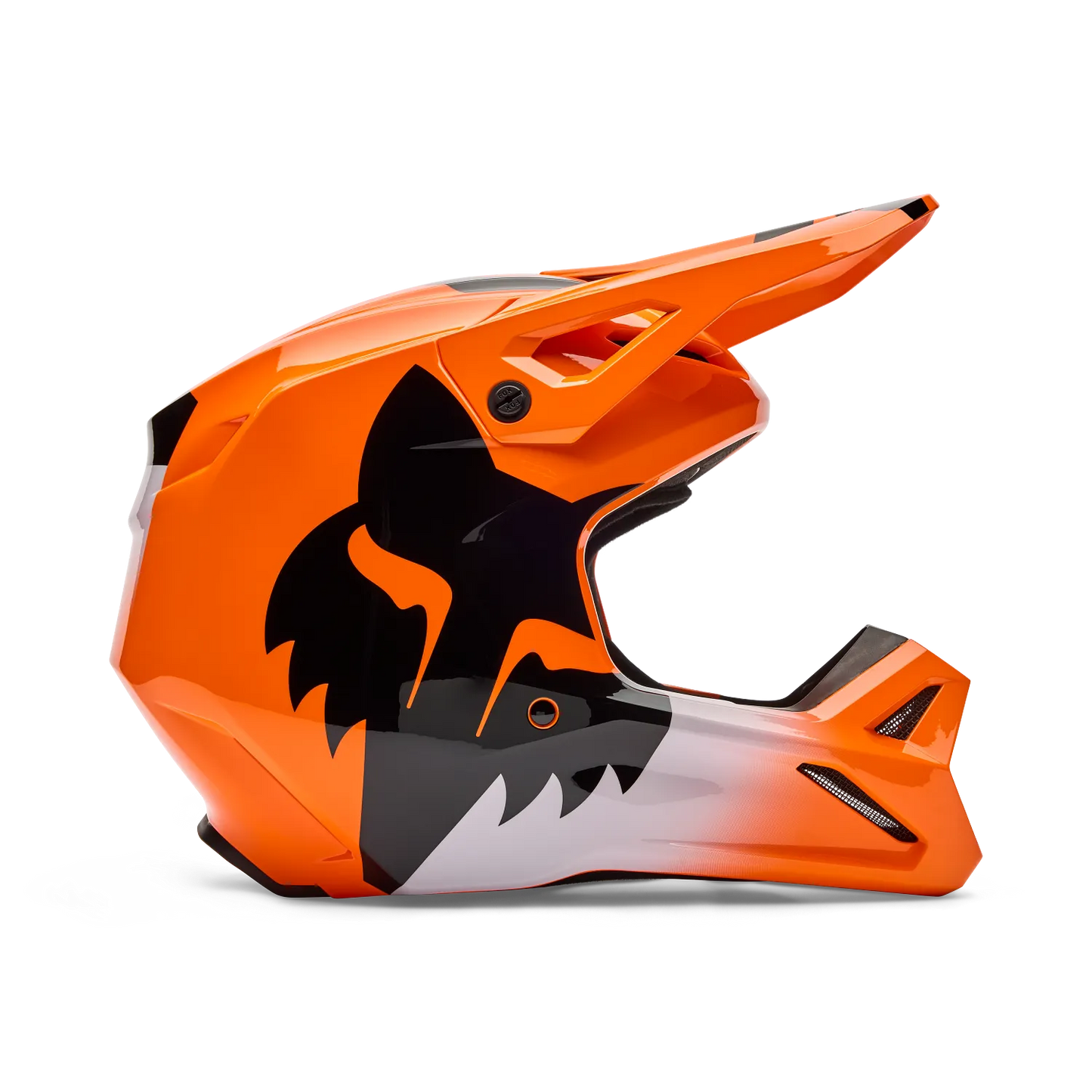

FOX Racing · Helmet · Moto

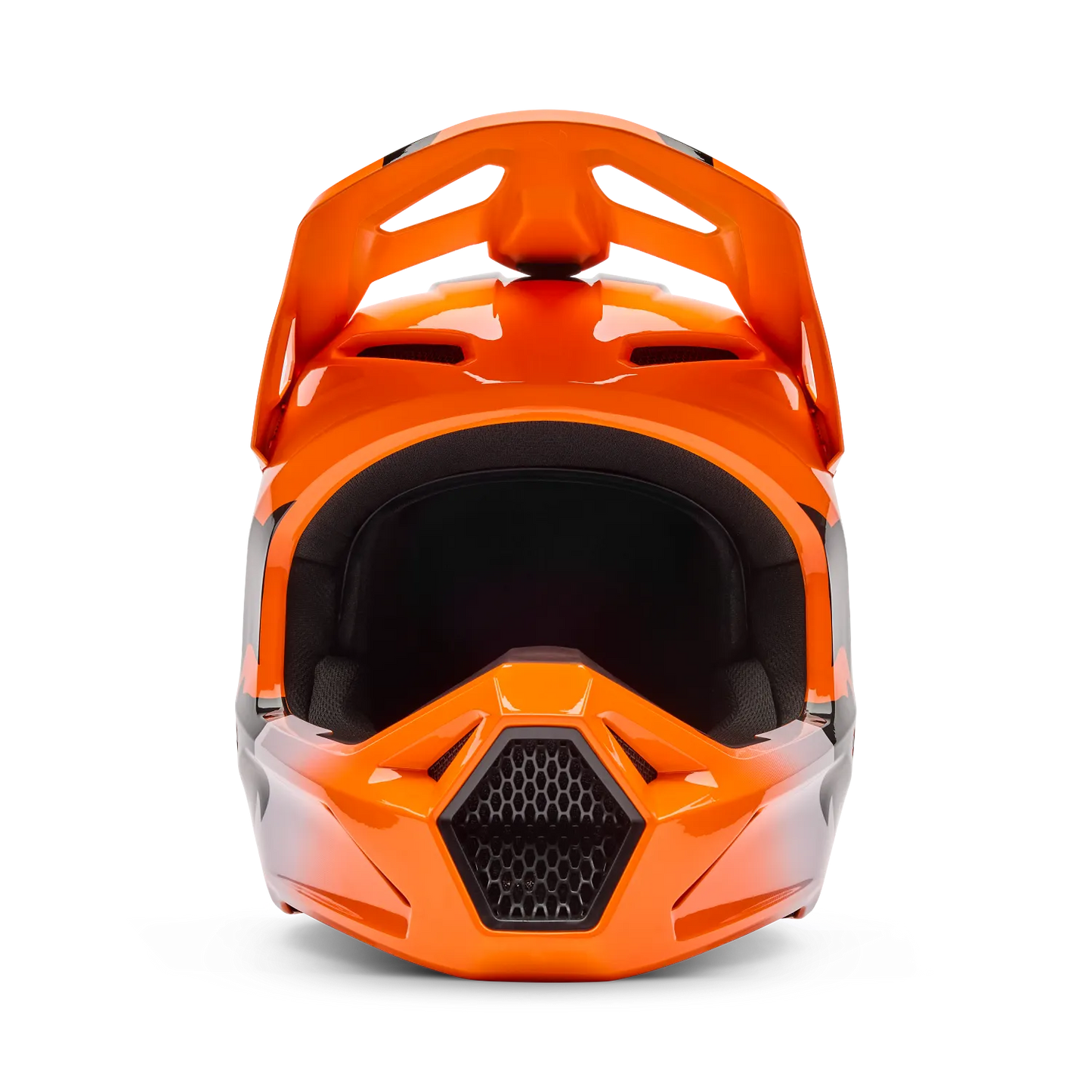

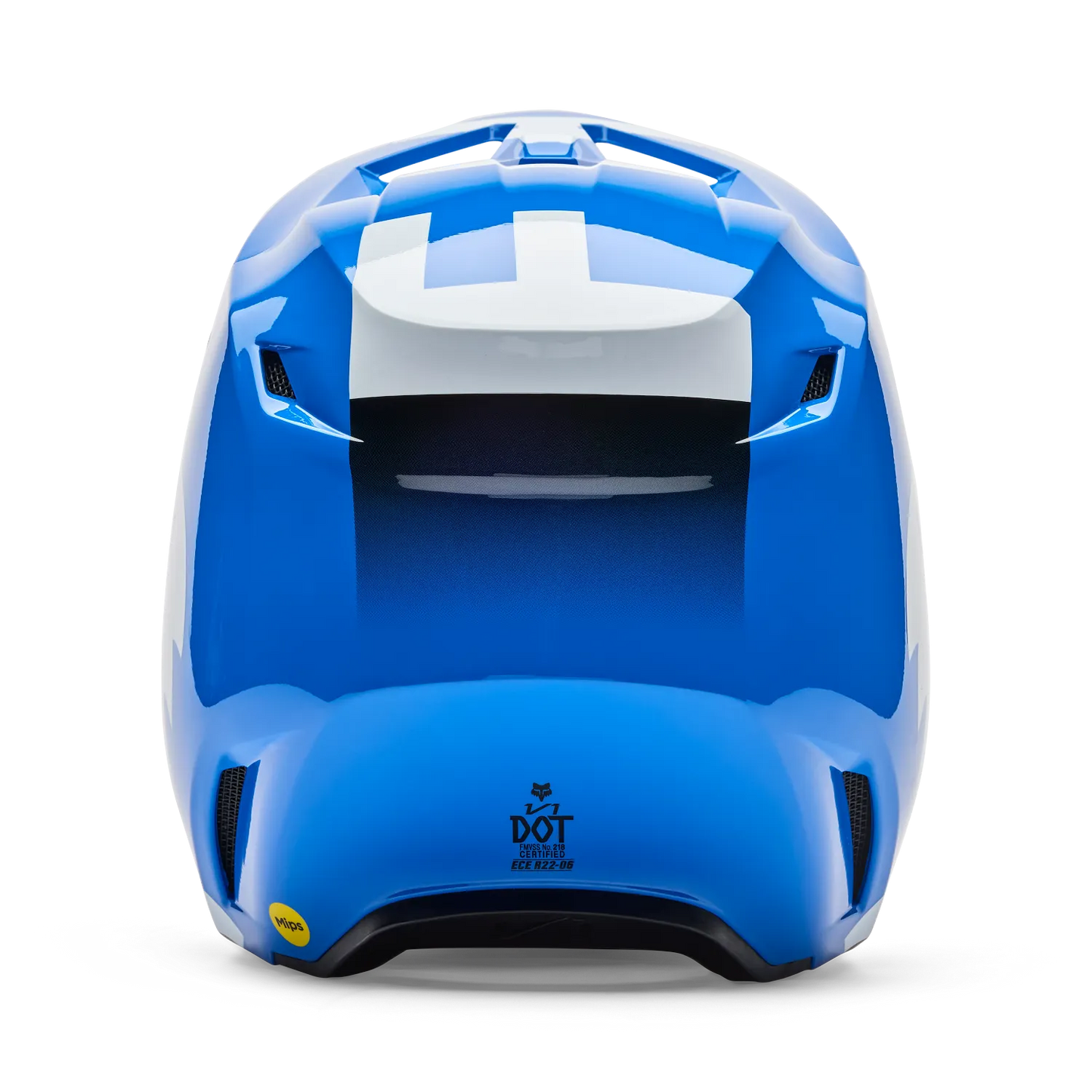

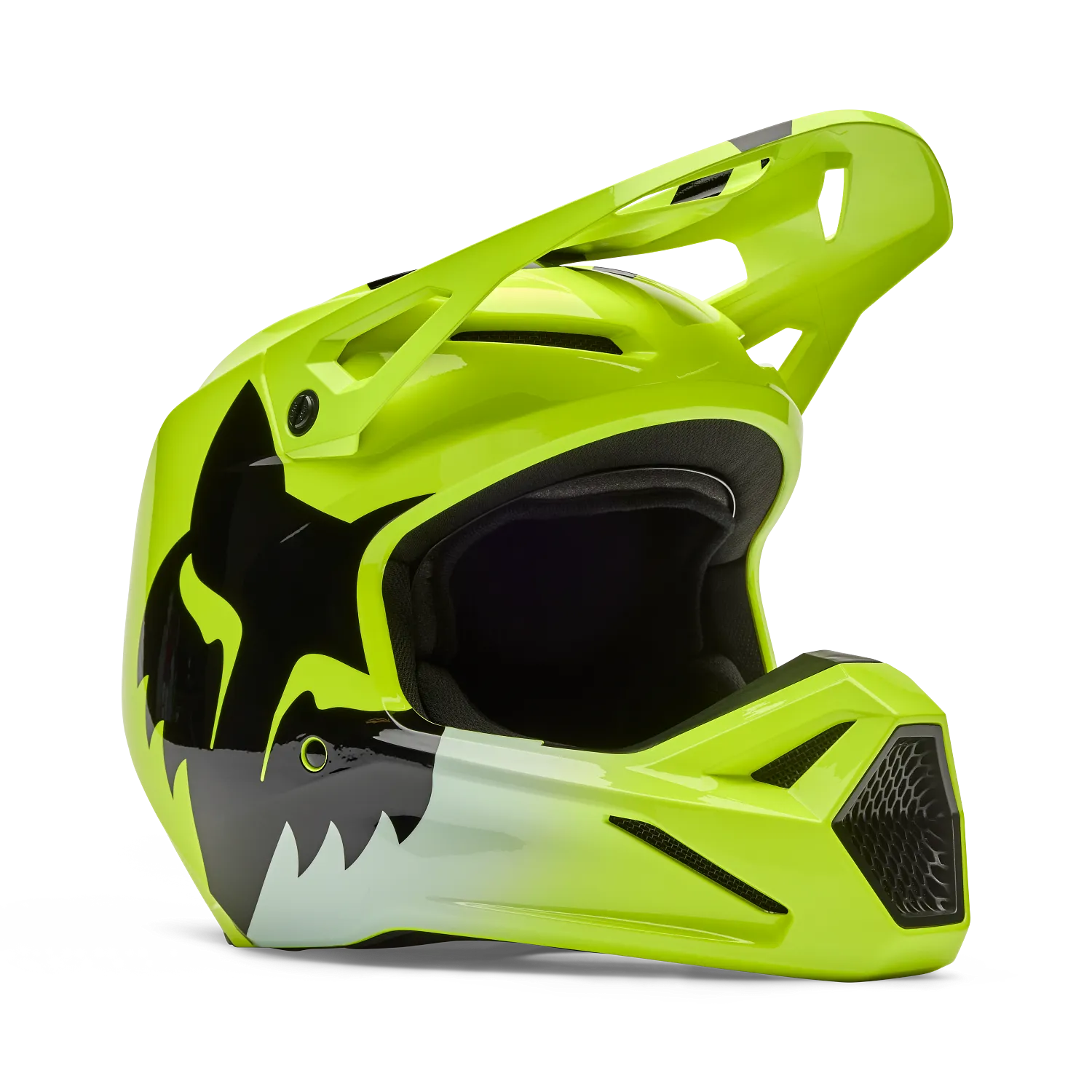

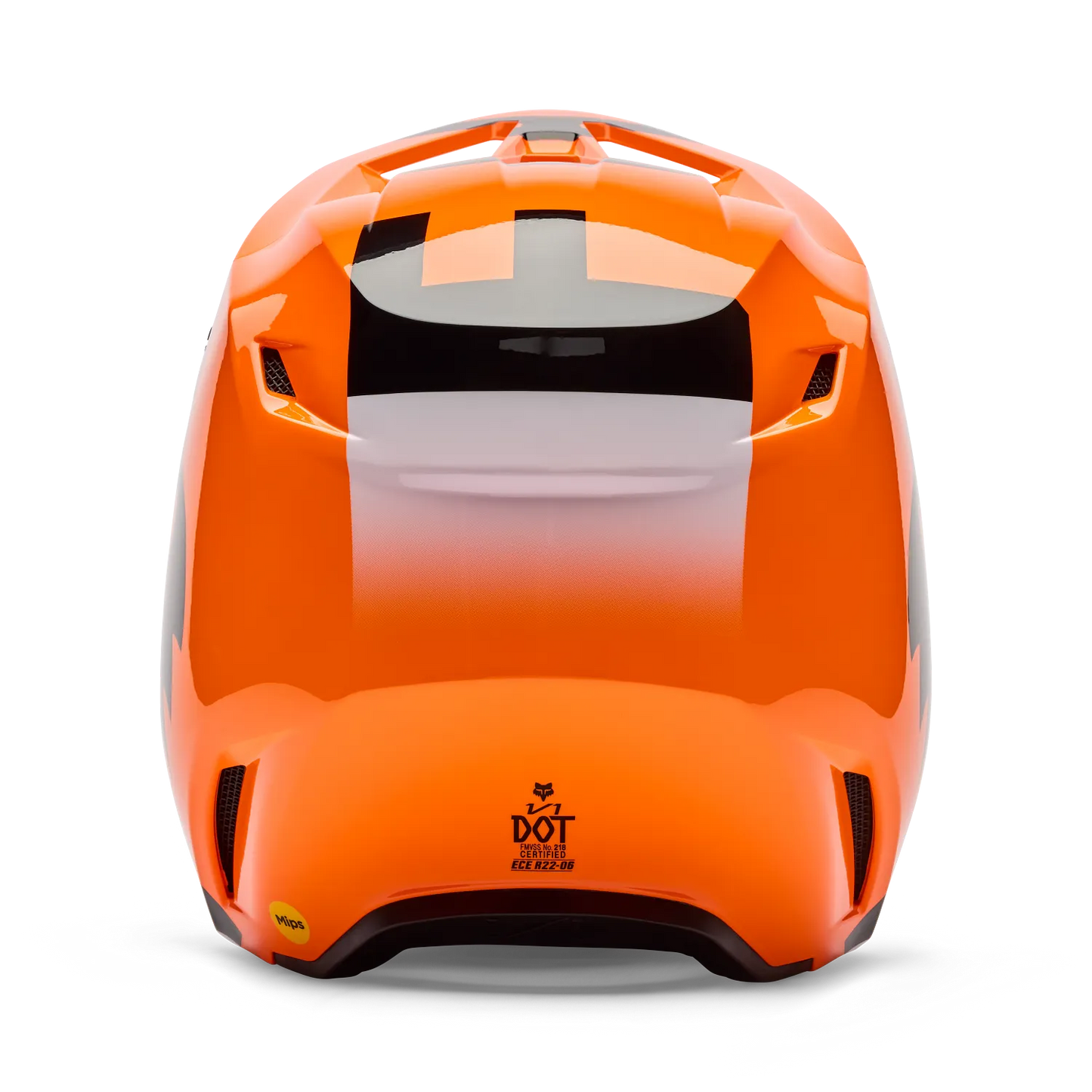

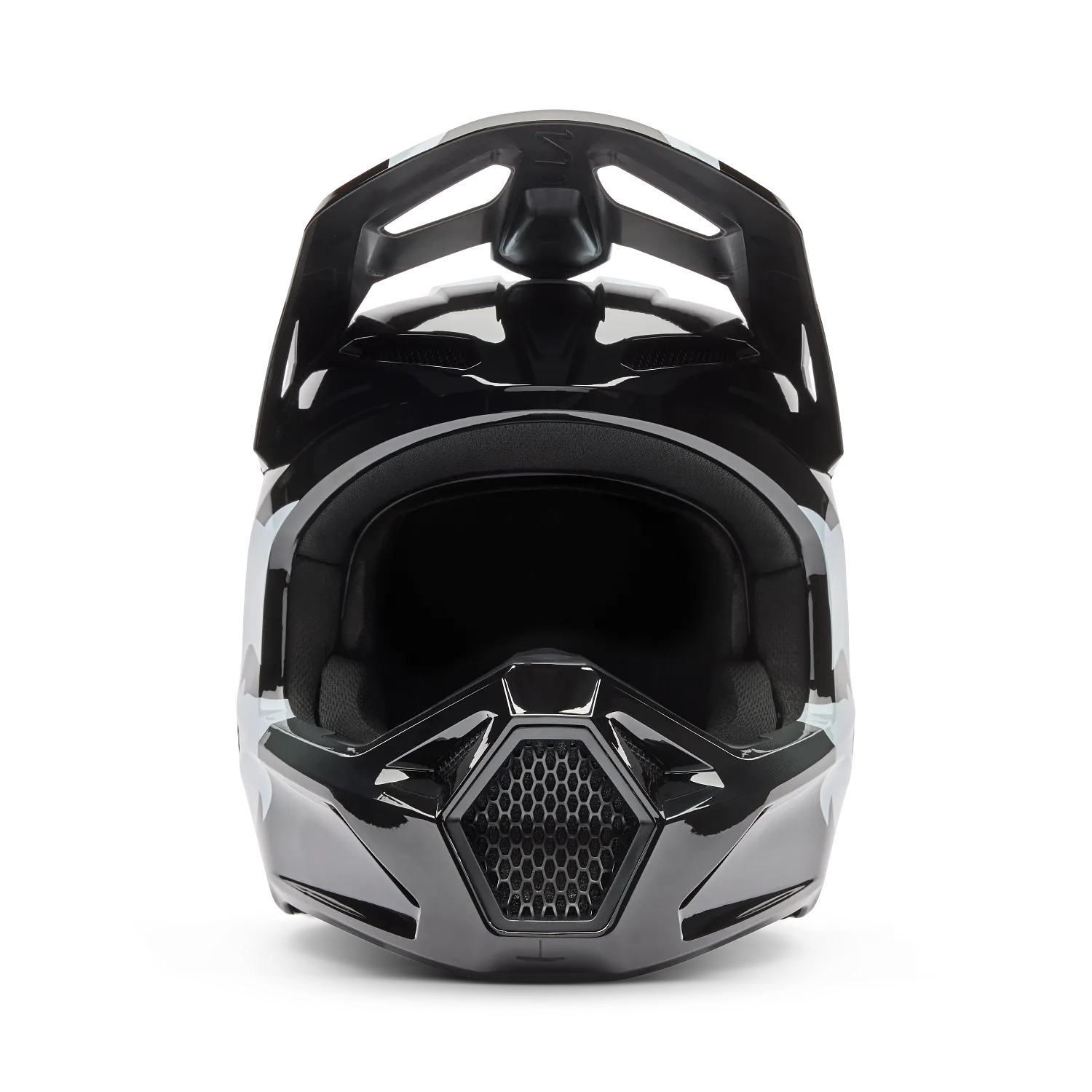

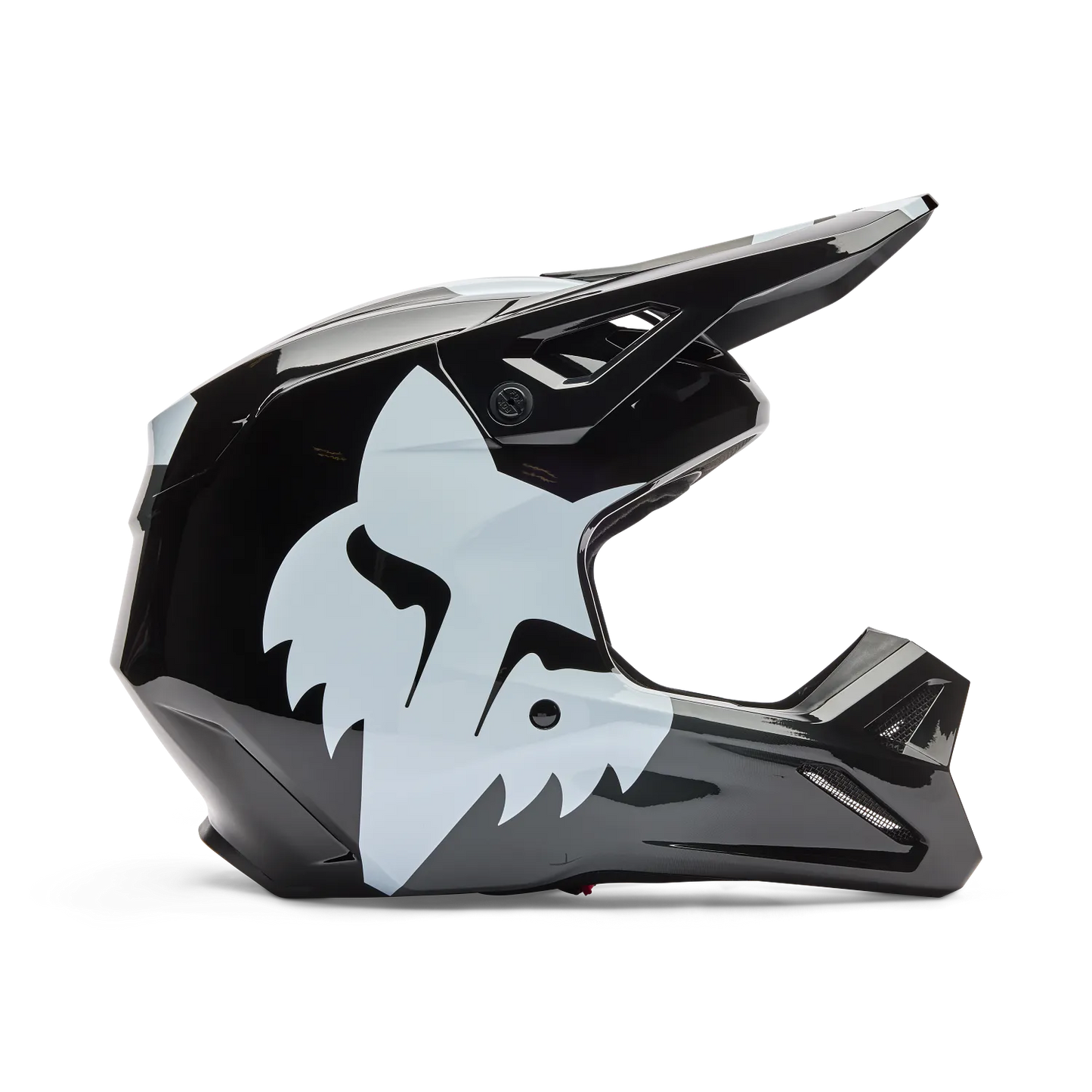

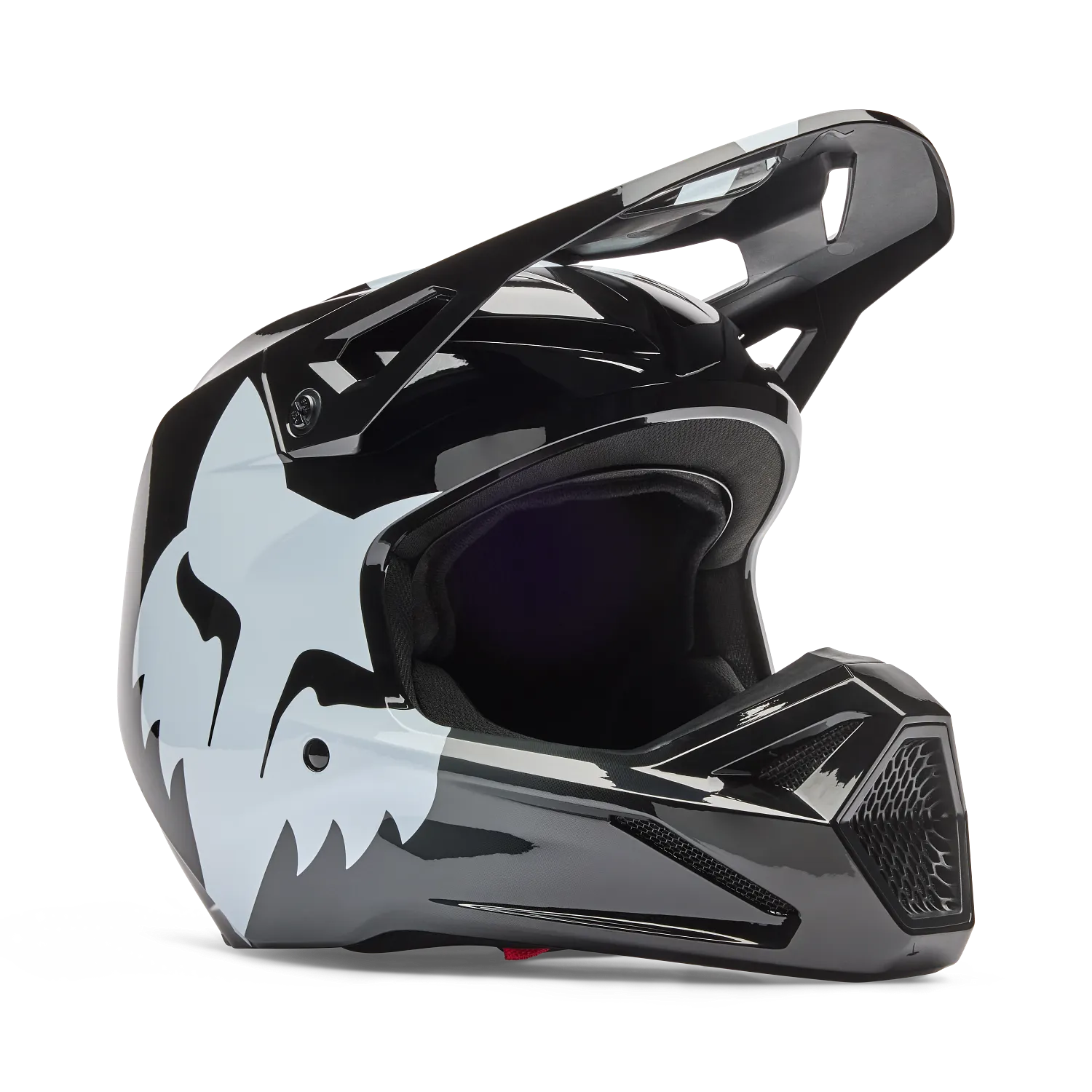

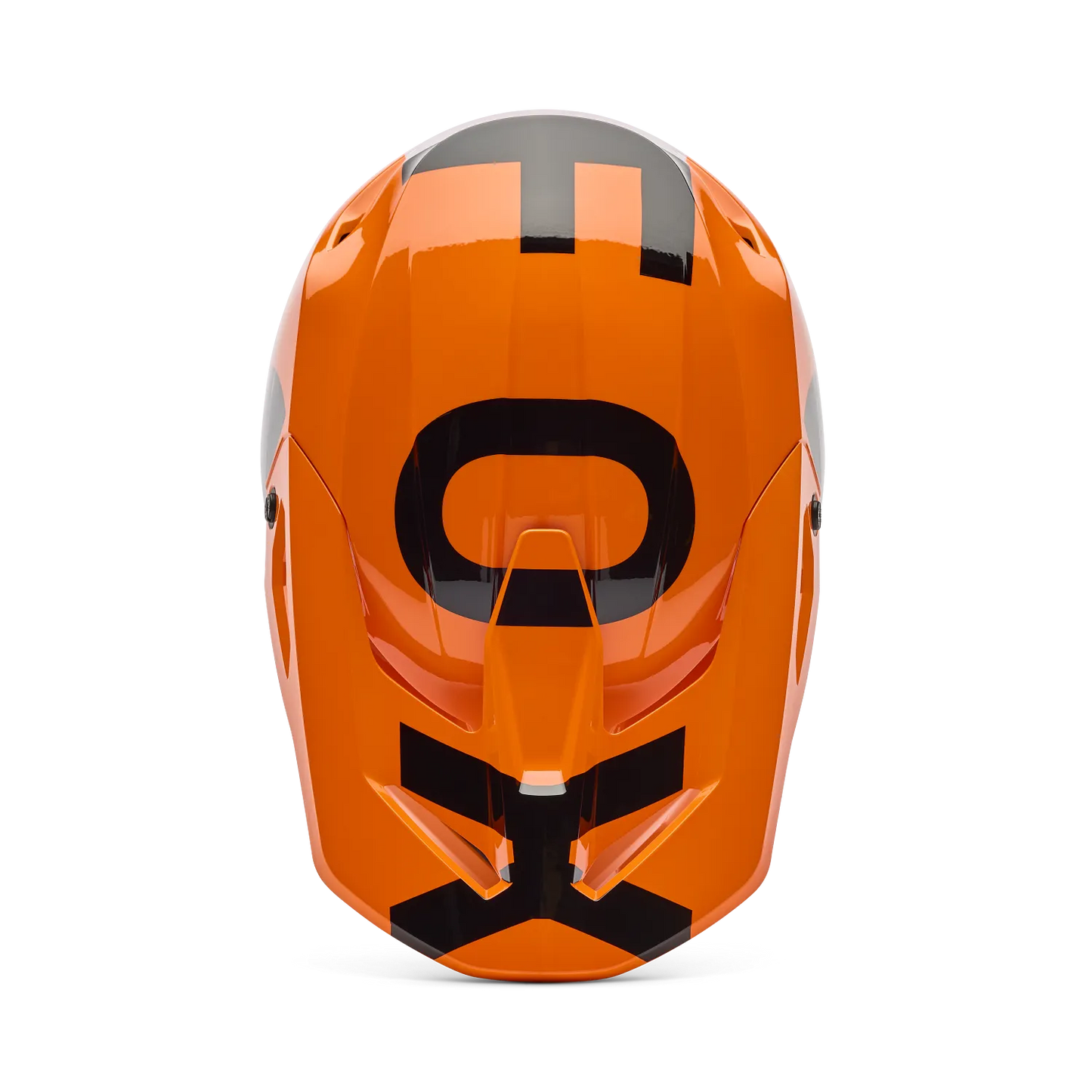

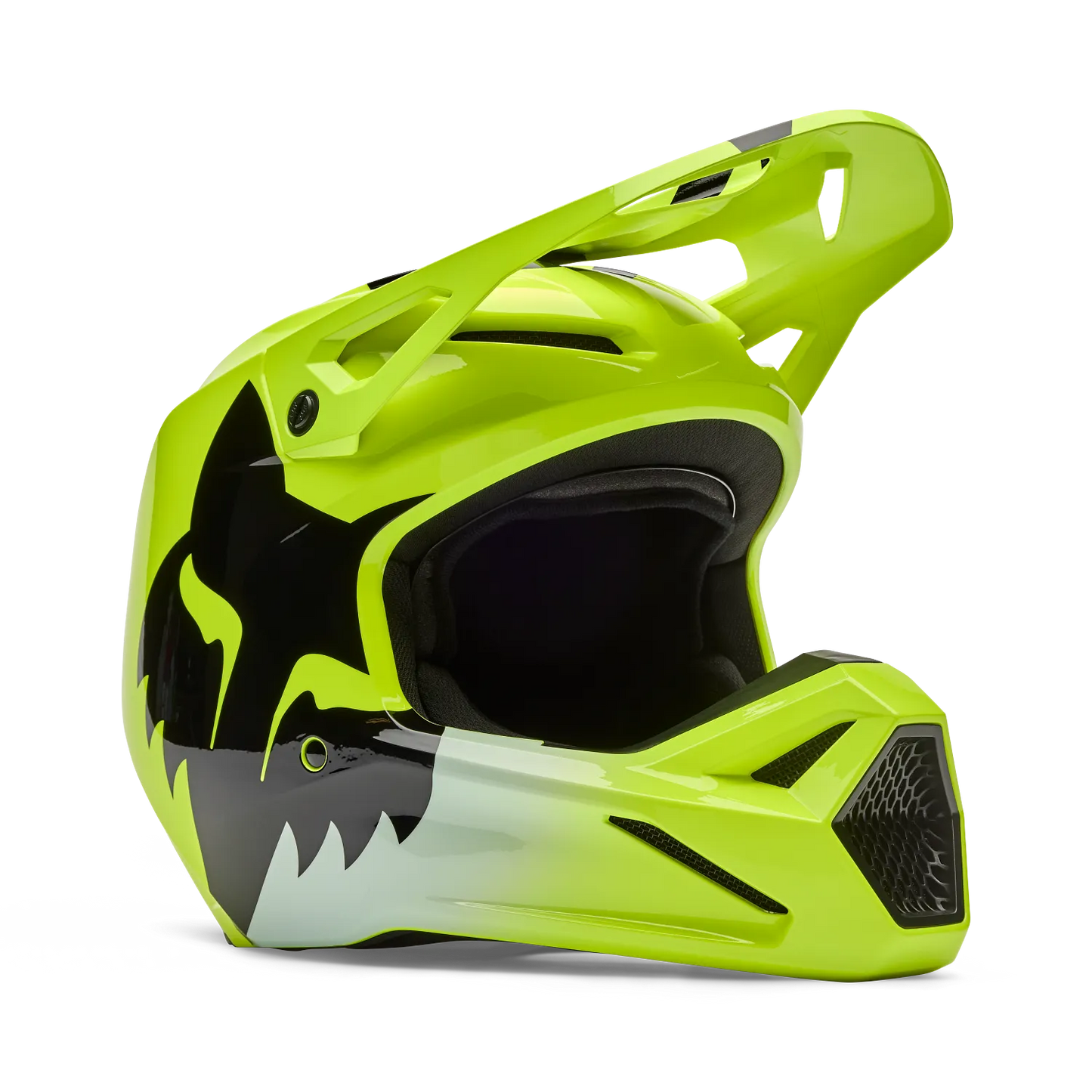

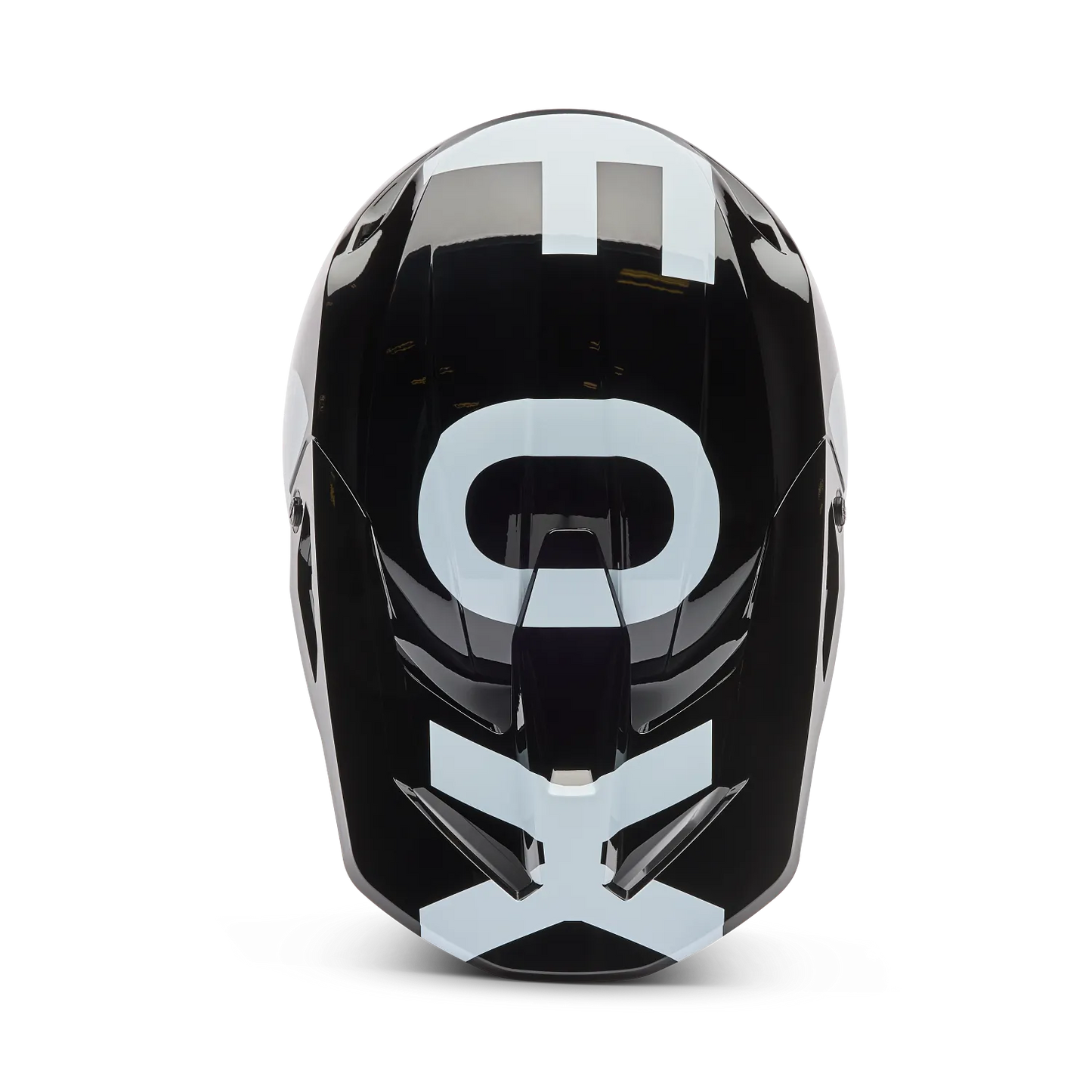

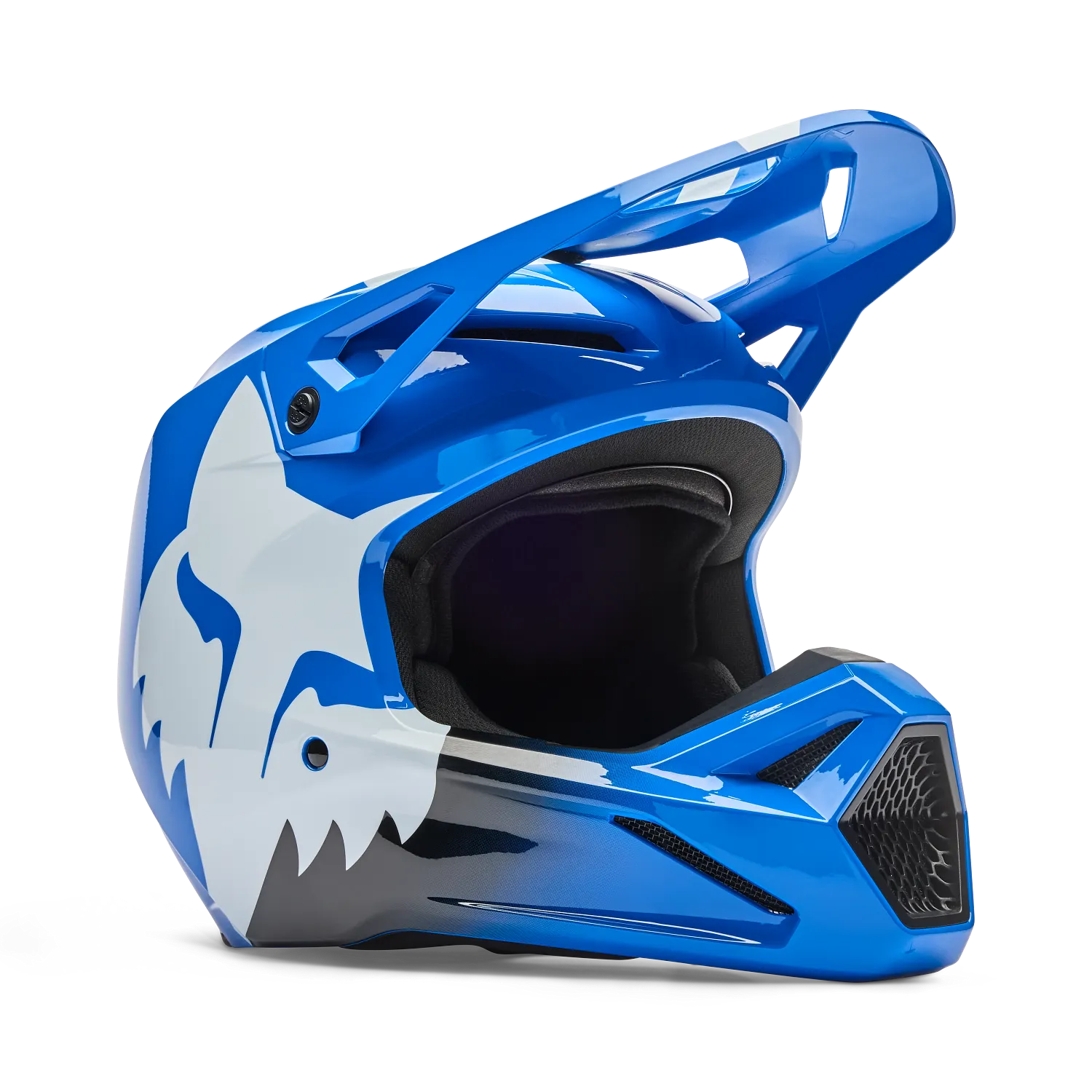

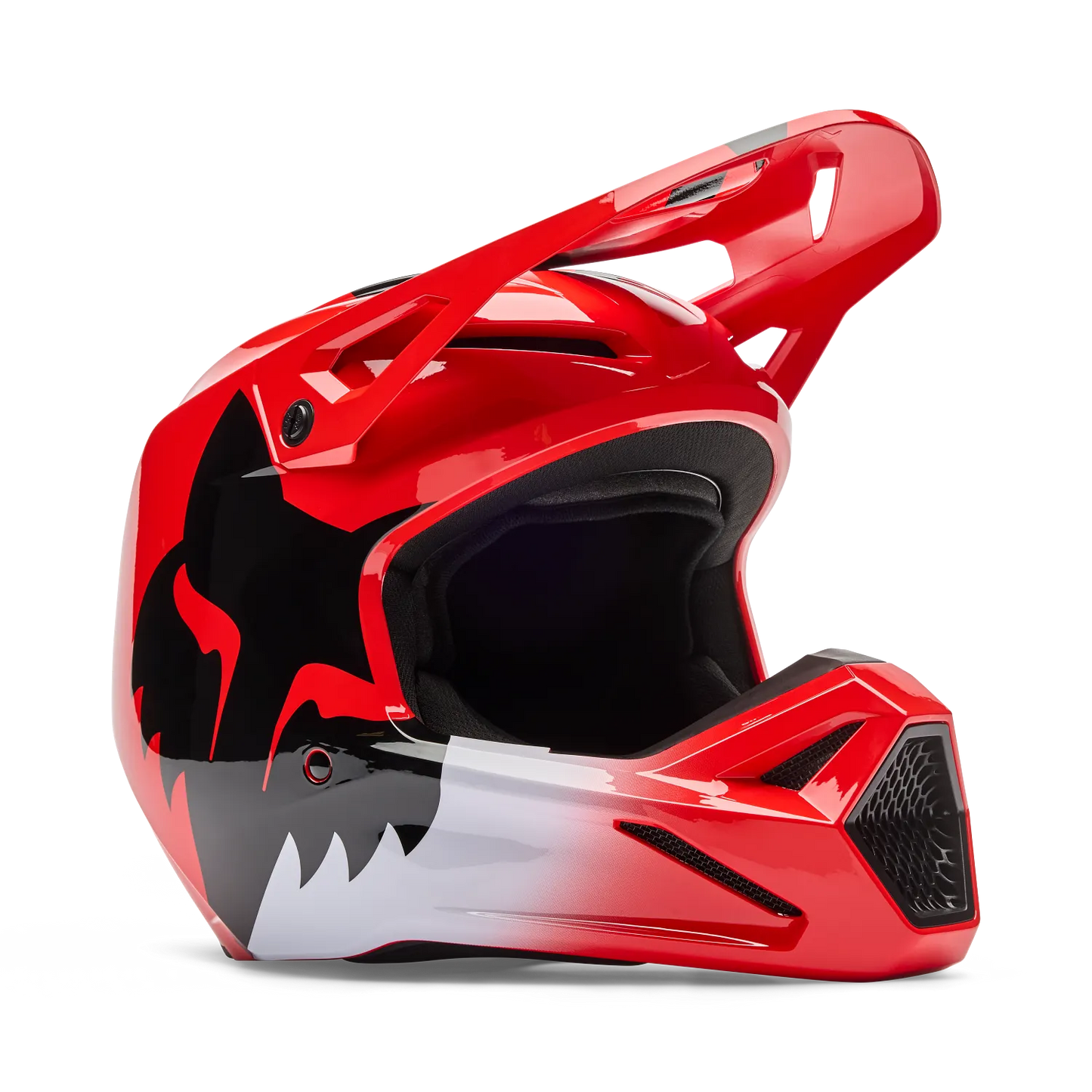

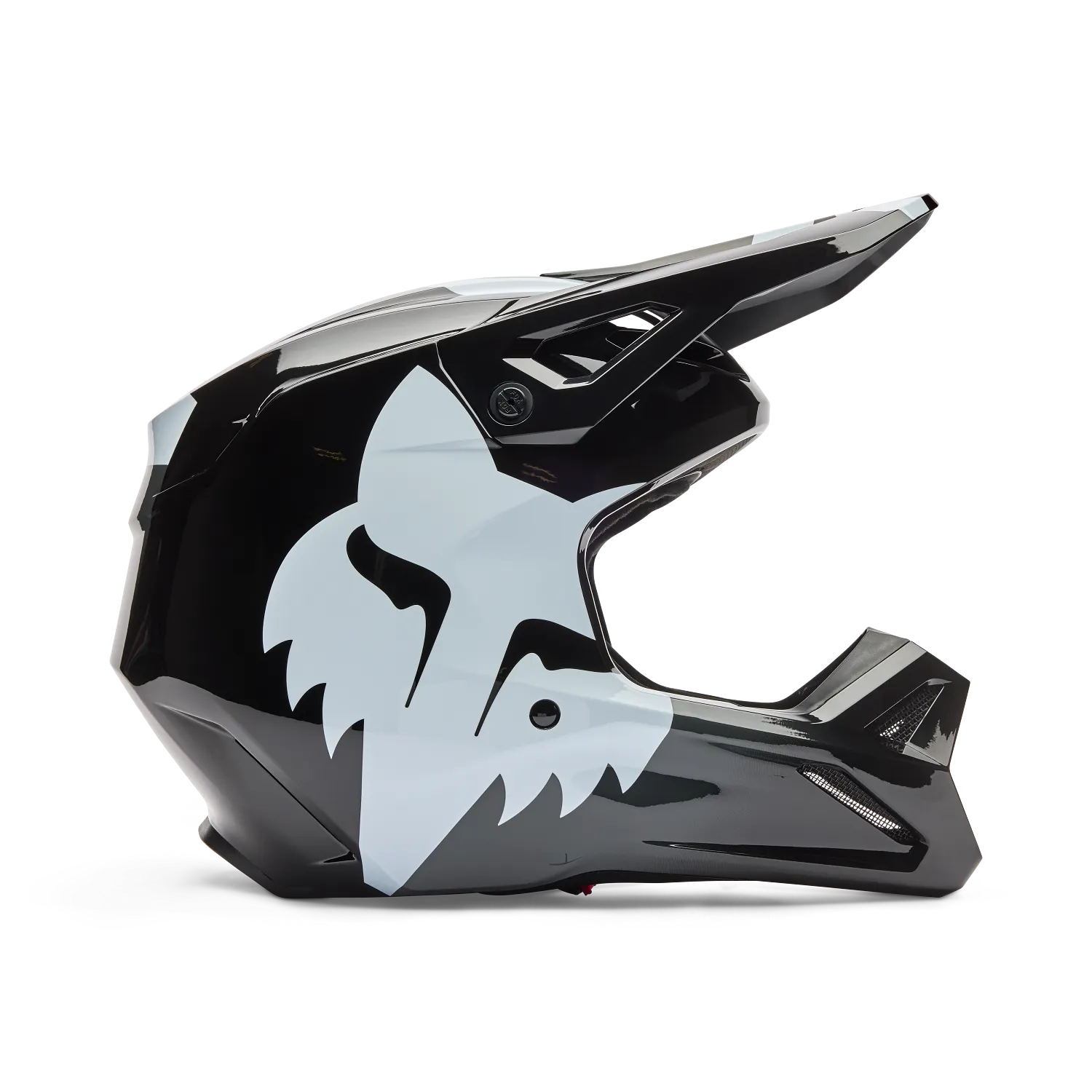

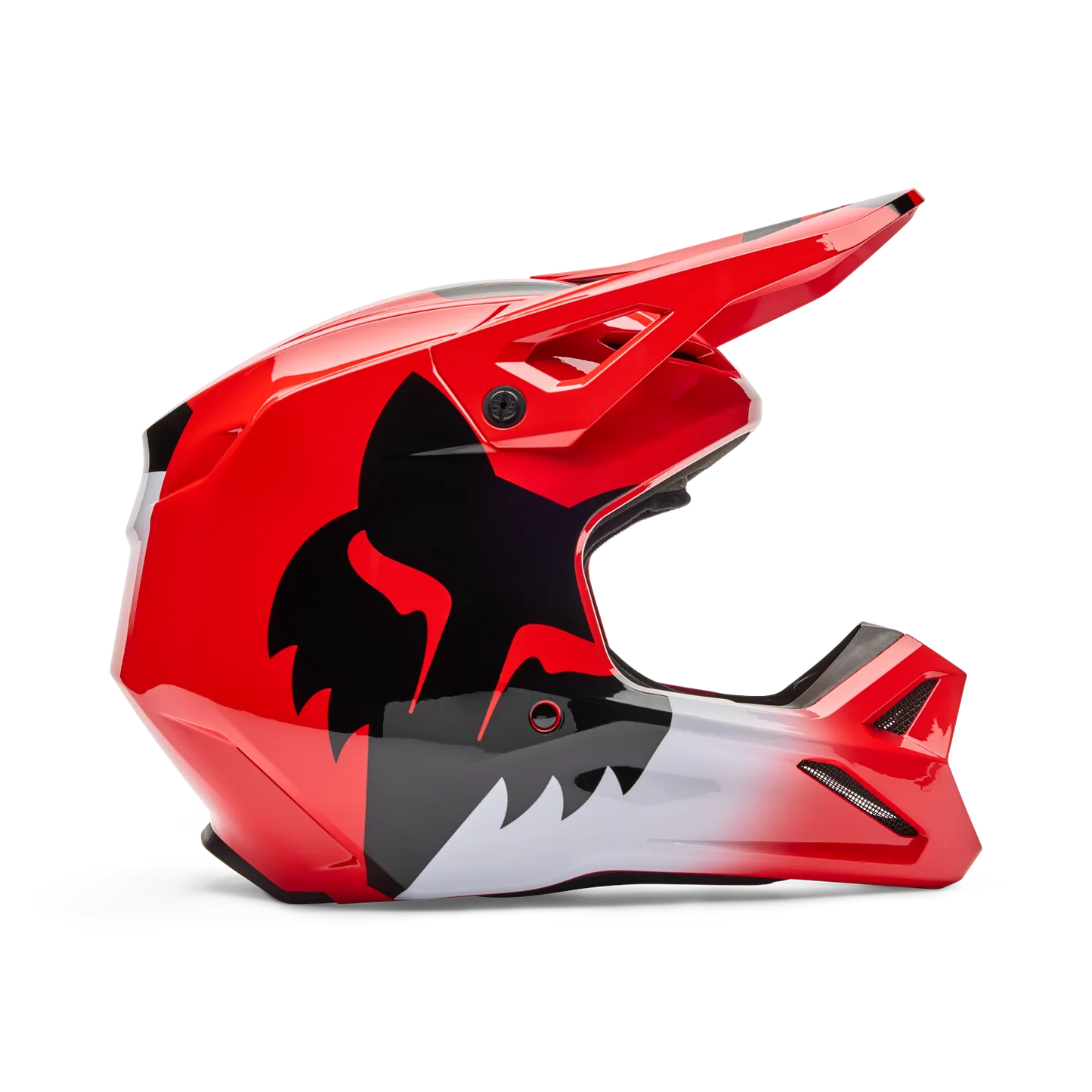

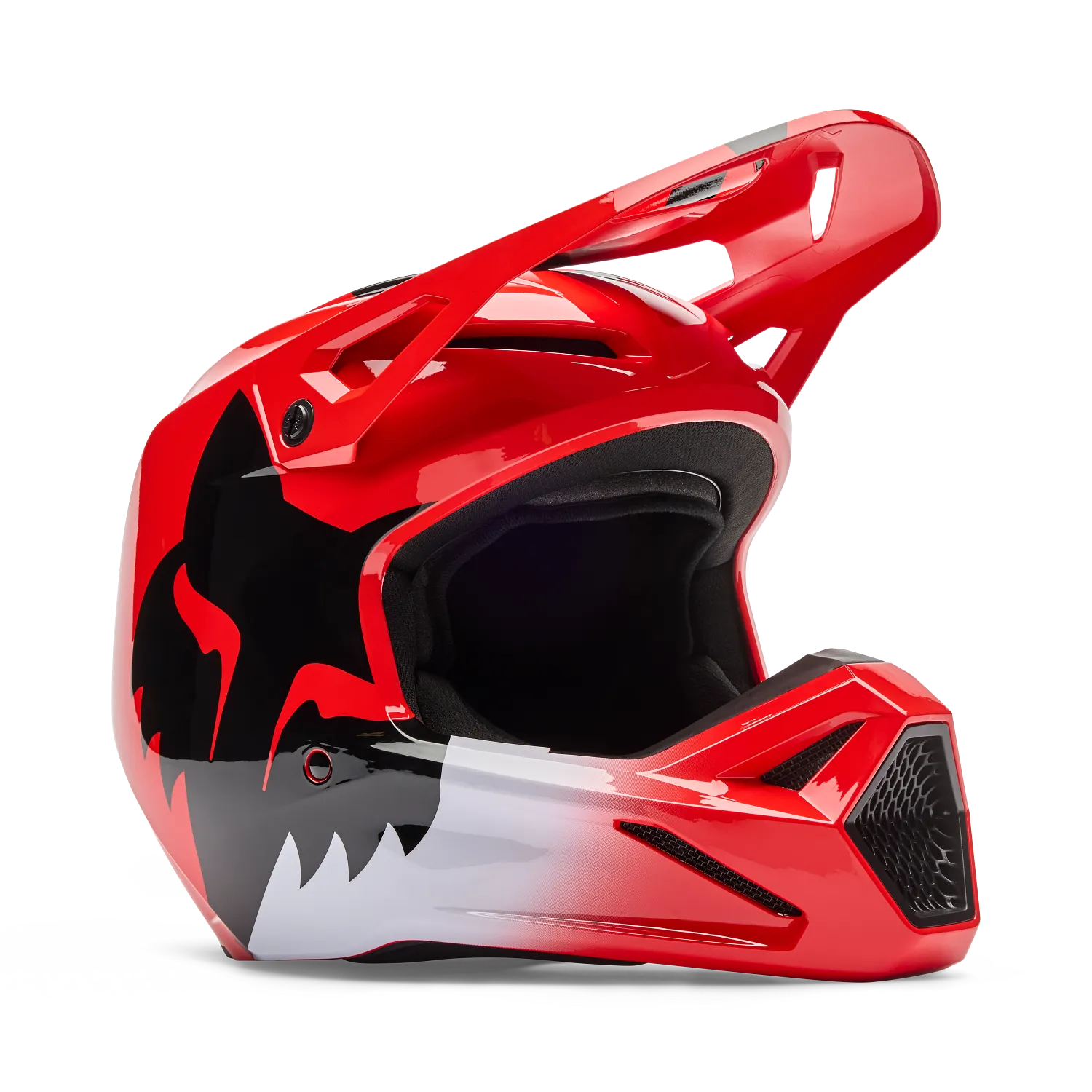

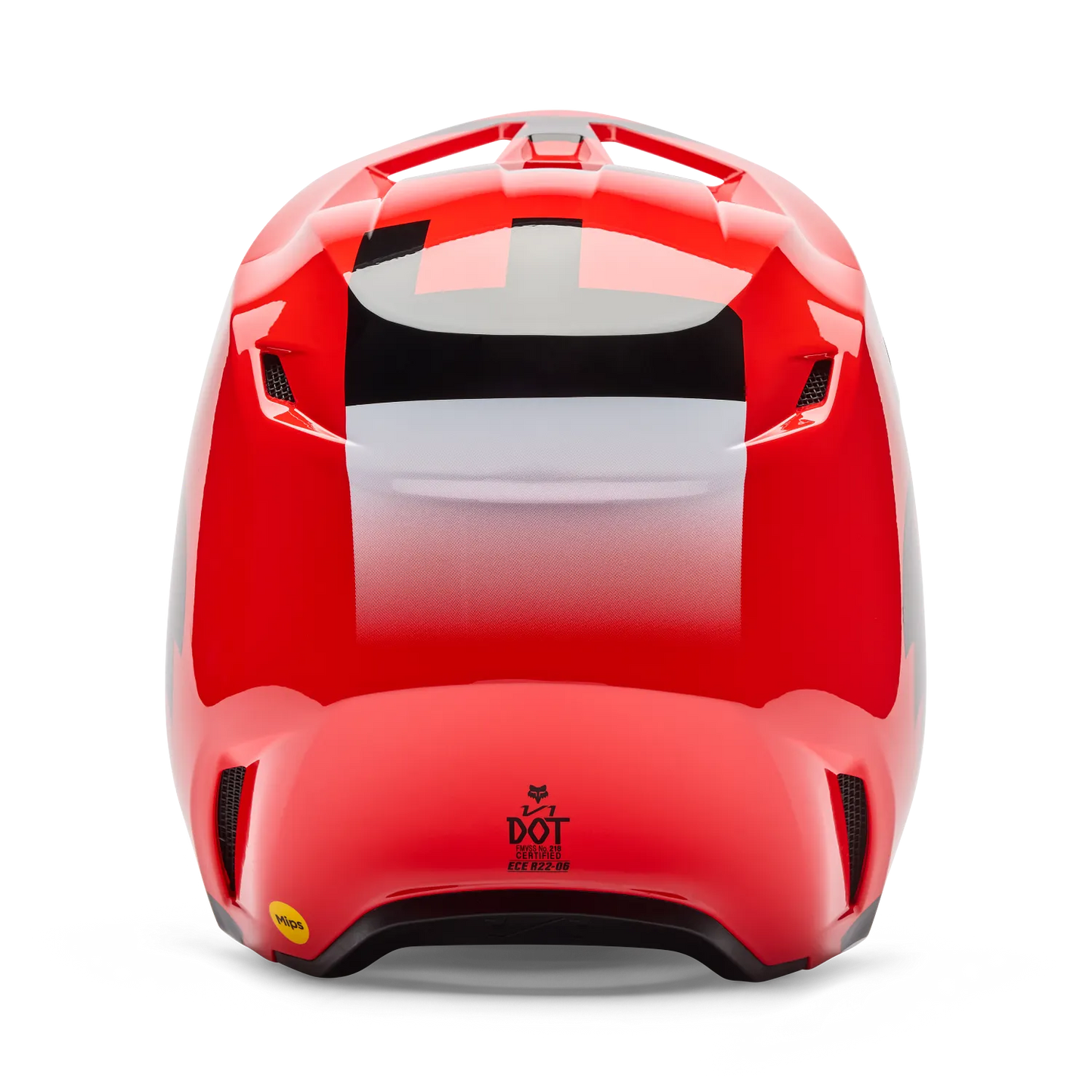

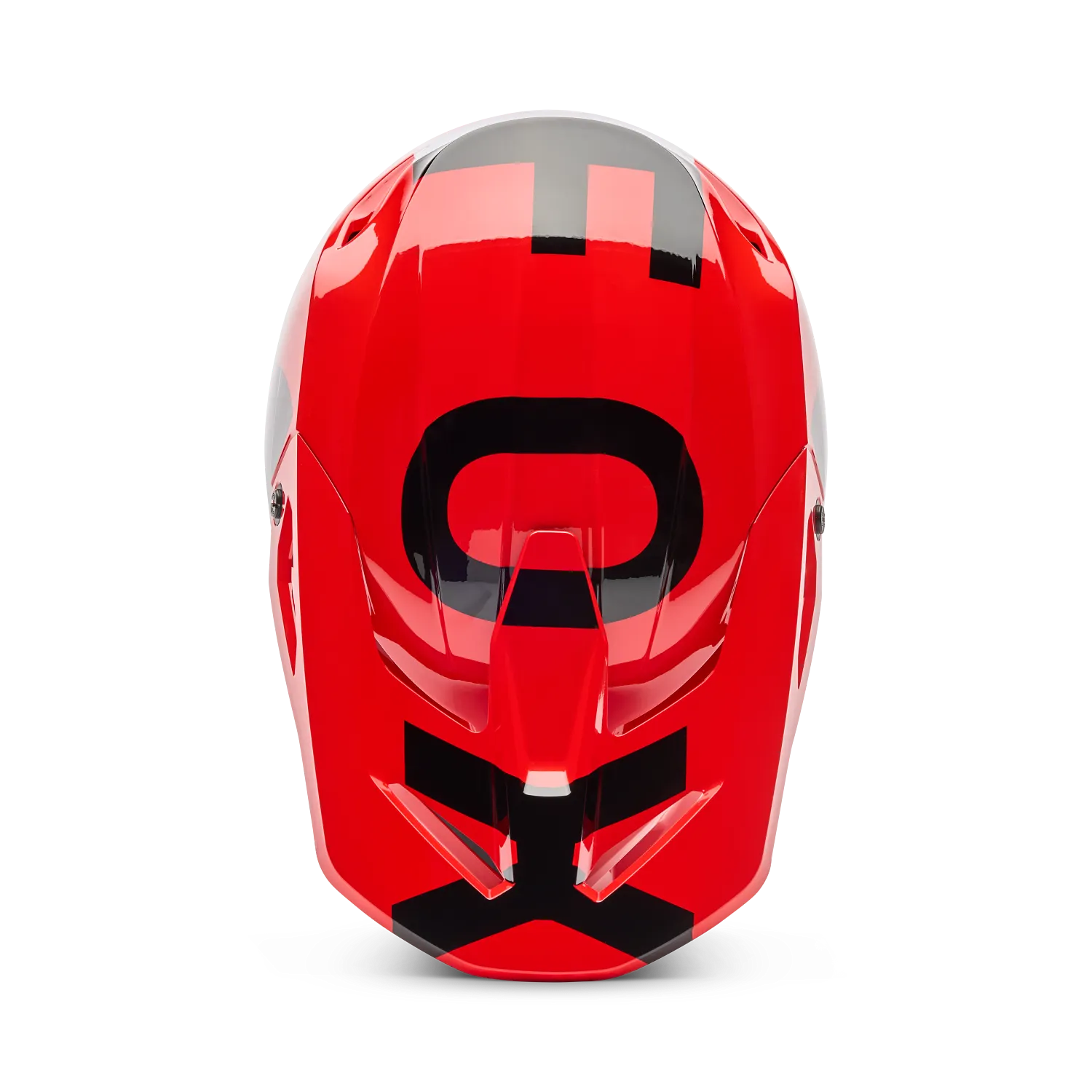

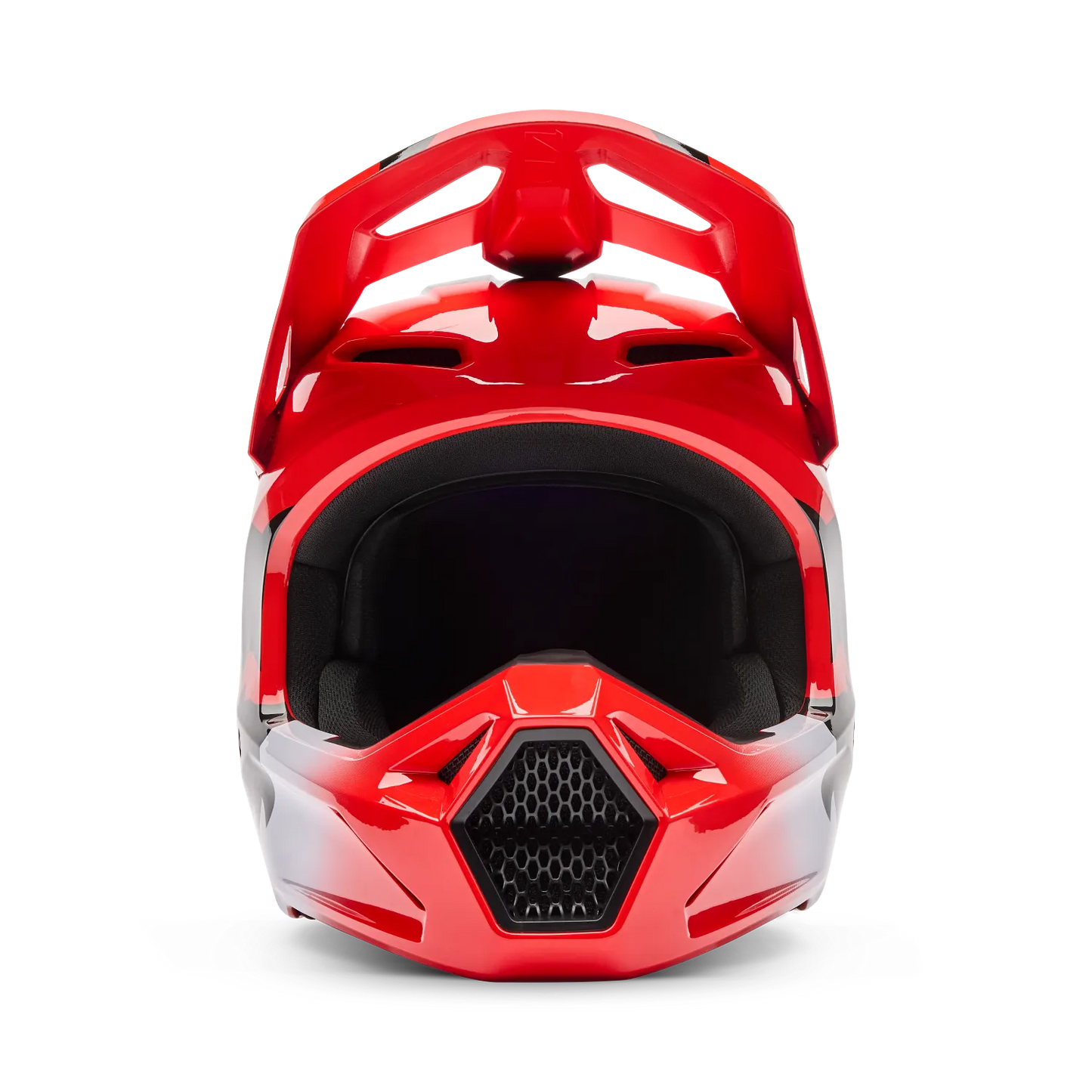

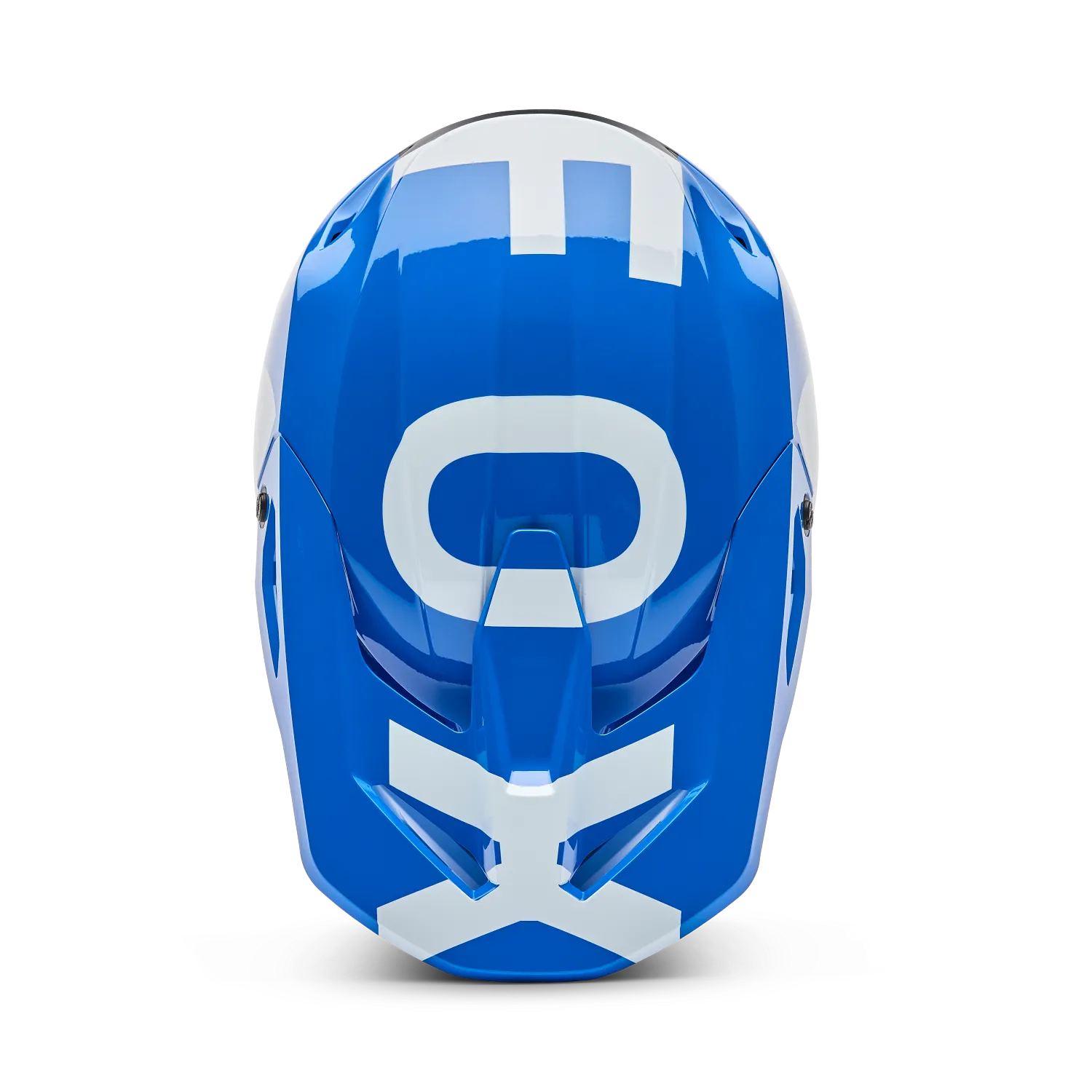

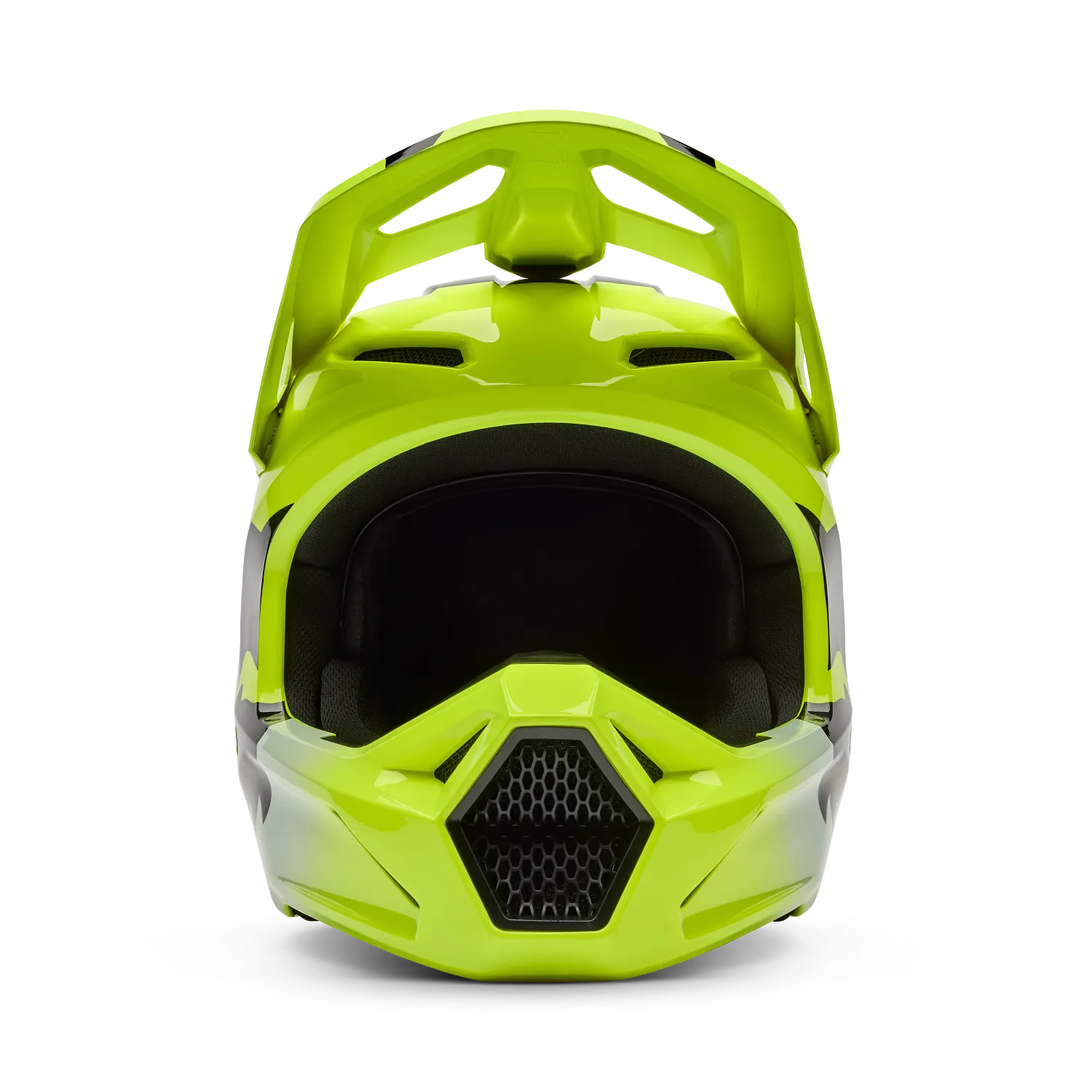

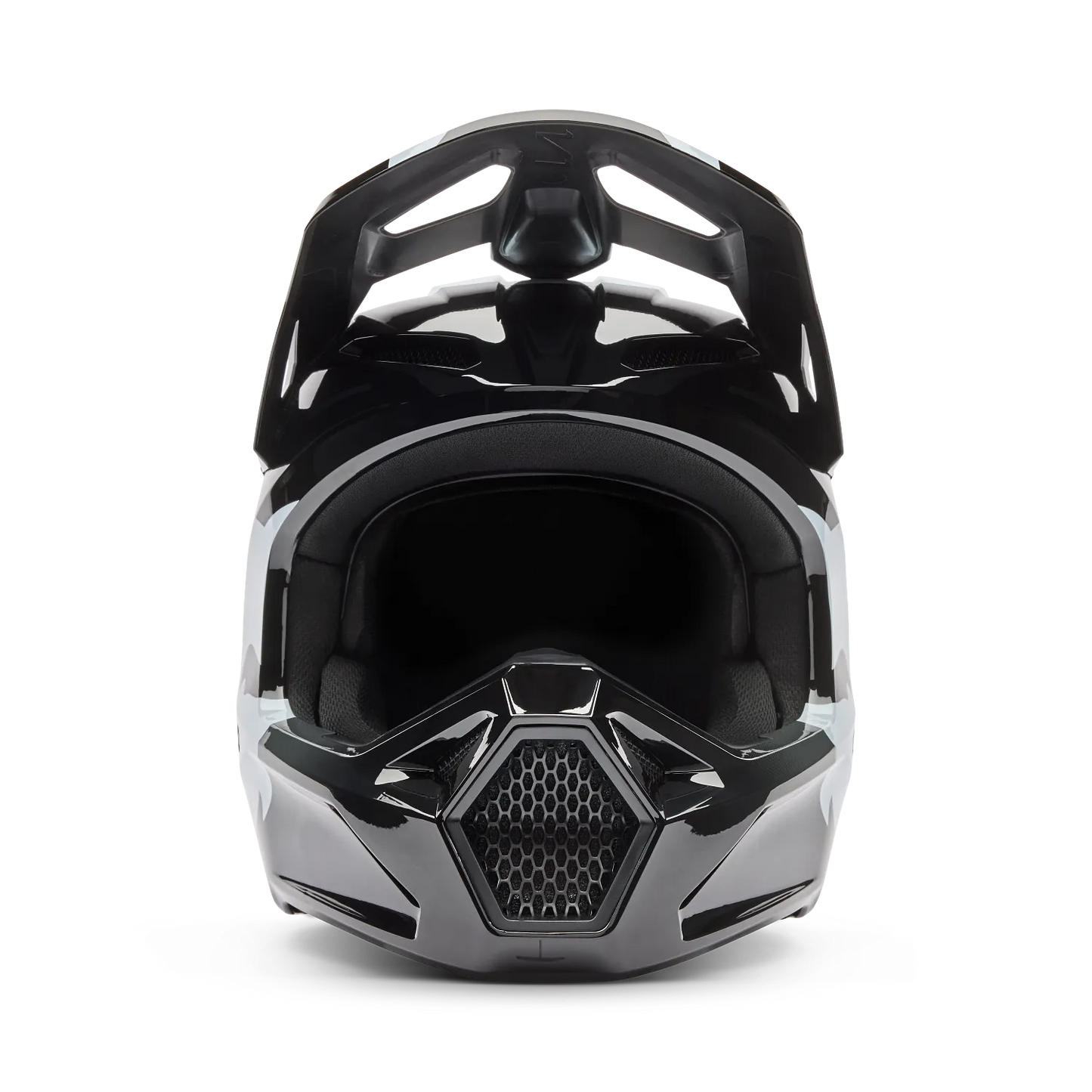

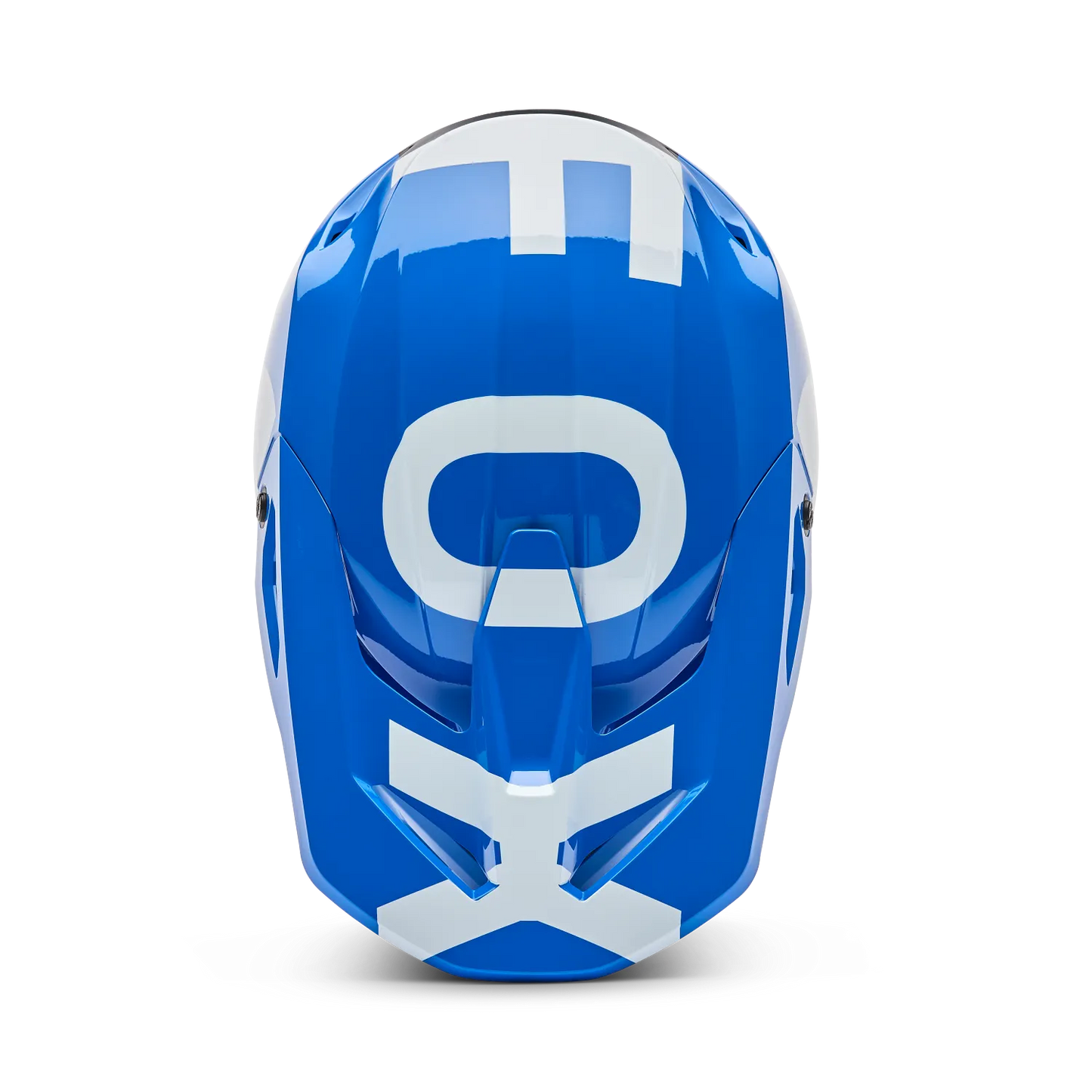

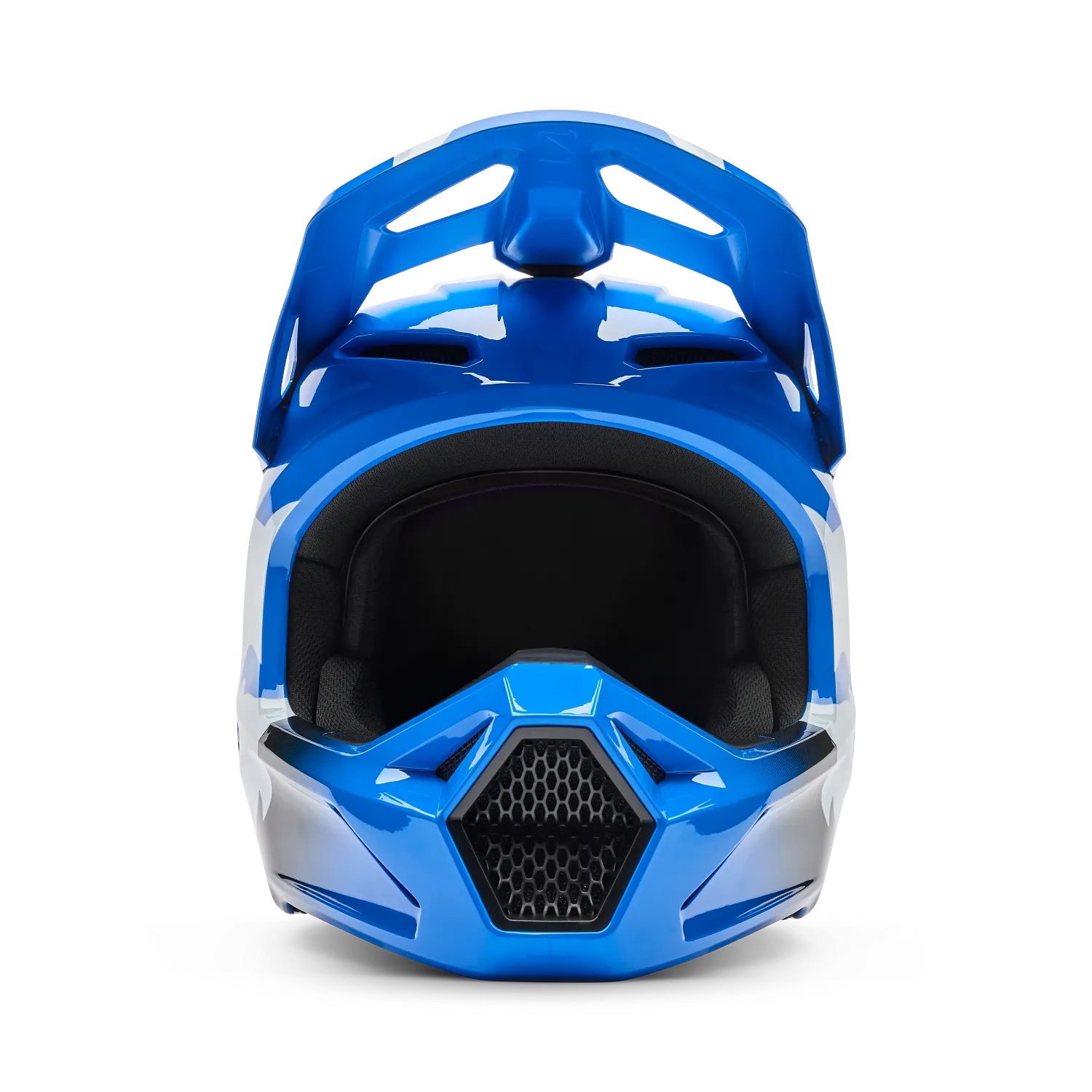

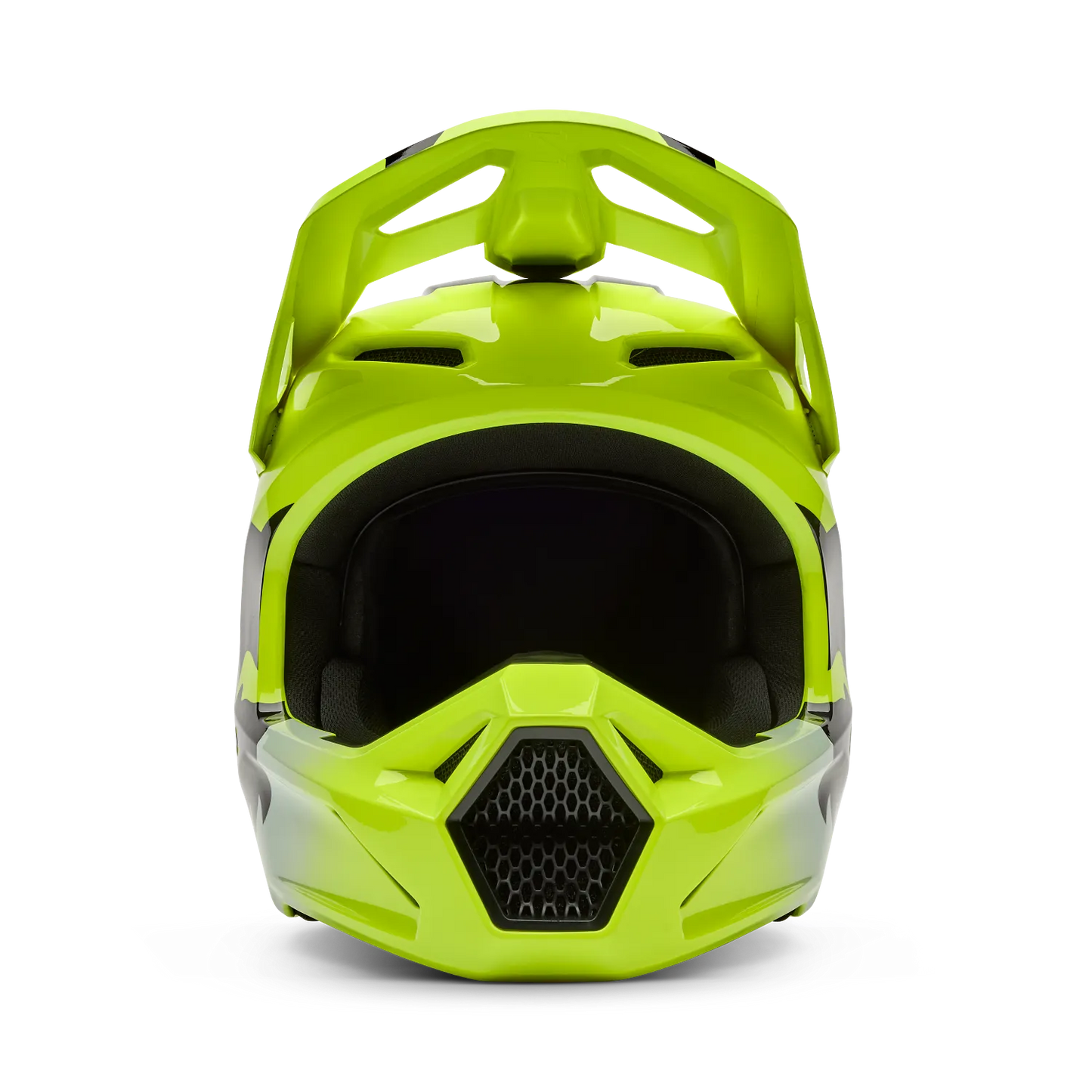

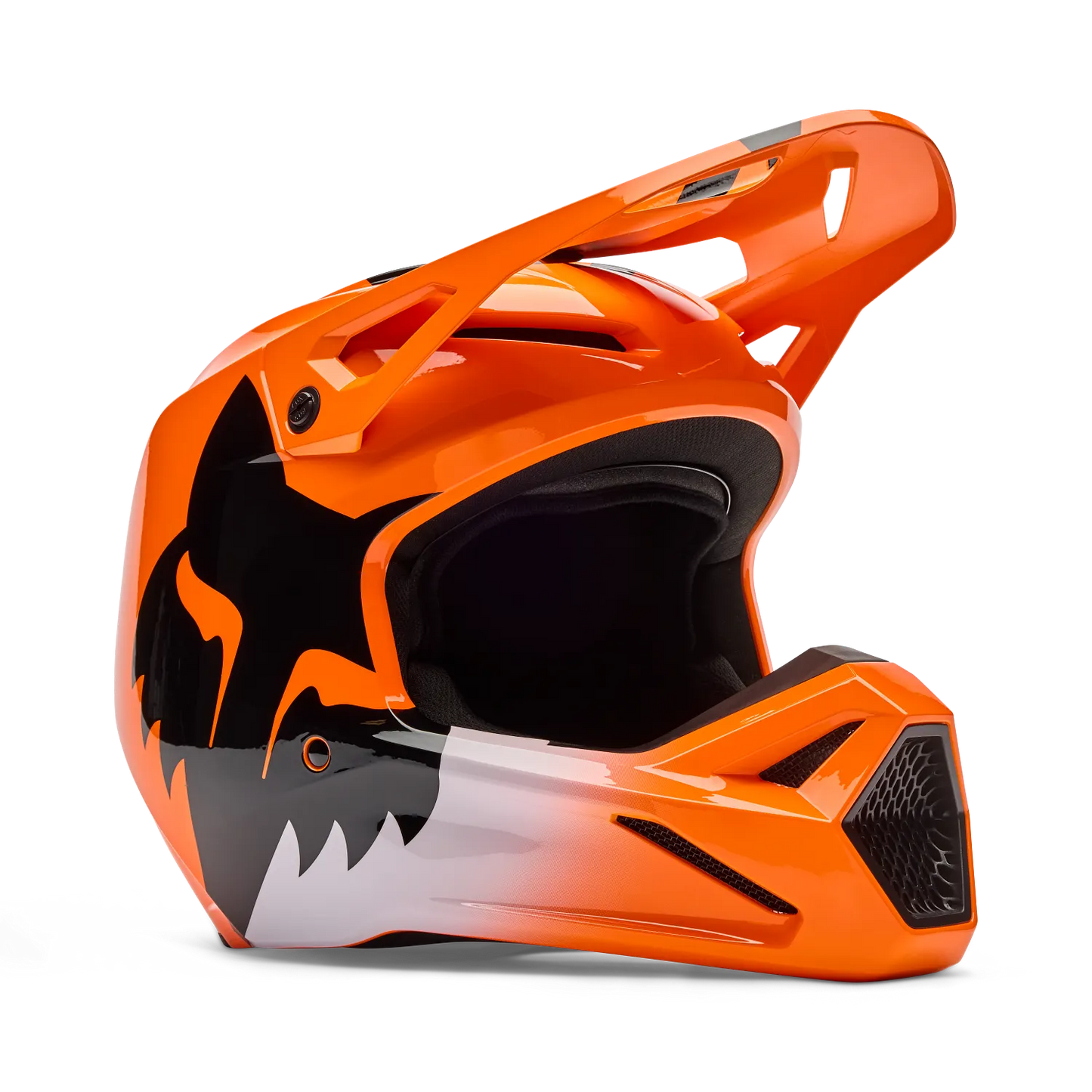

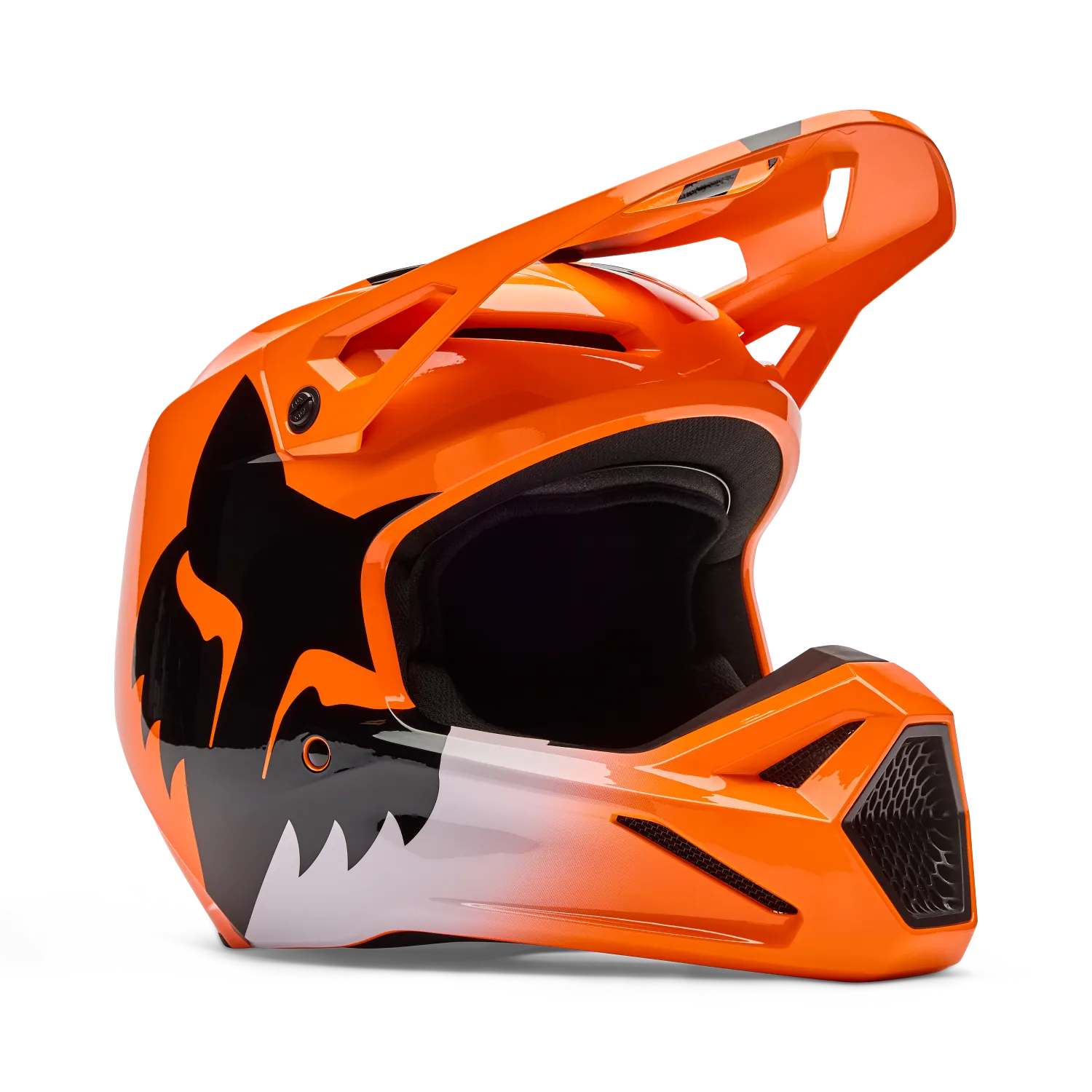

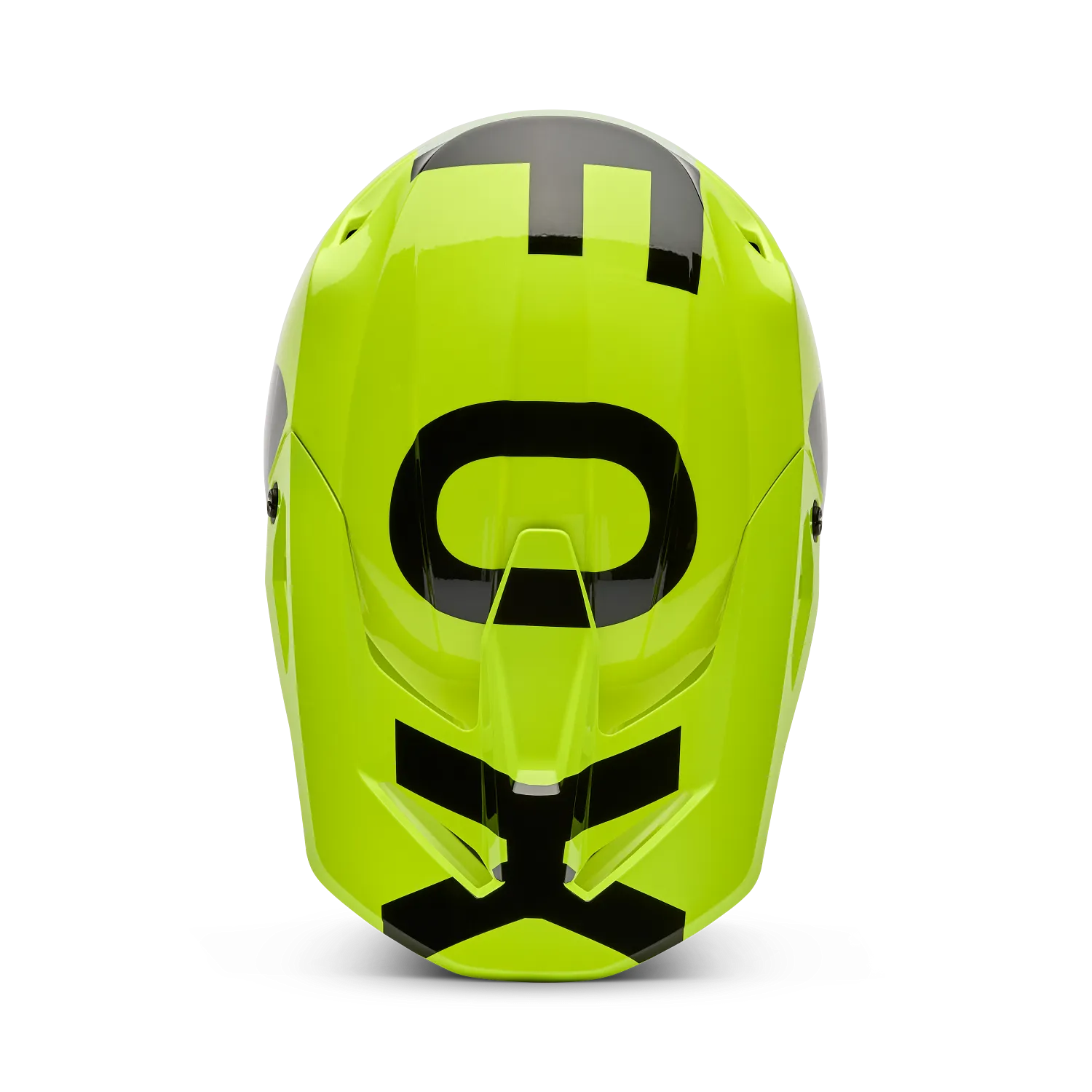

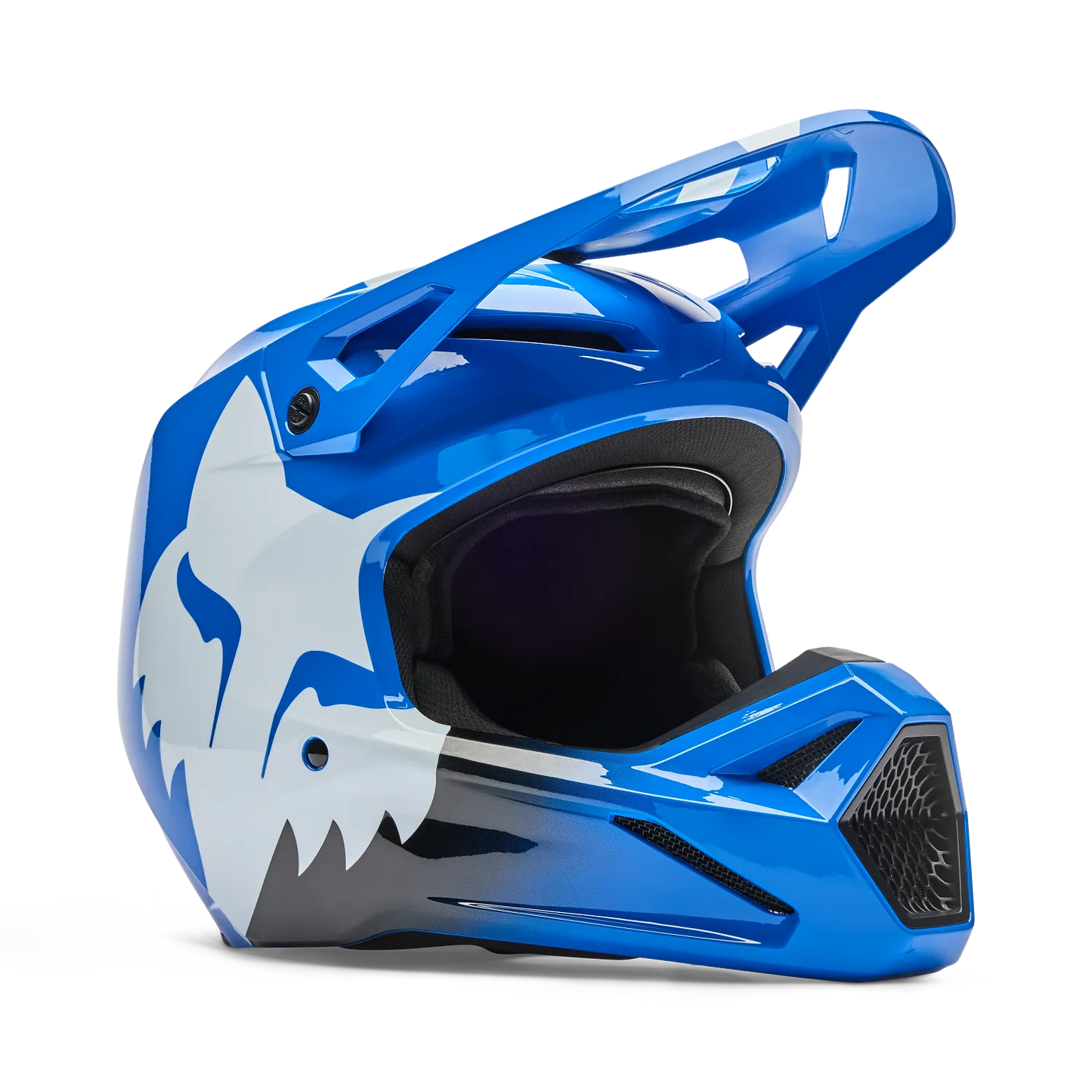

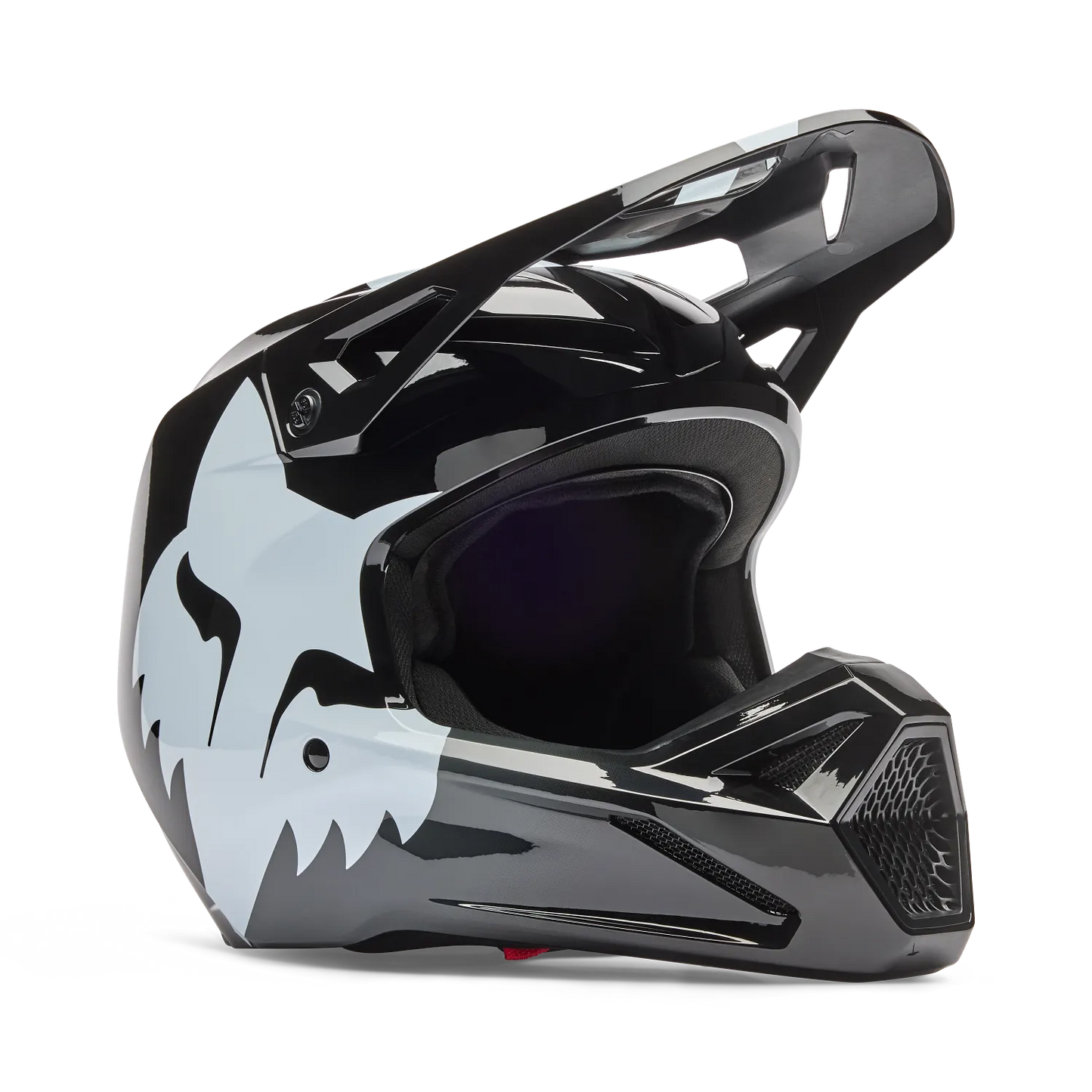

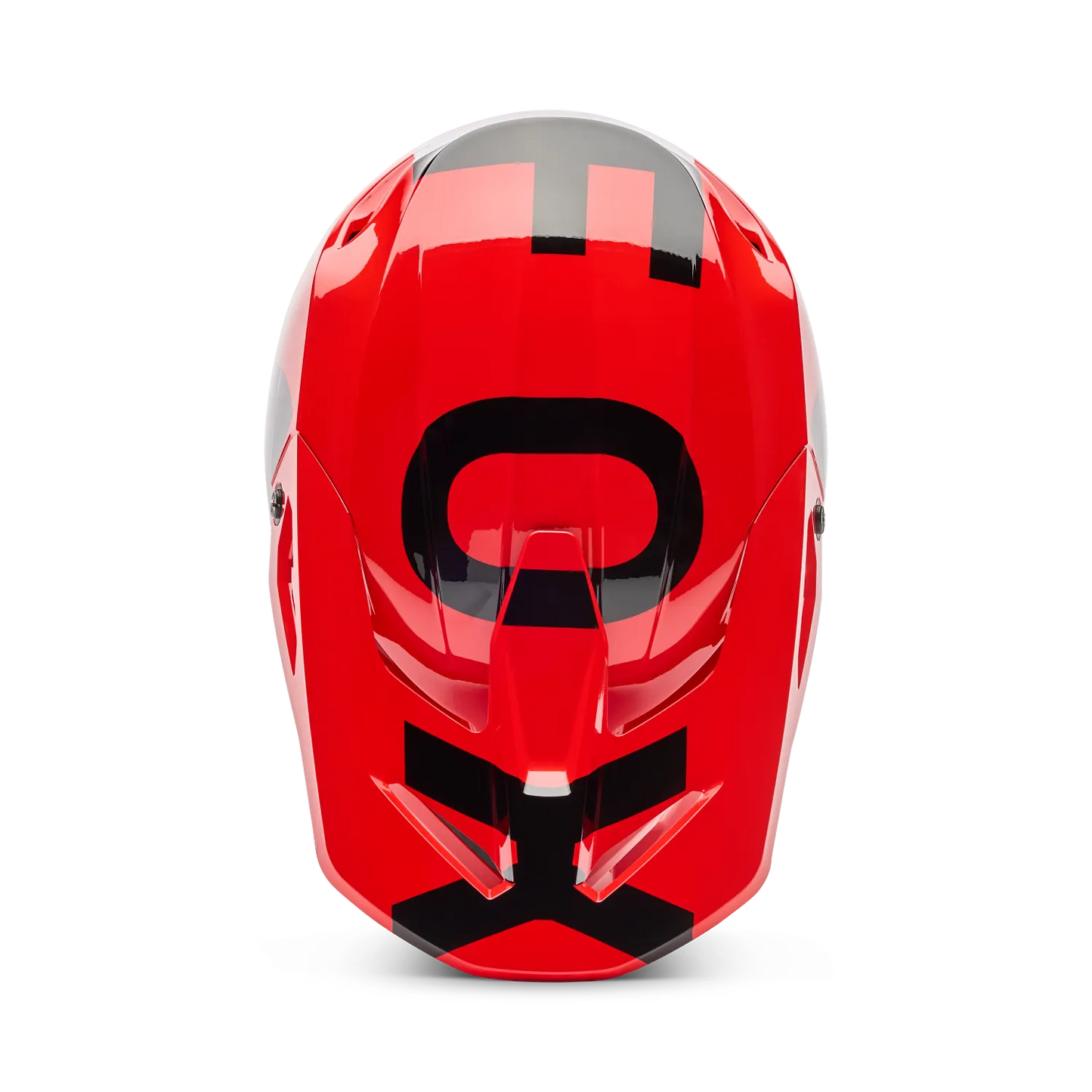

The FOX V1 Shield Helmet is a unisex full-face moto helmet built for riders who want key performance features in an entry-level package. It uses an injection molded polycarbonate and ABS shell construction that is intended to disperse energy in the event of a crash, and it is Mips equipped for added protection.
Construction
The helmet features a lightweight injection molded polycarbonate and ABS shell construction intended to disperse energy in the event of a crash. It also meets ECE 22.06 and DOT certifications.
Comfort
To help riders find a more precise fit, the V1 Shield Helmet is built around multiple shell and EPS size options. It is listed with 4 shell and 5 EPS sizes for a precise fit, and the size-and-fit notes also call out 5 shell and 5 EPS sizes. The helmet is available in sizes XS-XXL, with youth sizing also referenced separately.
Ventilation

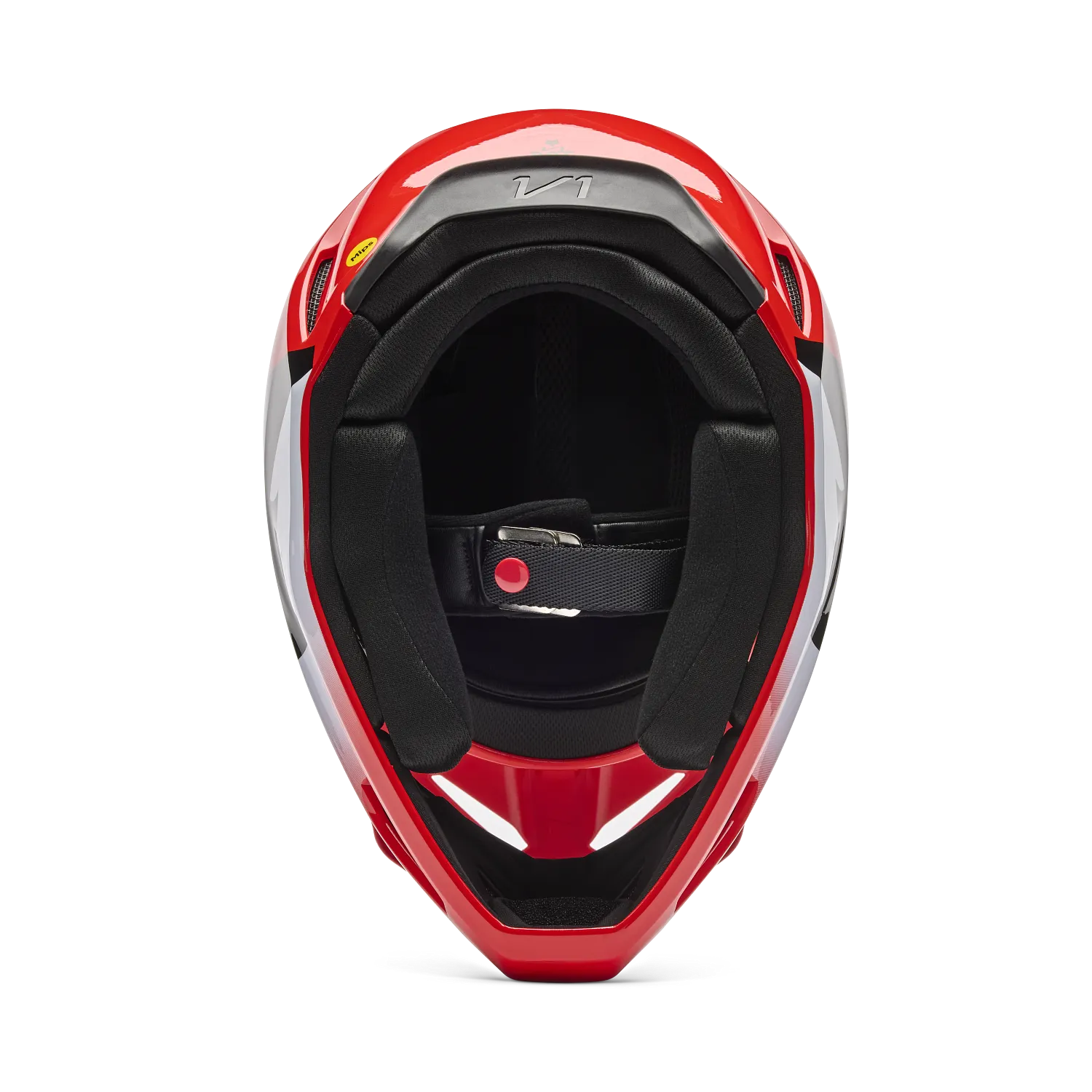

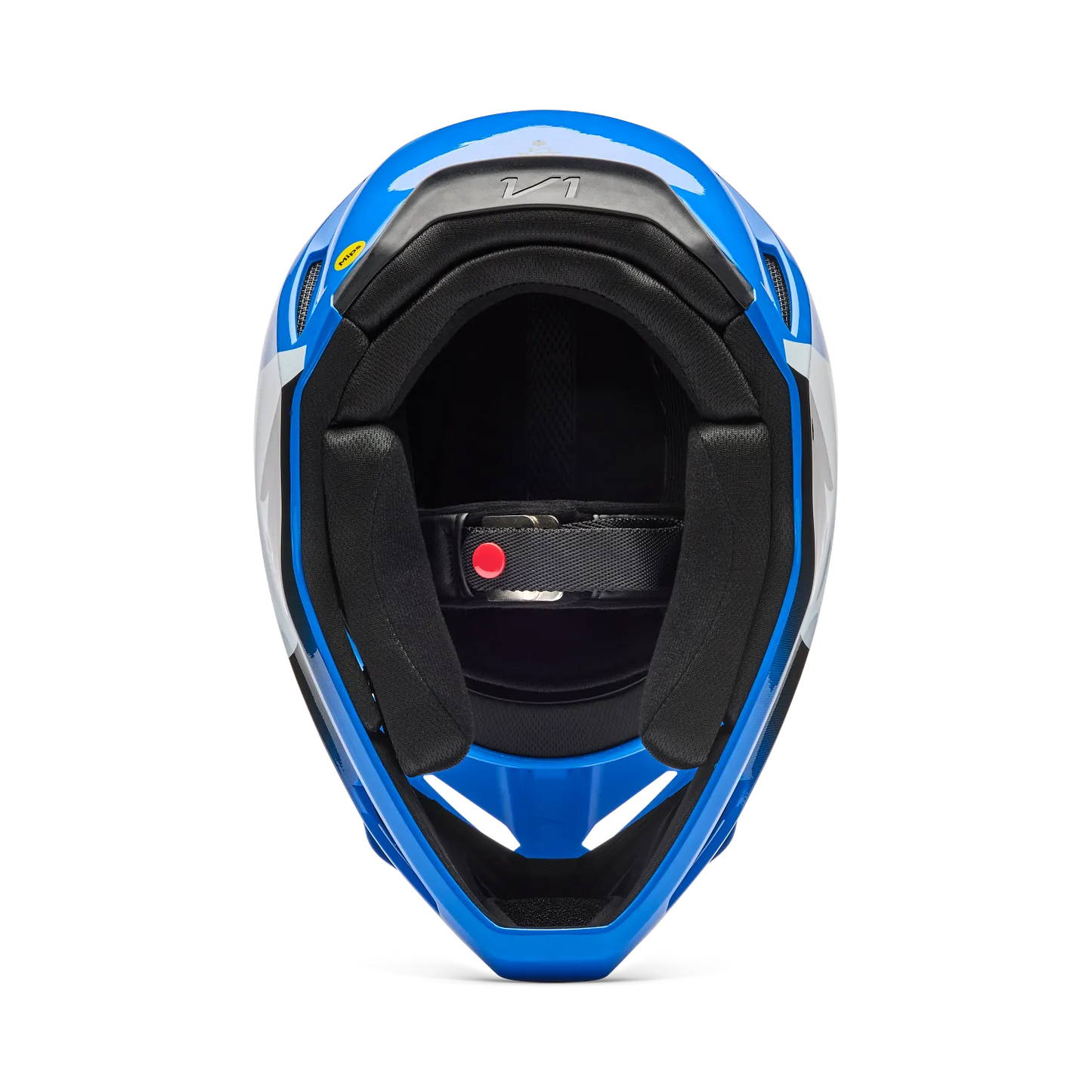

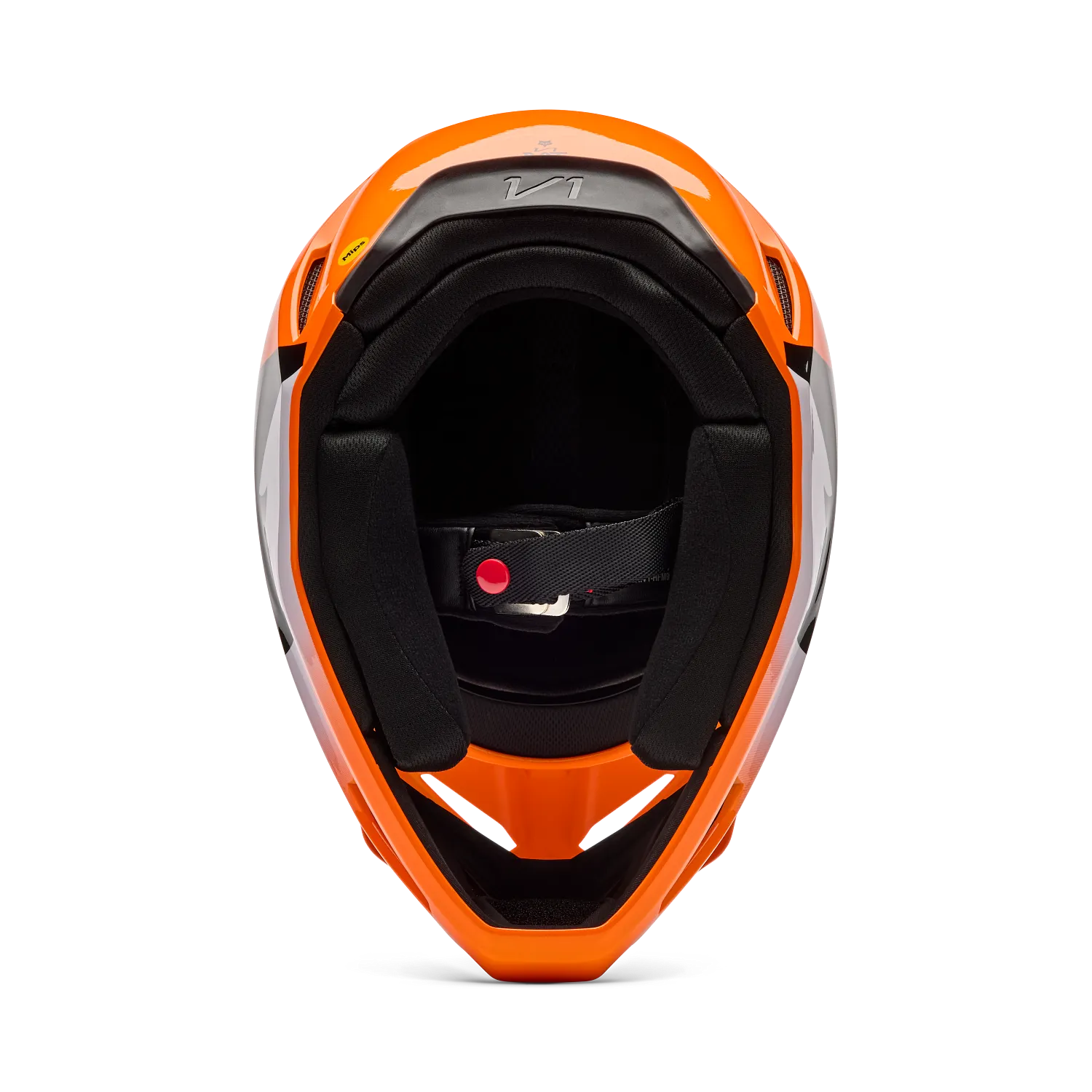

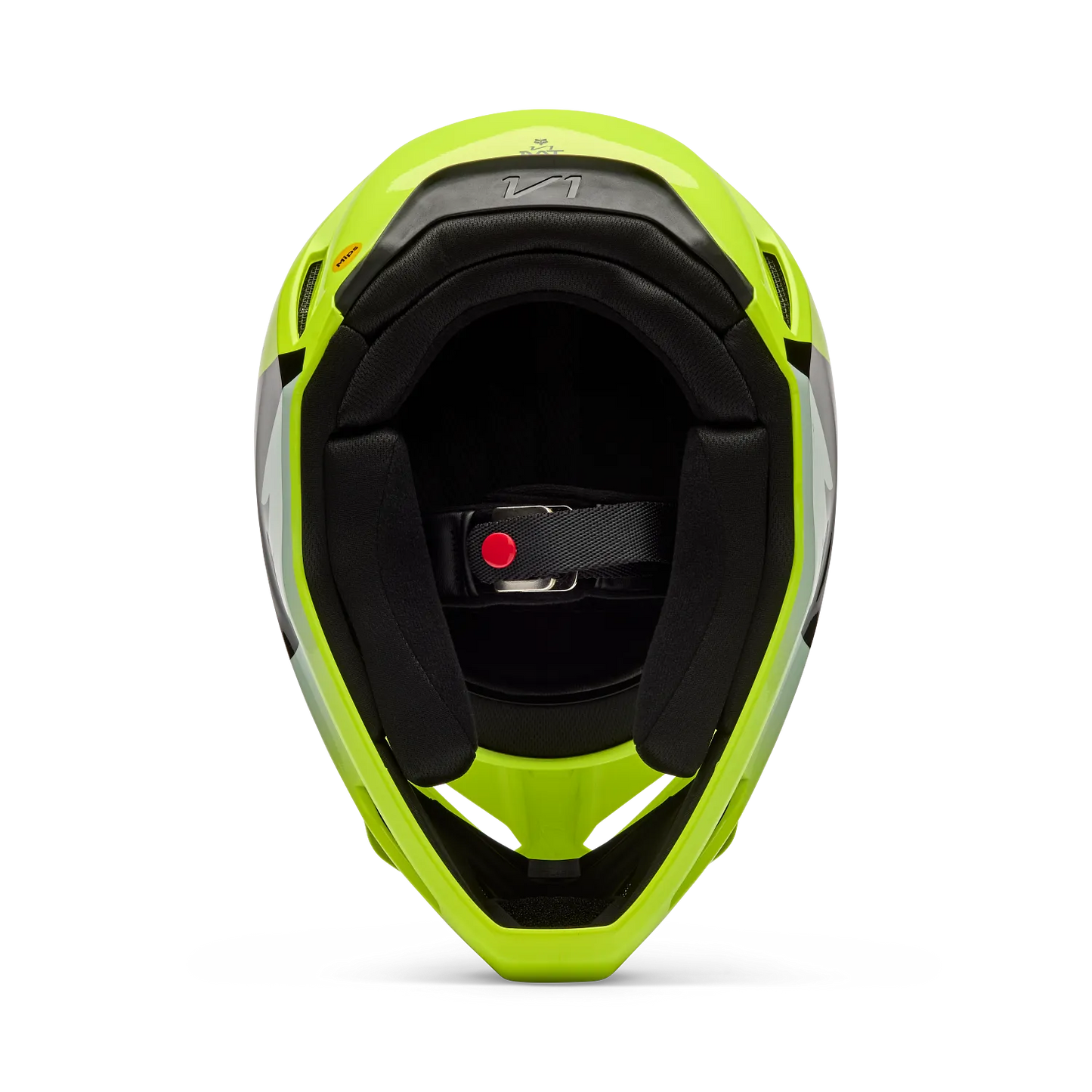

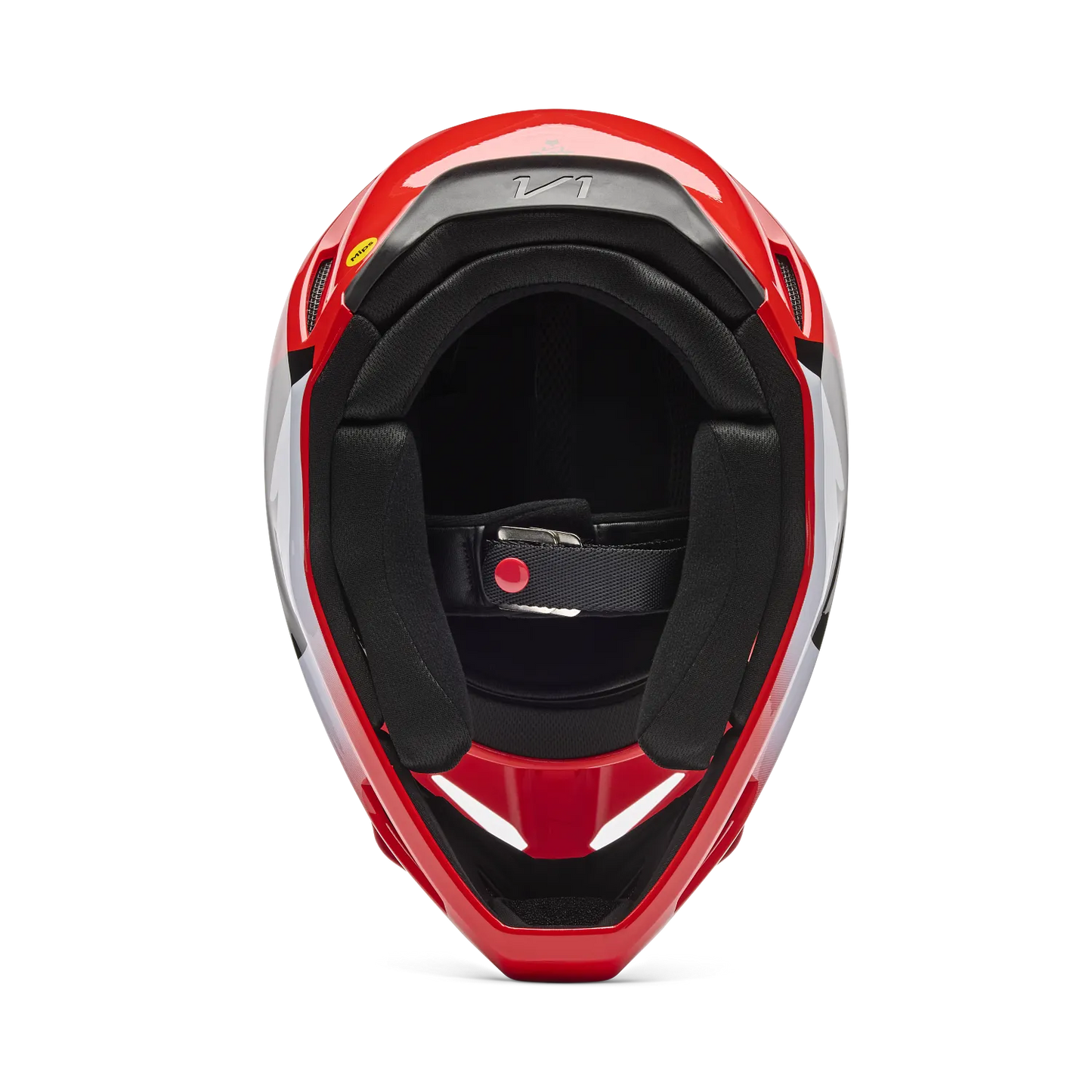

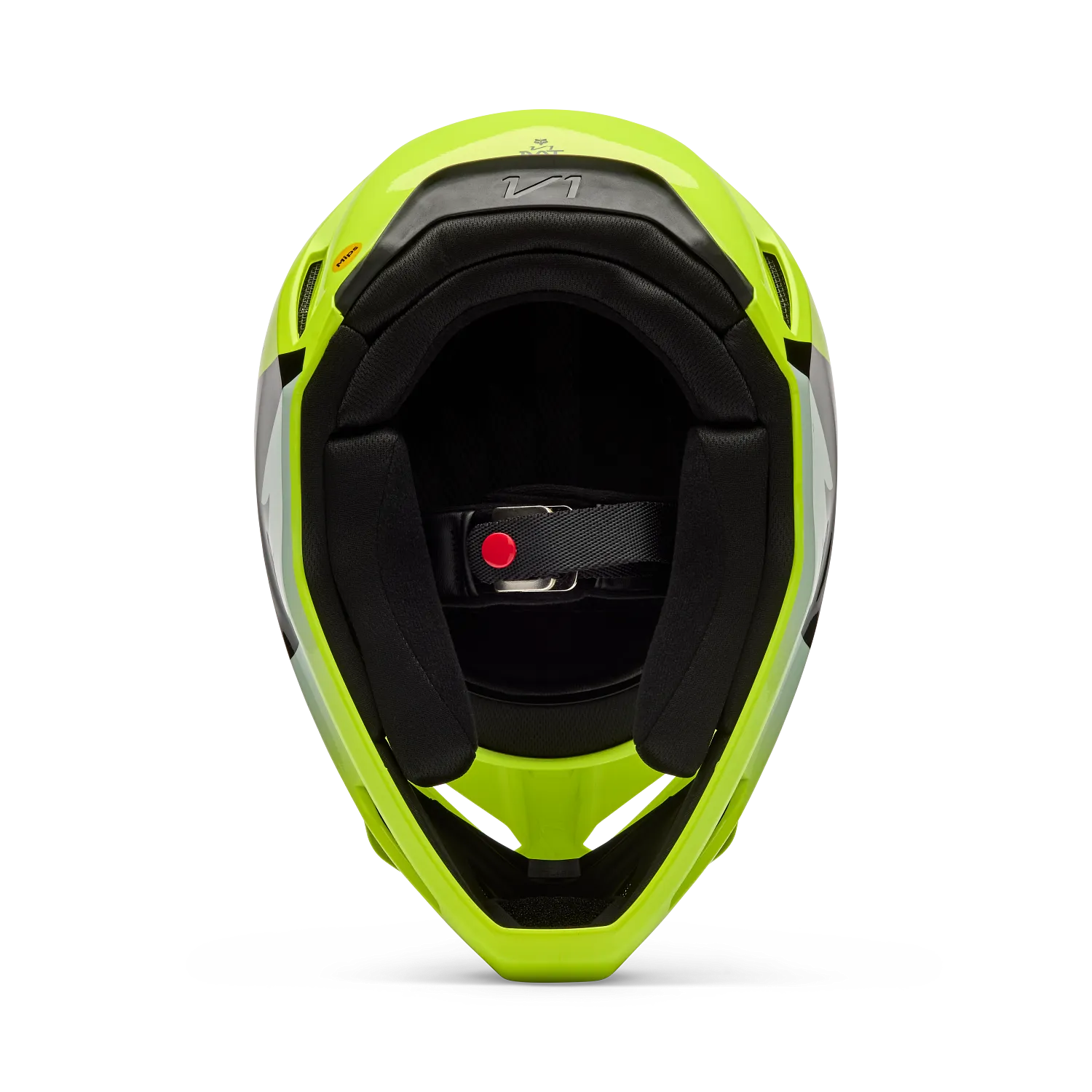

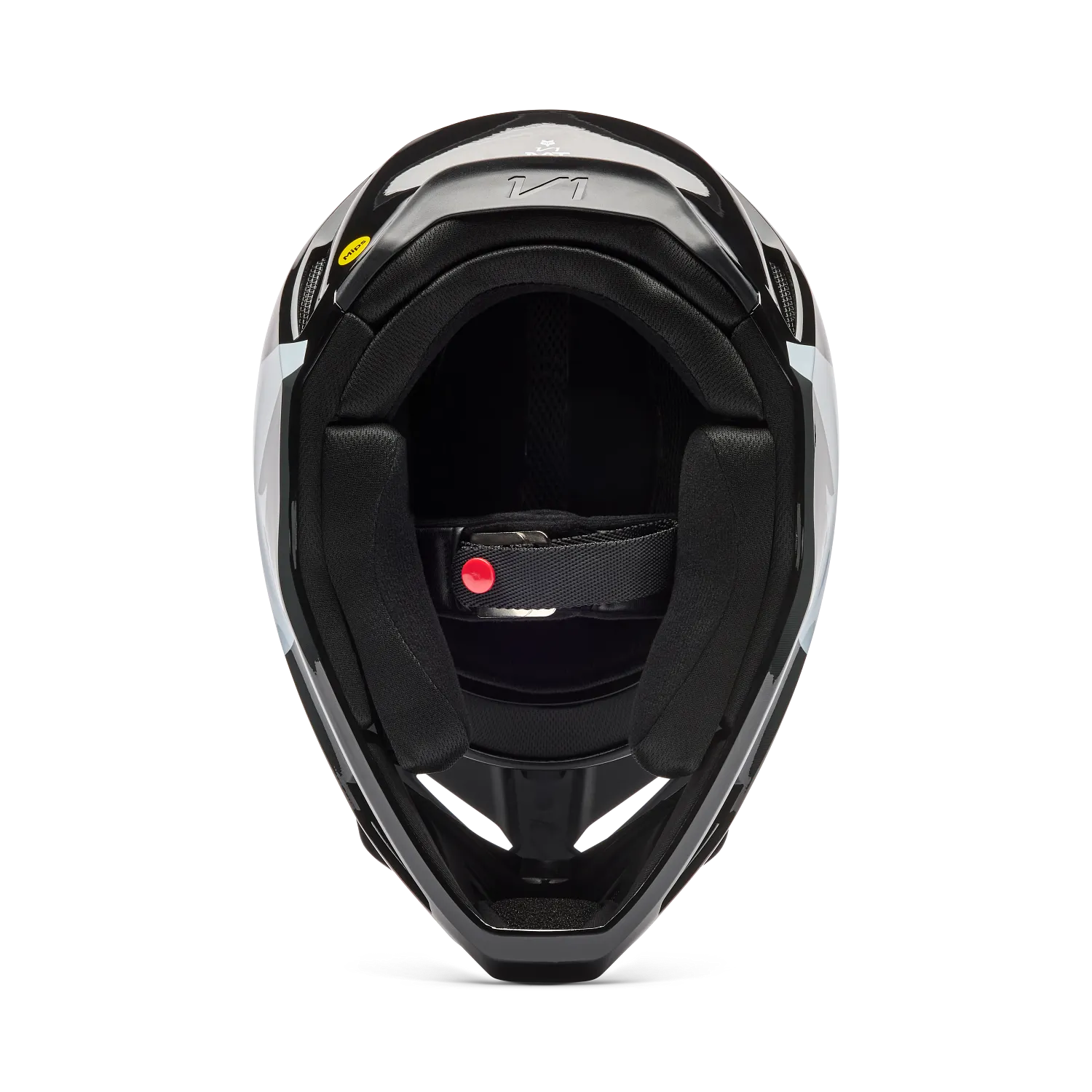

For comfort on the bike, the interior uses a removable and washable comfort liner and cheek pads for easier upkeep between rides. Venting is handled through 7 intake and 4 exhaust vents for optimum airflow, and the chin area includes a padded EVA chinbar. A removable mouth vent cover lets the front vent area be configured to rider preference.
Shield

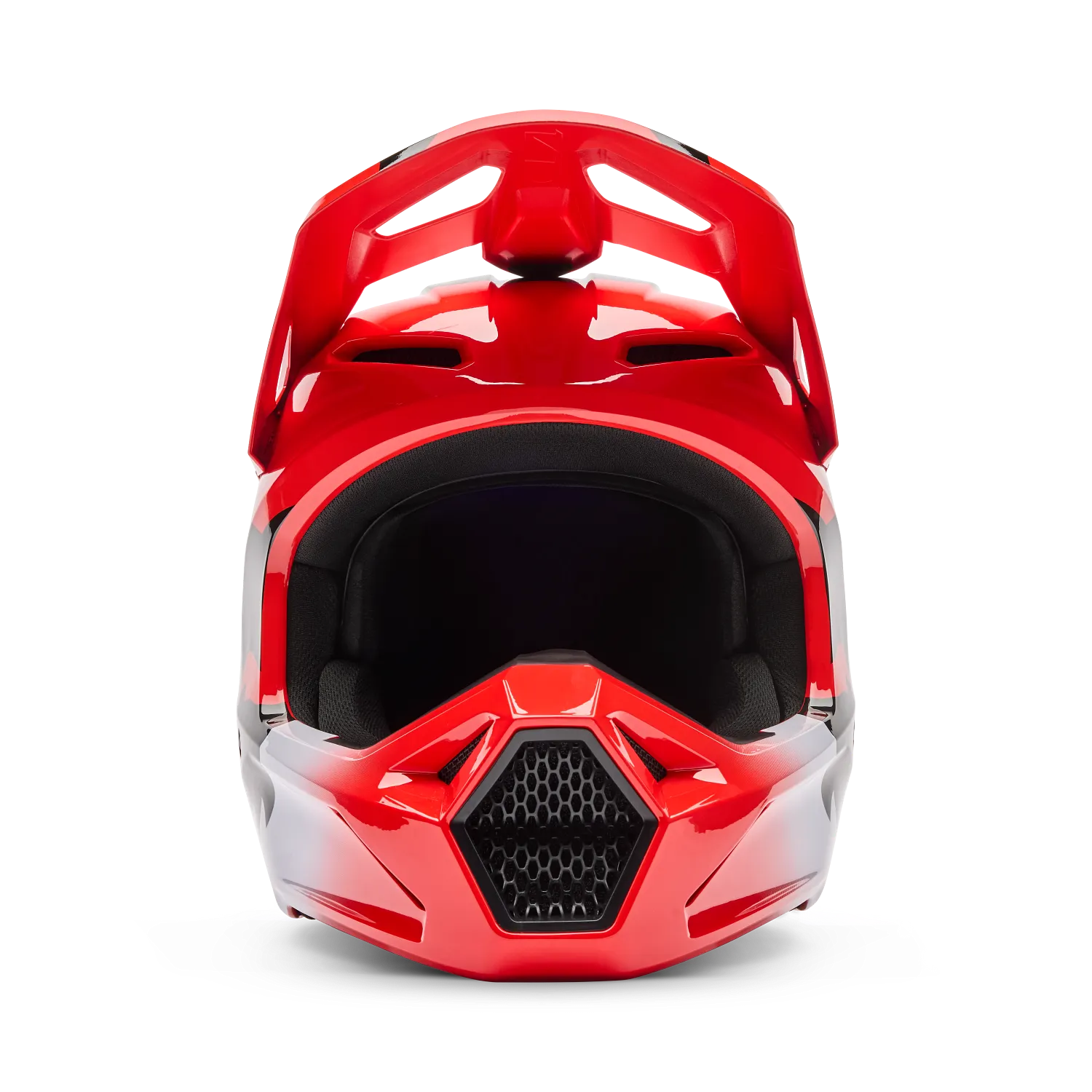

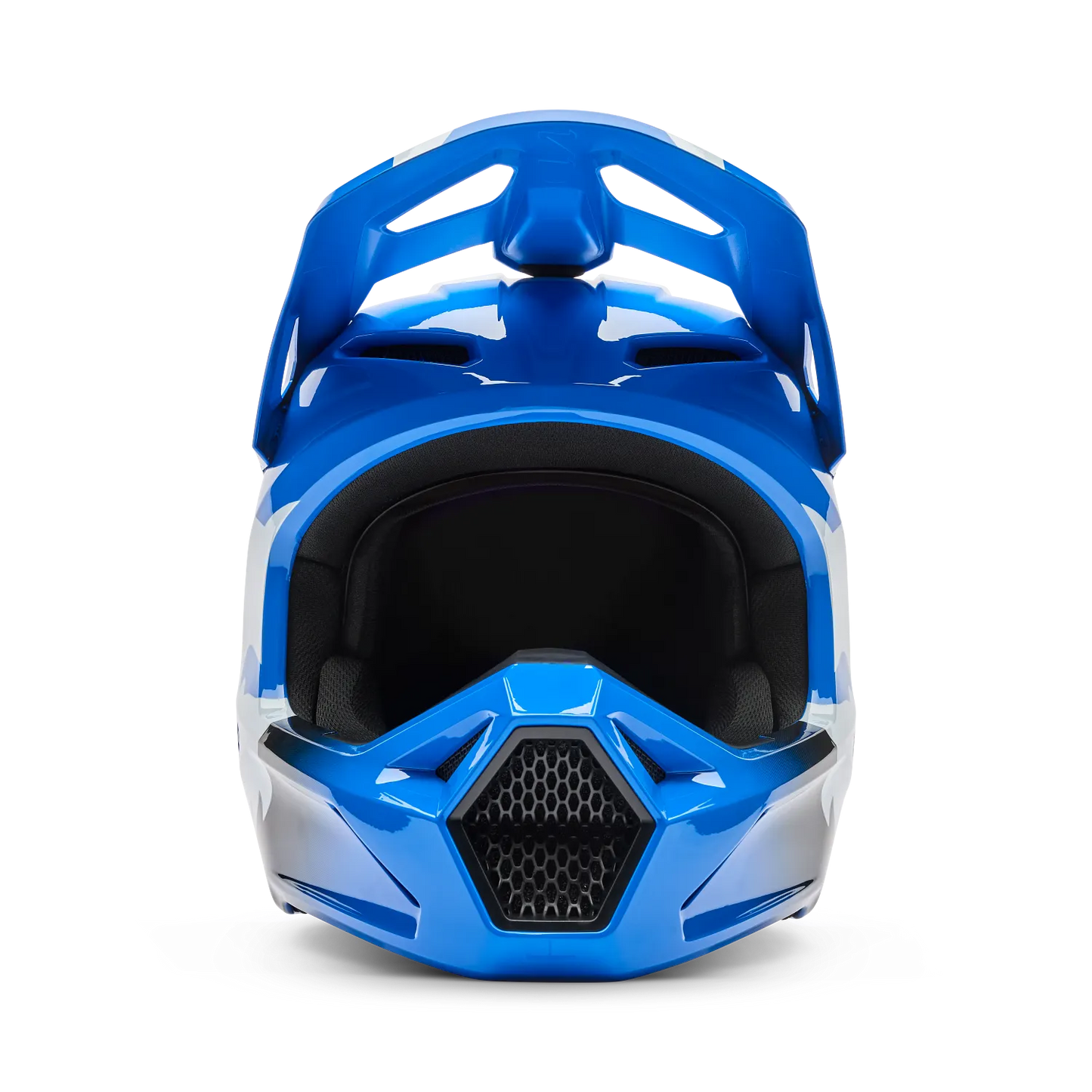

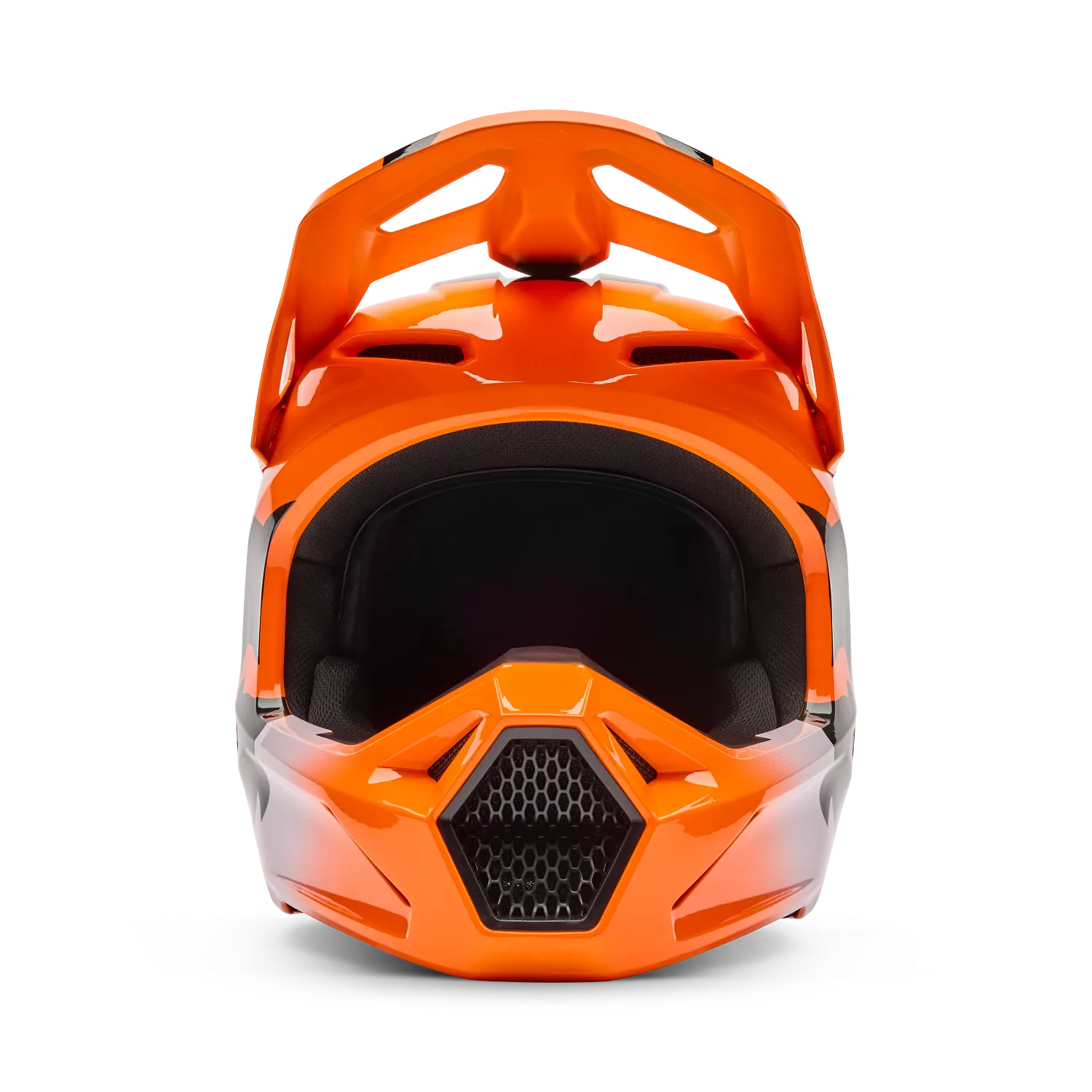

The V1 Shield Helmet uses an adjustable visor setup designed for typical moto conditions. Breakaway side screws are used at the visor mounts, and the visor angle can be adjusted to suit rider preference. Up front, the helmet includes a removable mouth vent cover and a padded EVA chinbar, combining serviceable details with a comfort-focused chin area for Moto riding.

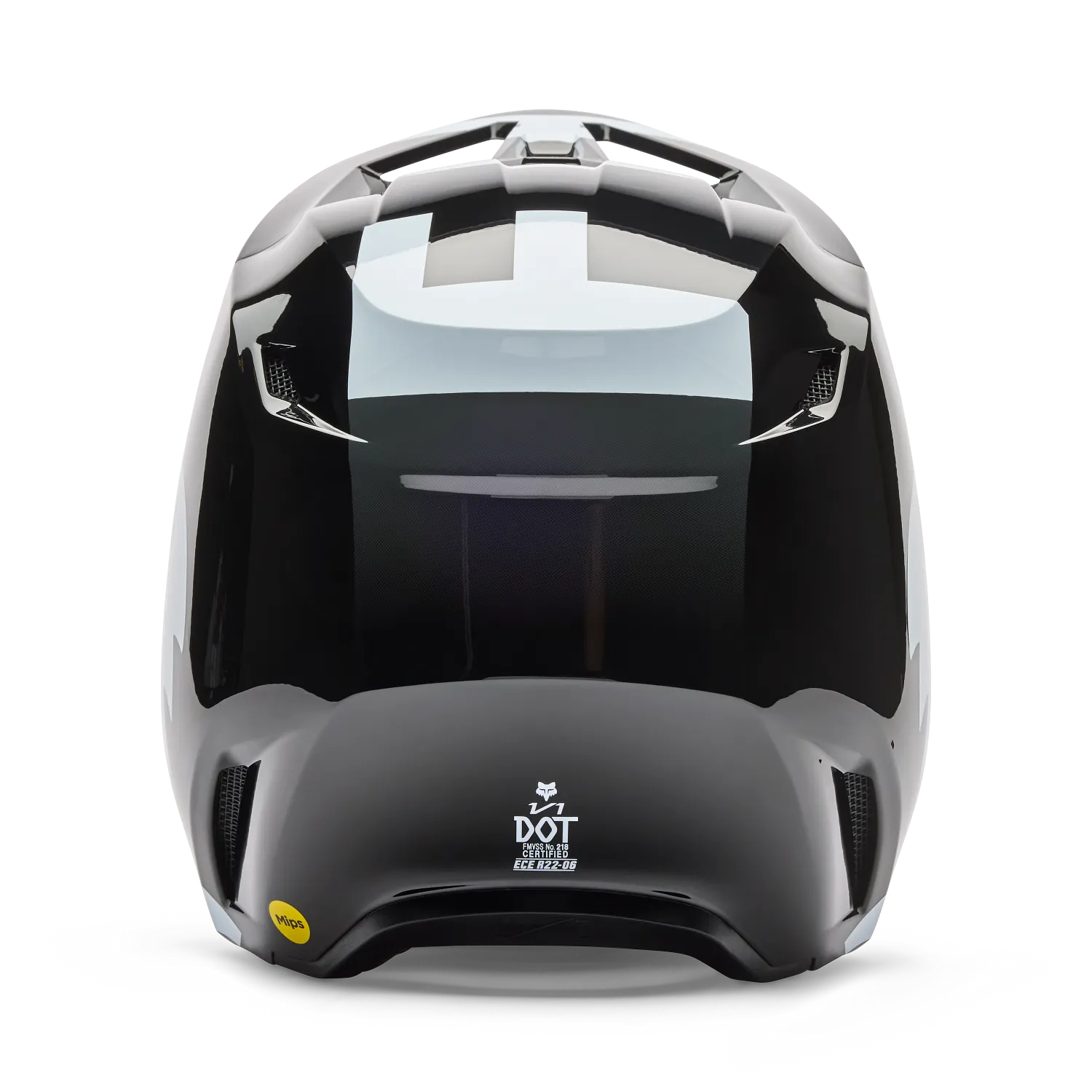

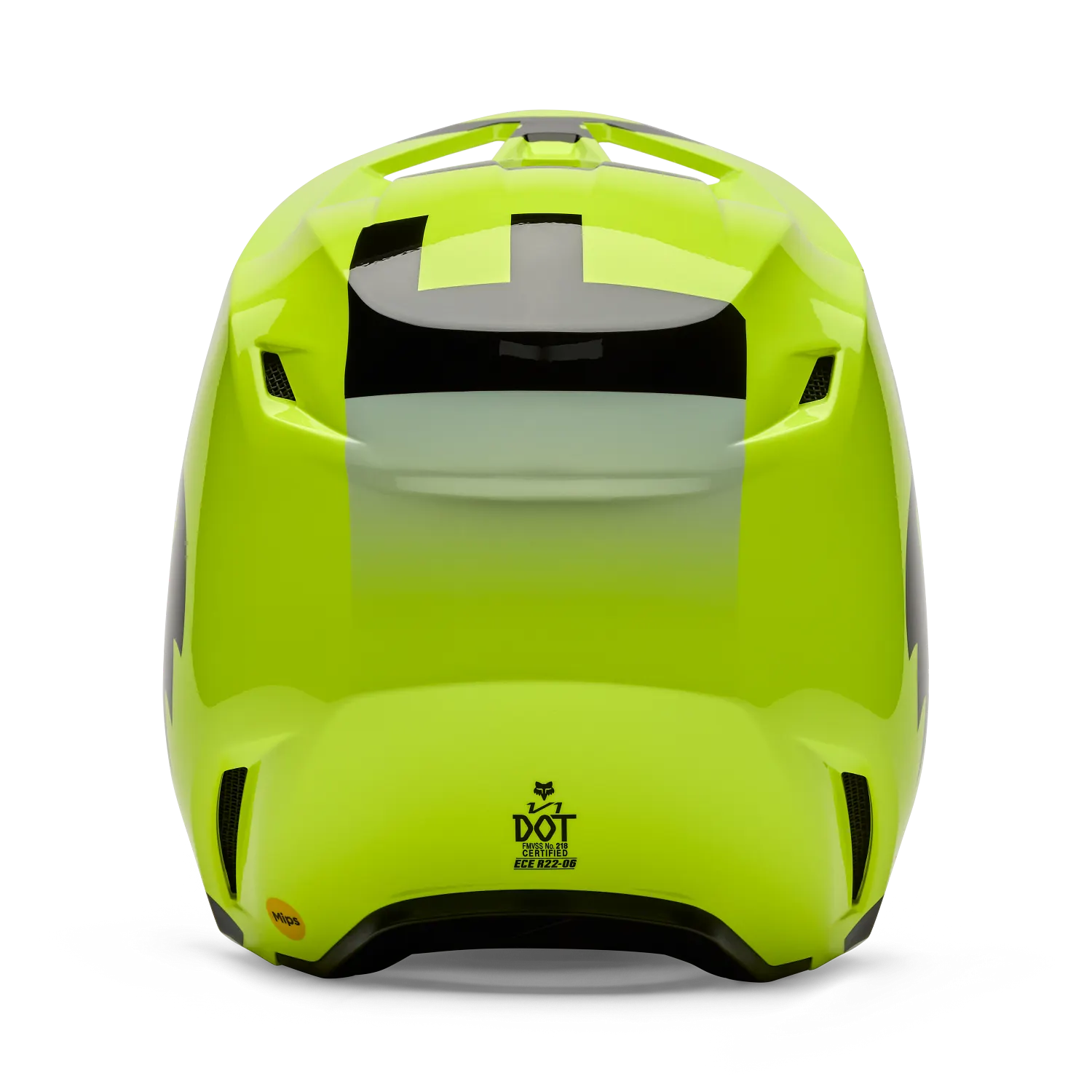

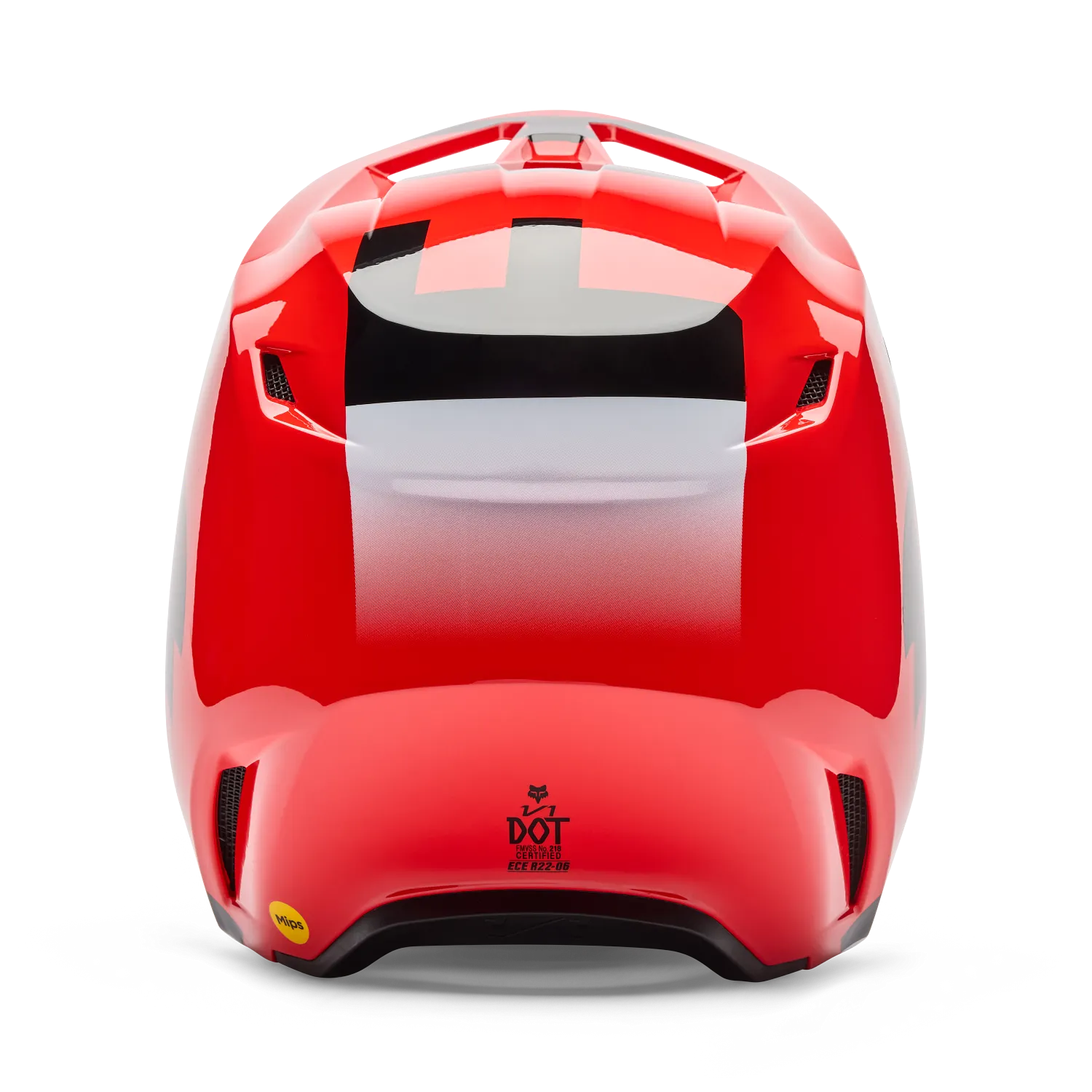

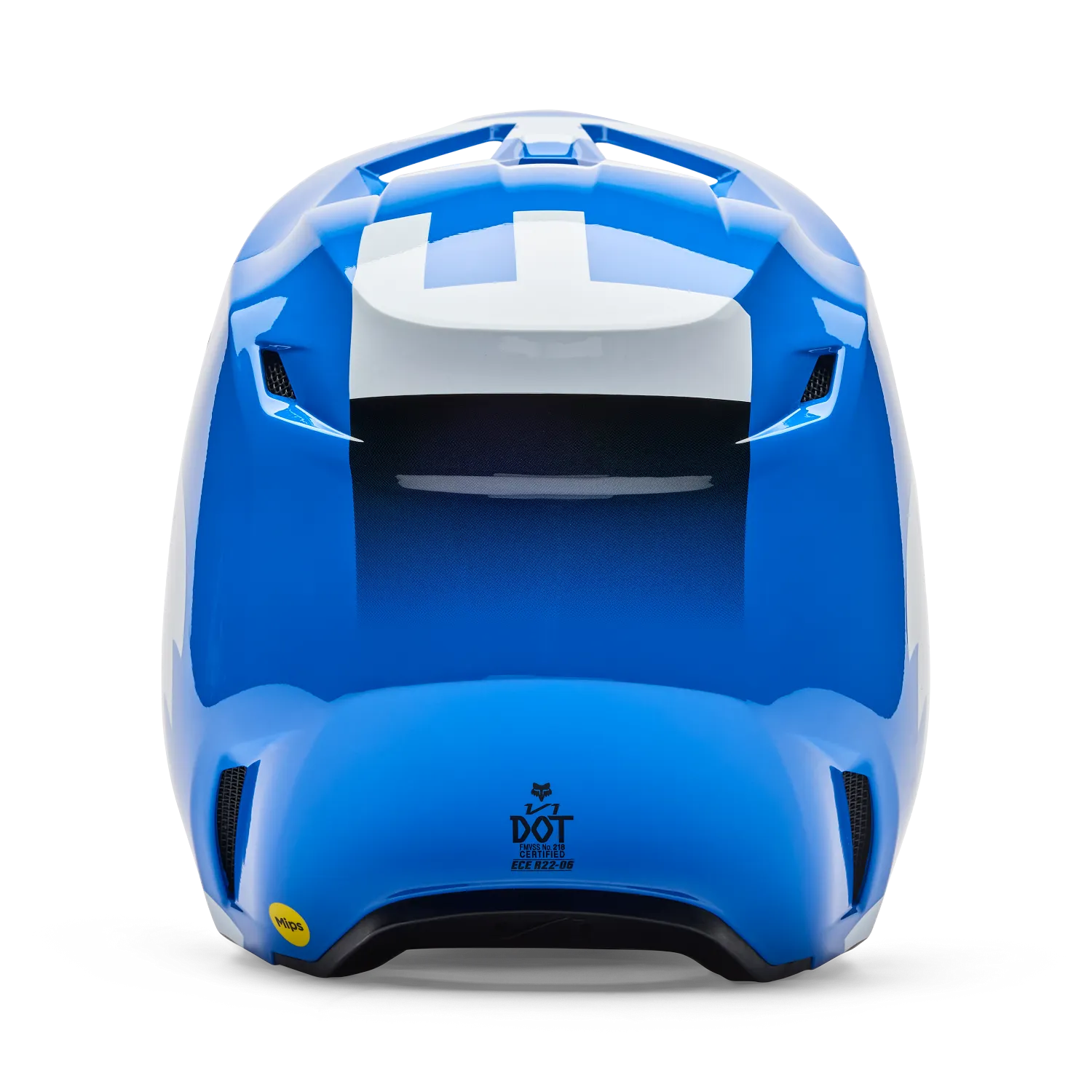

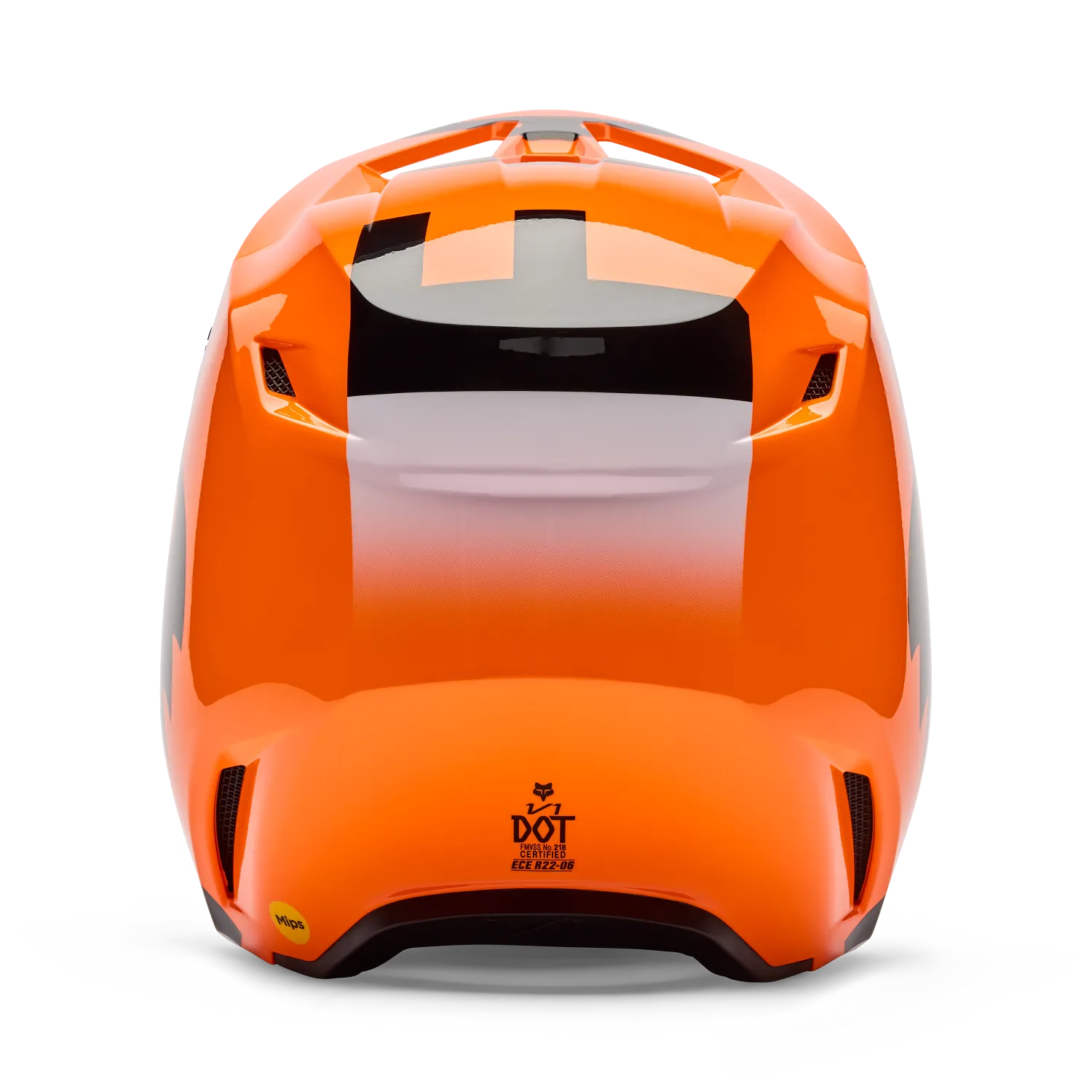

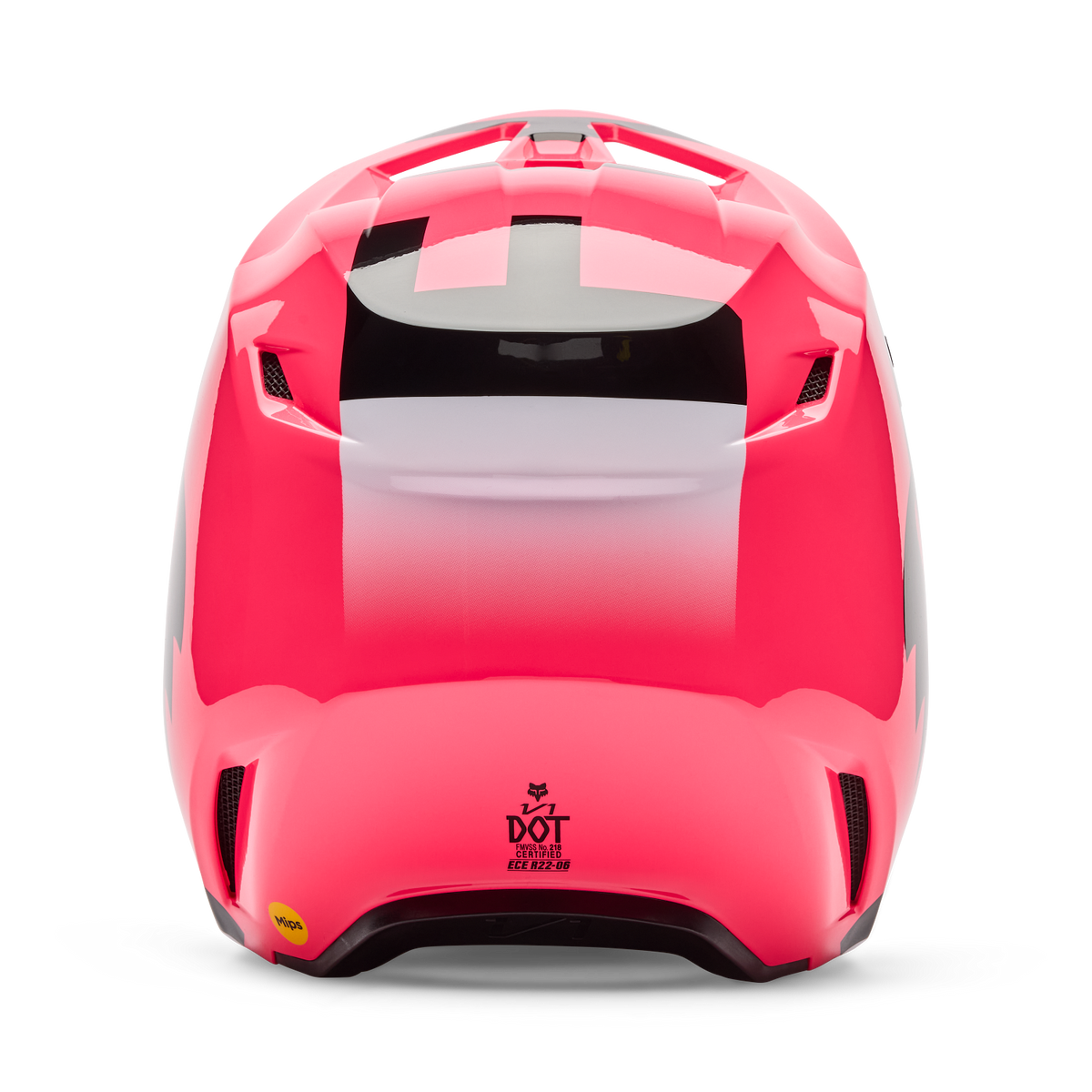

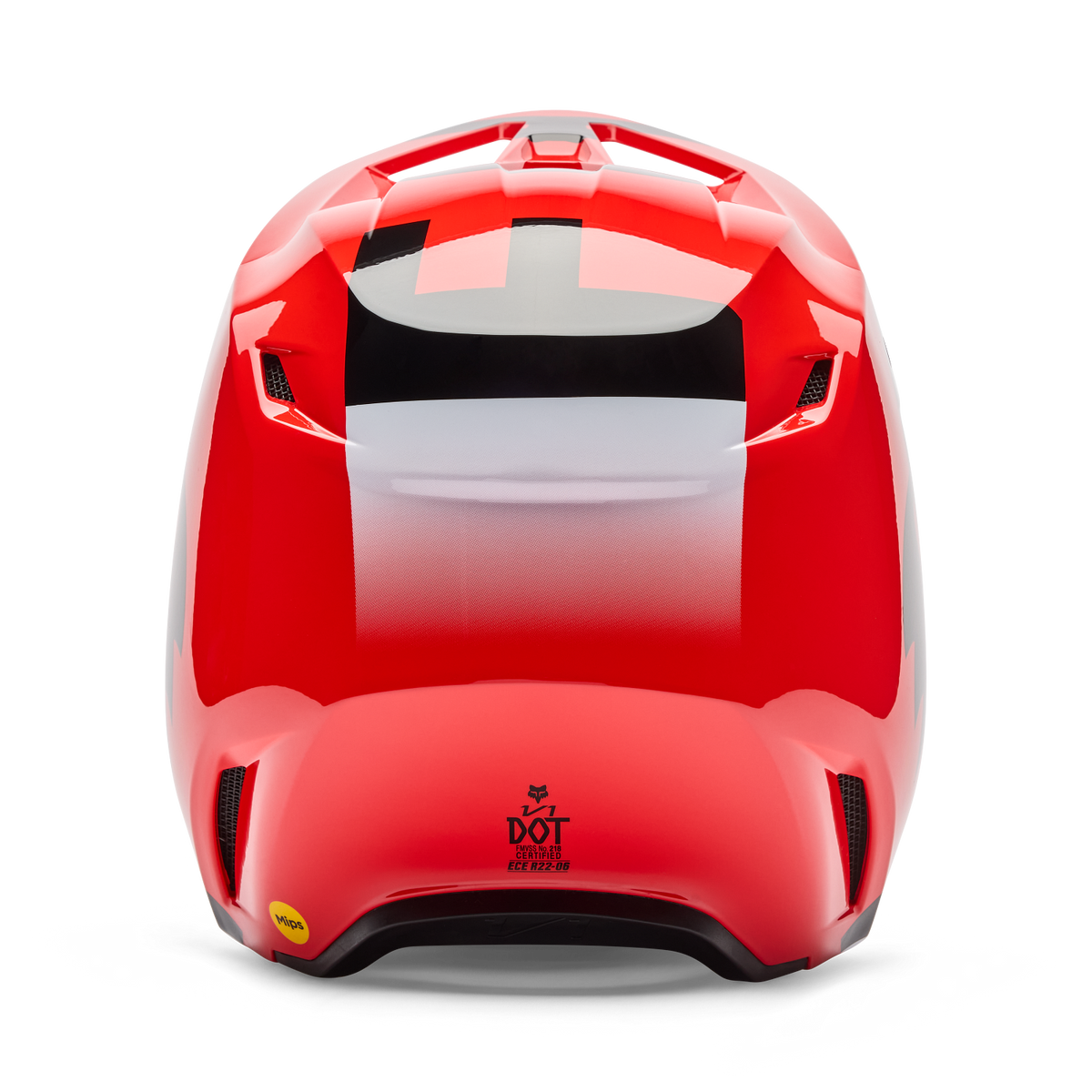

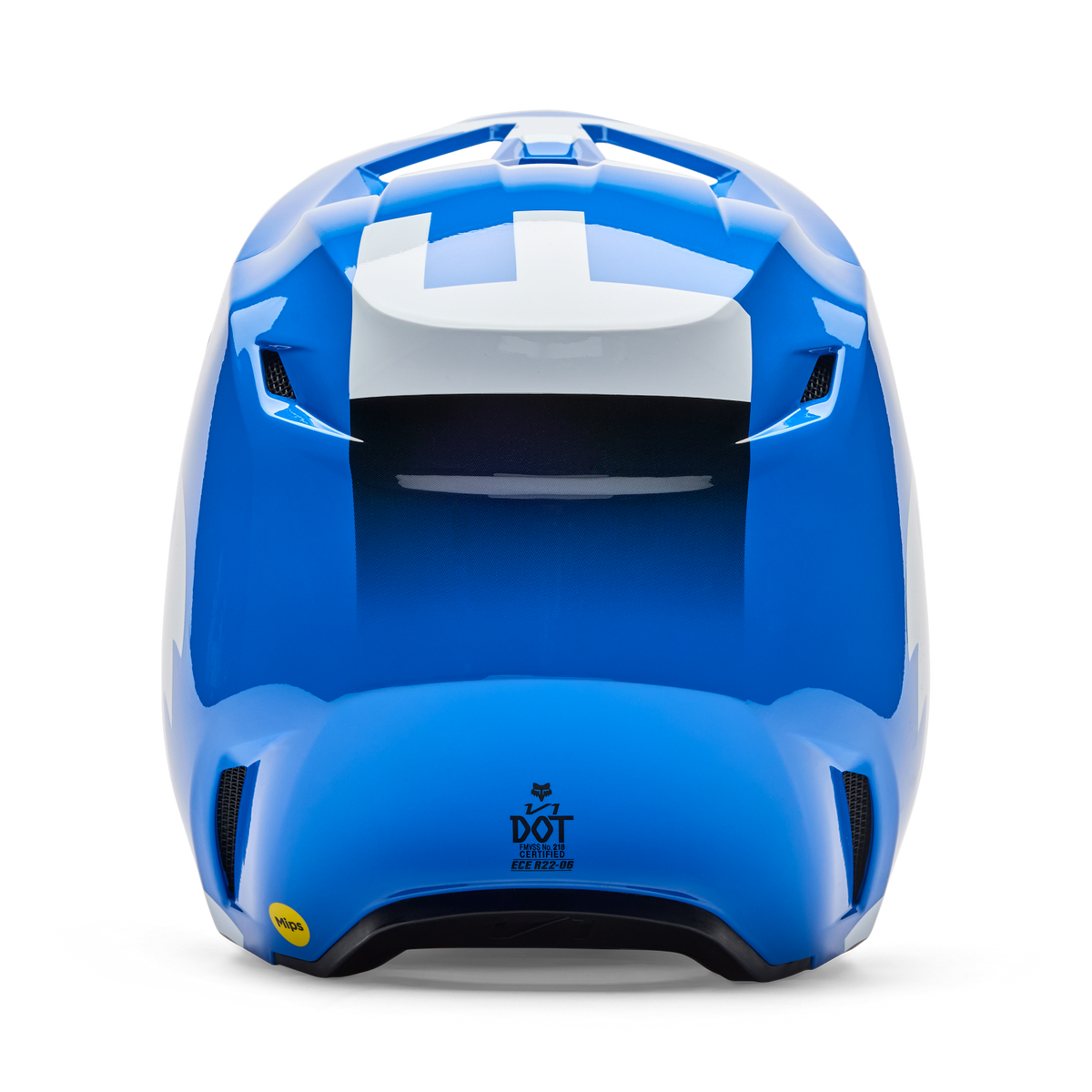

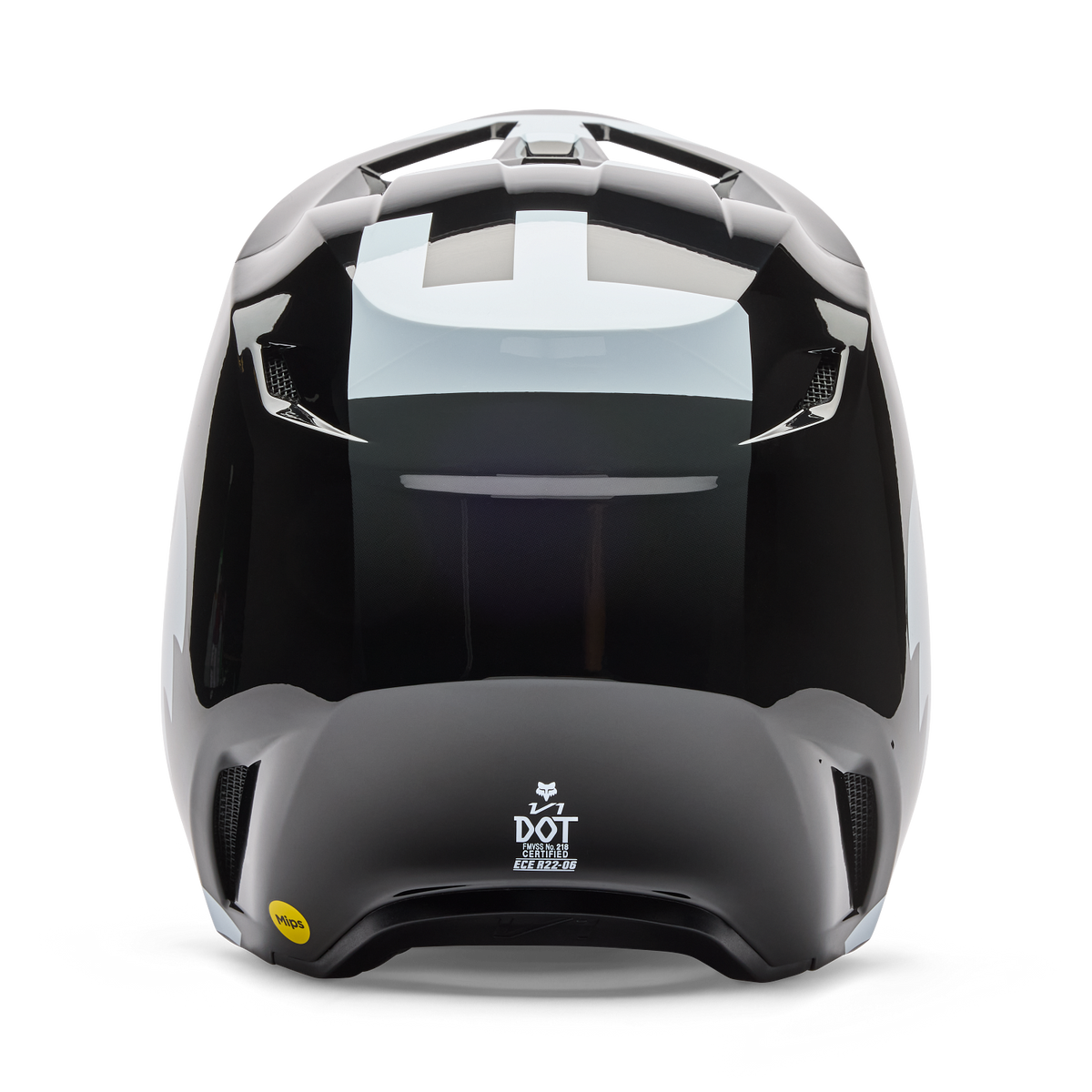

| Meets ECE 22.06 and DOT certifications. |
As stated by FOX for this helmet.
| Mips® added protection system has been proven to reduce the rotational motion when implemented in a helmet by absorbing and redirecting energies and forces otherwise transmitted to the brain. |

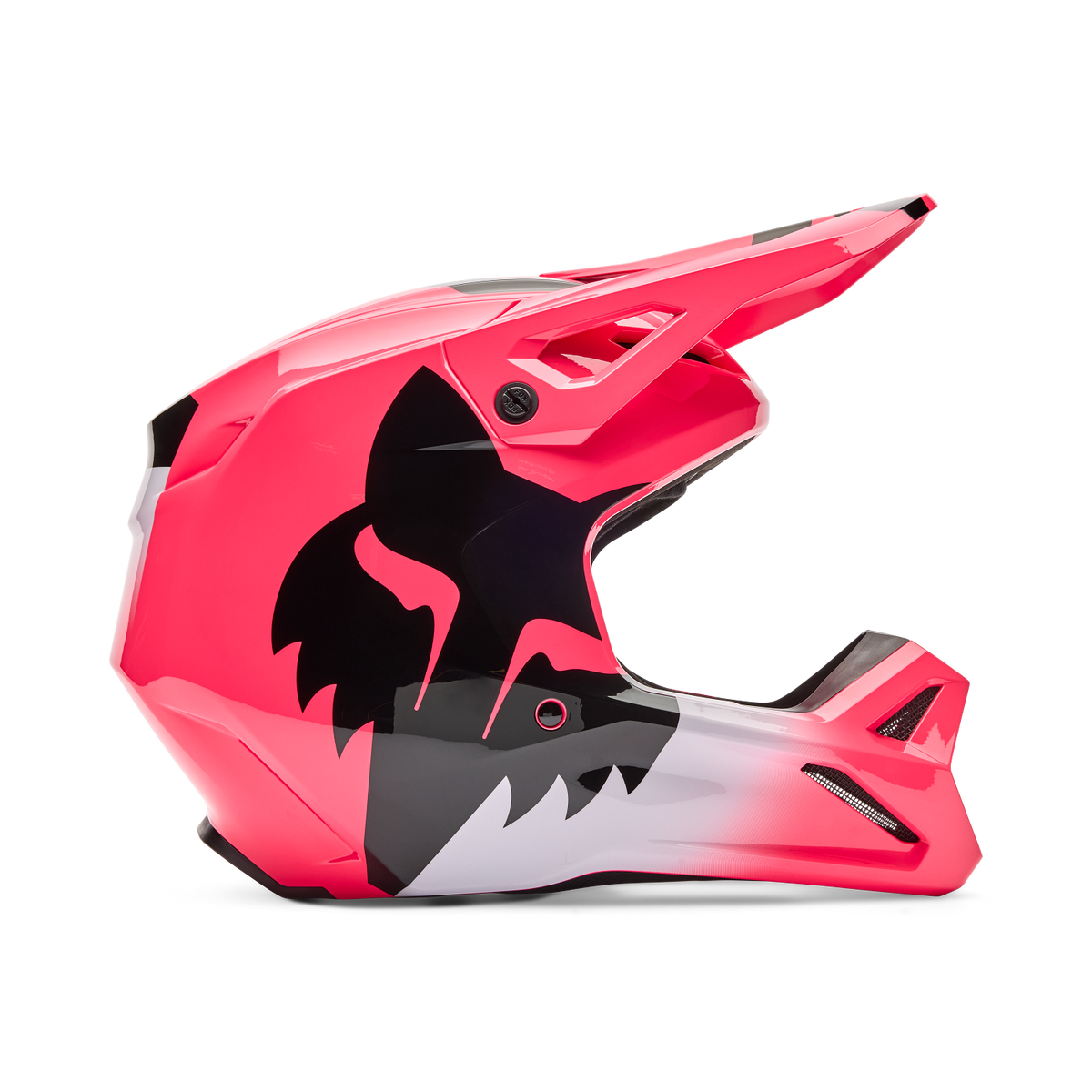

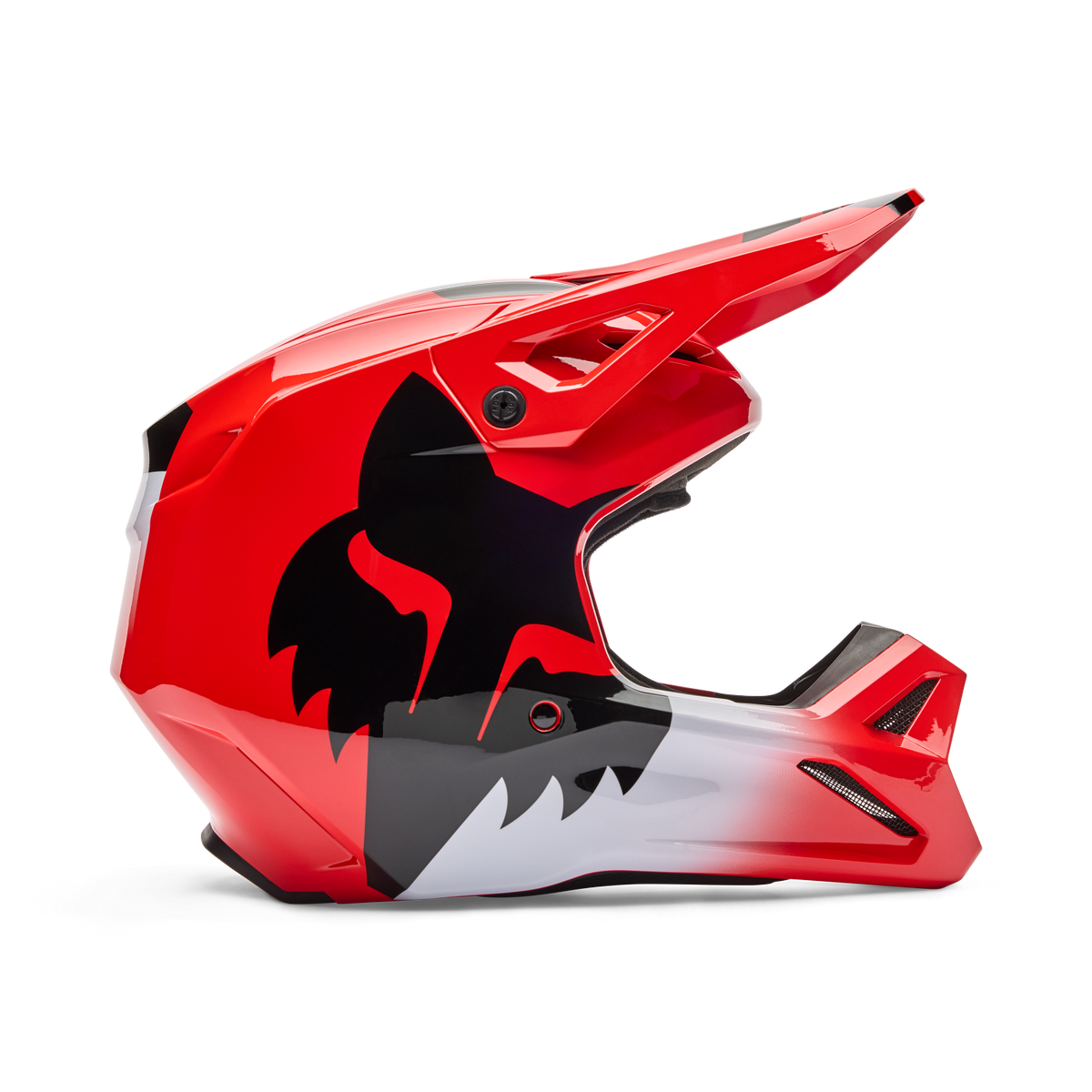

| Adjustable visor with breakaway side screws. |
| Lightweight injection molded polycarbonate and ABS shell construction is intended to disperse energy in the event of a crash. |
| 4 shell and 5 EPS sizes for a precise fit. |

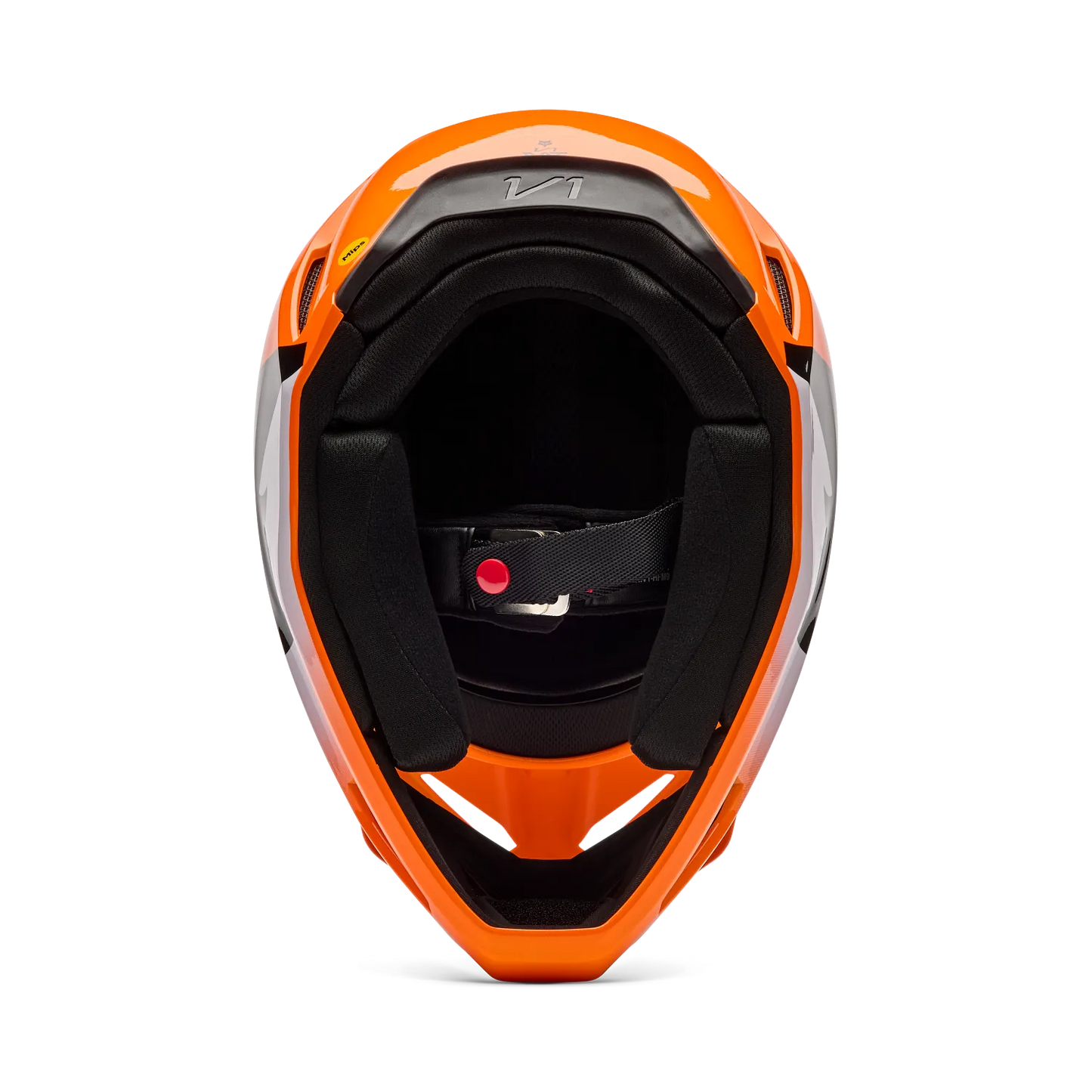

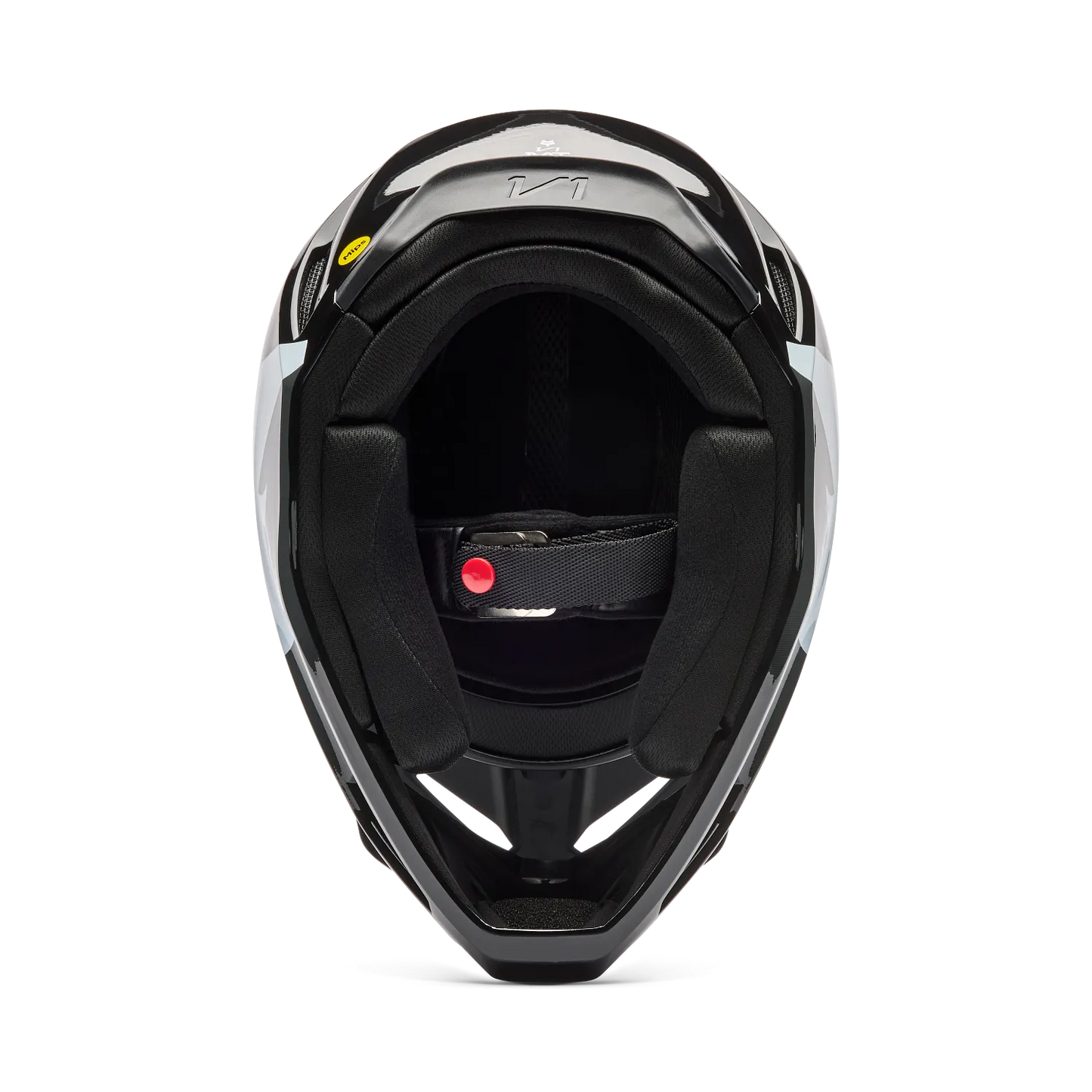

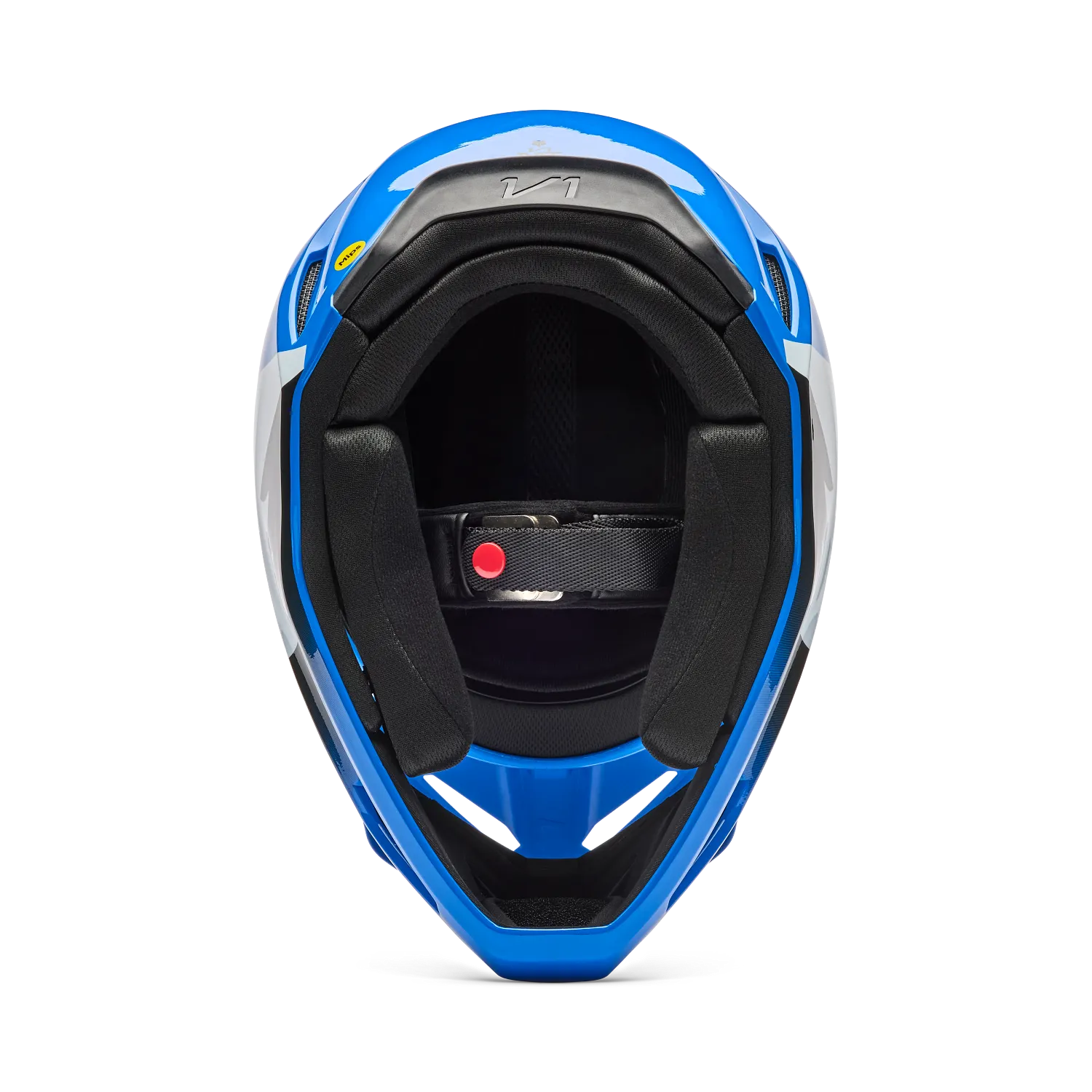

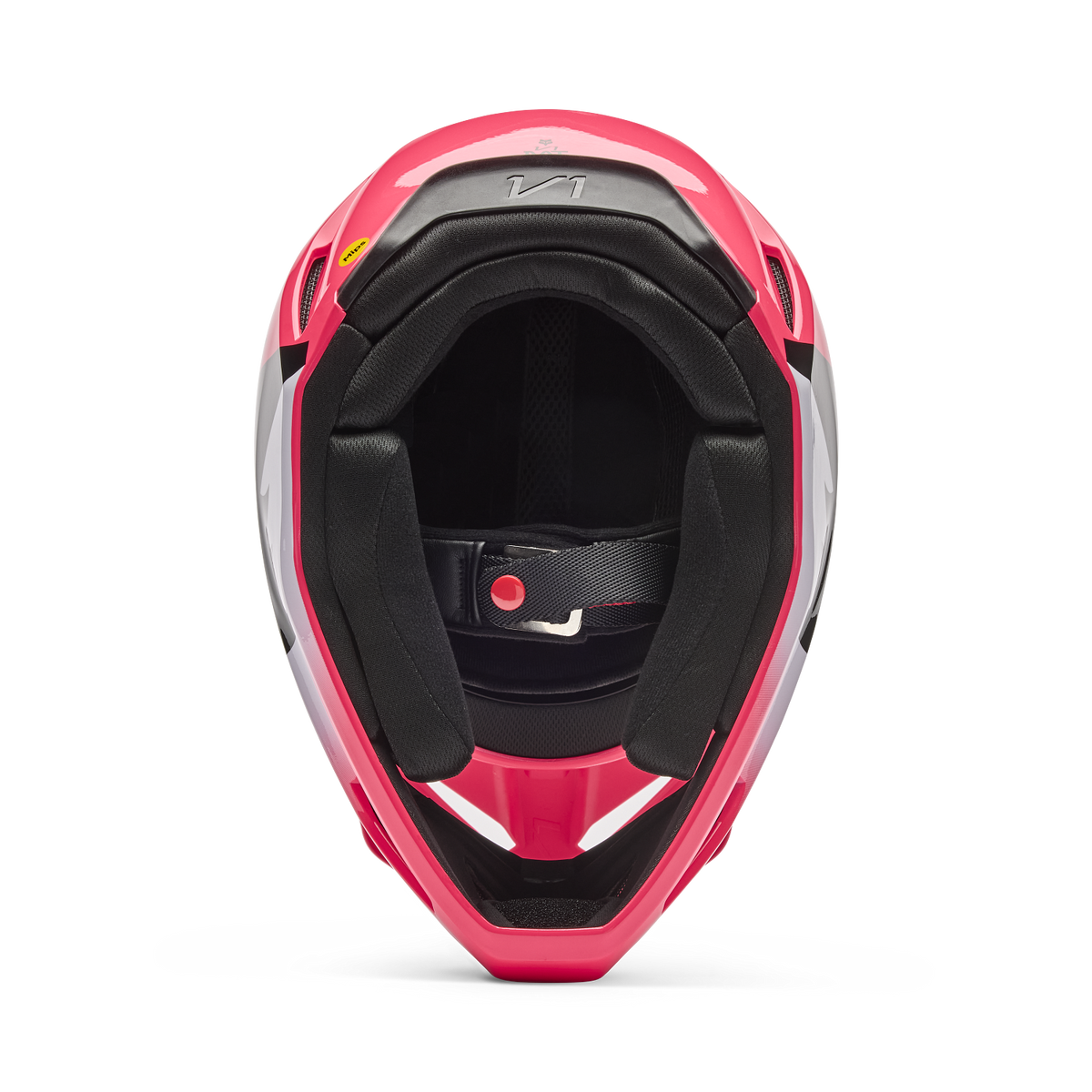

| Removable and washable comfort liner and cheek pads. |

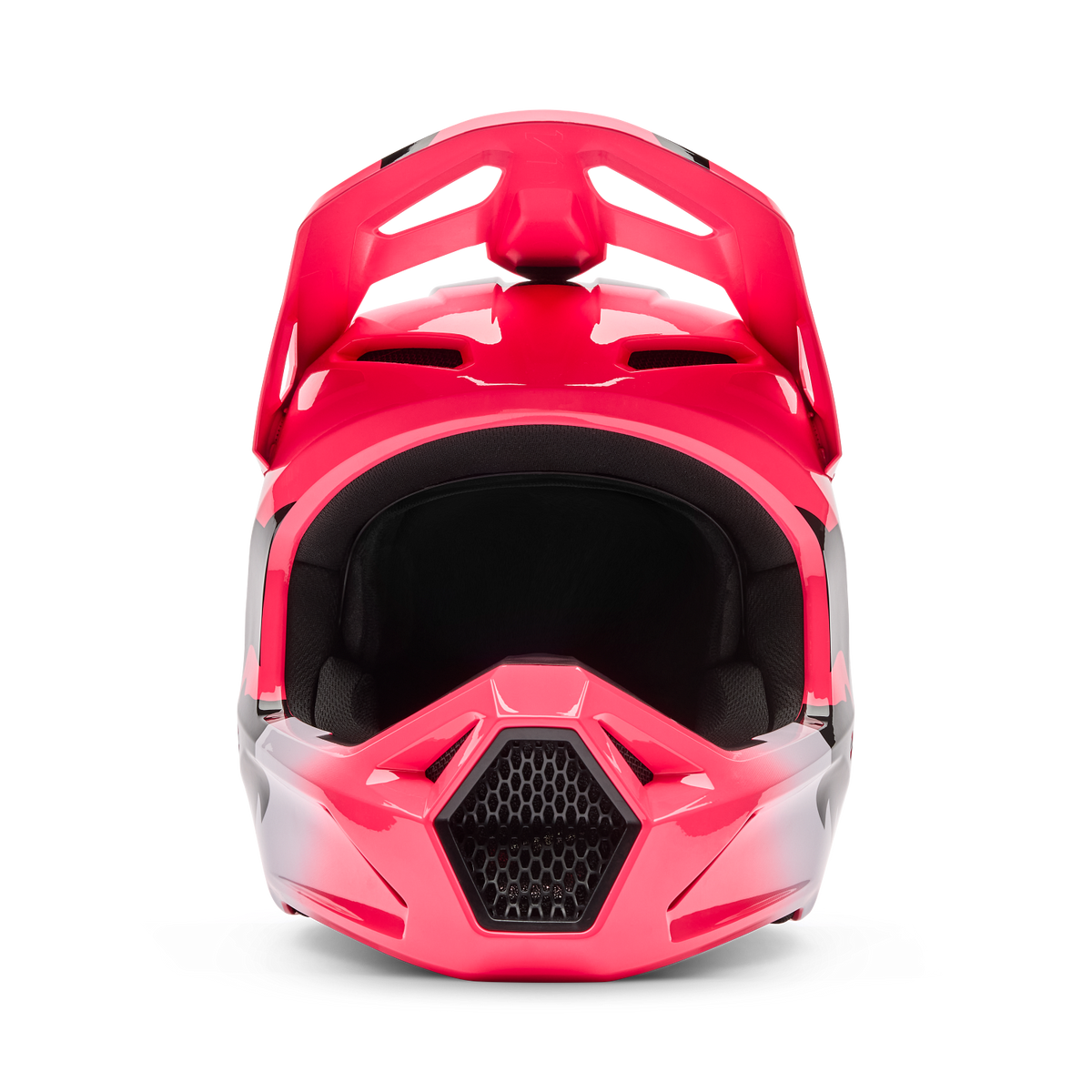

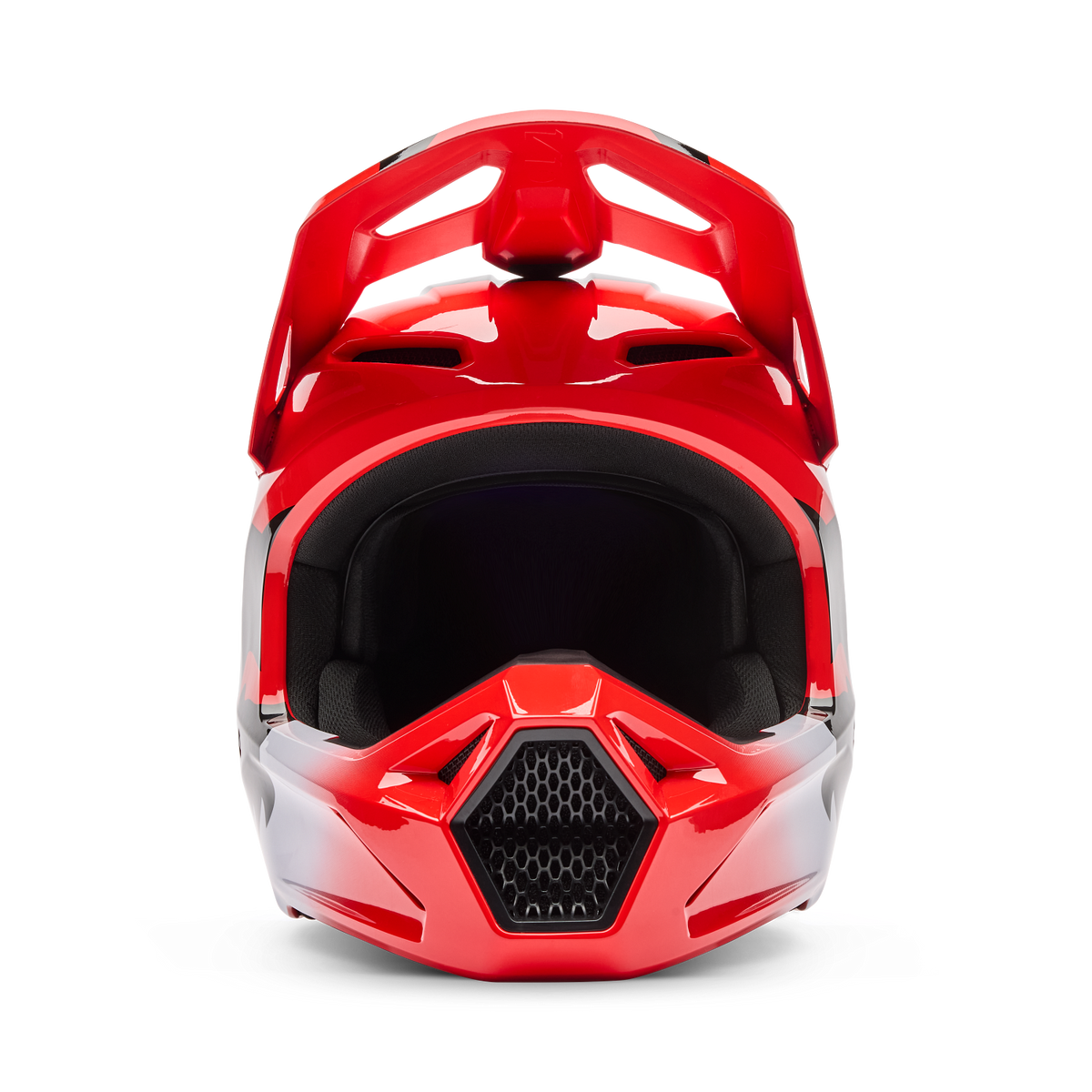

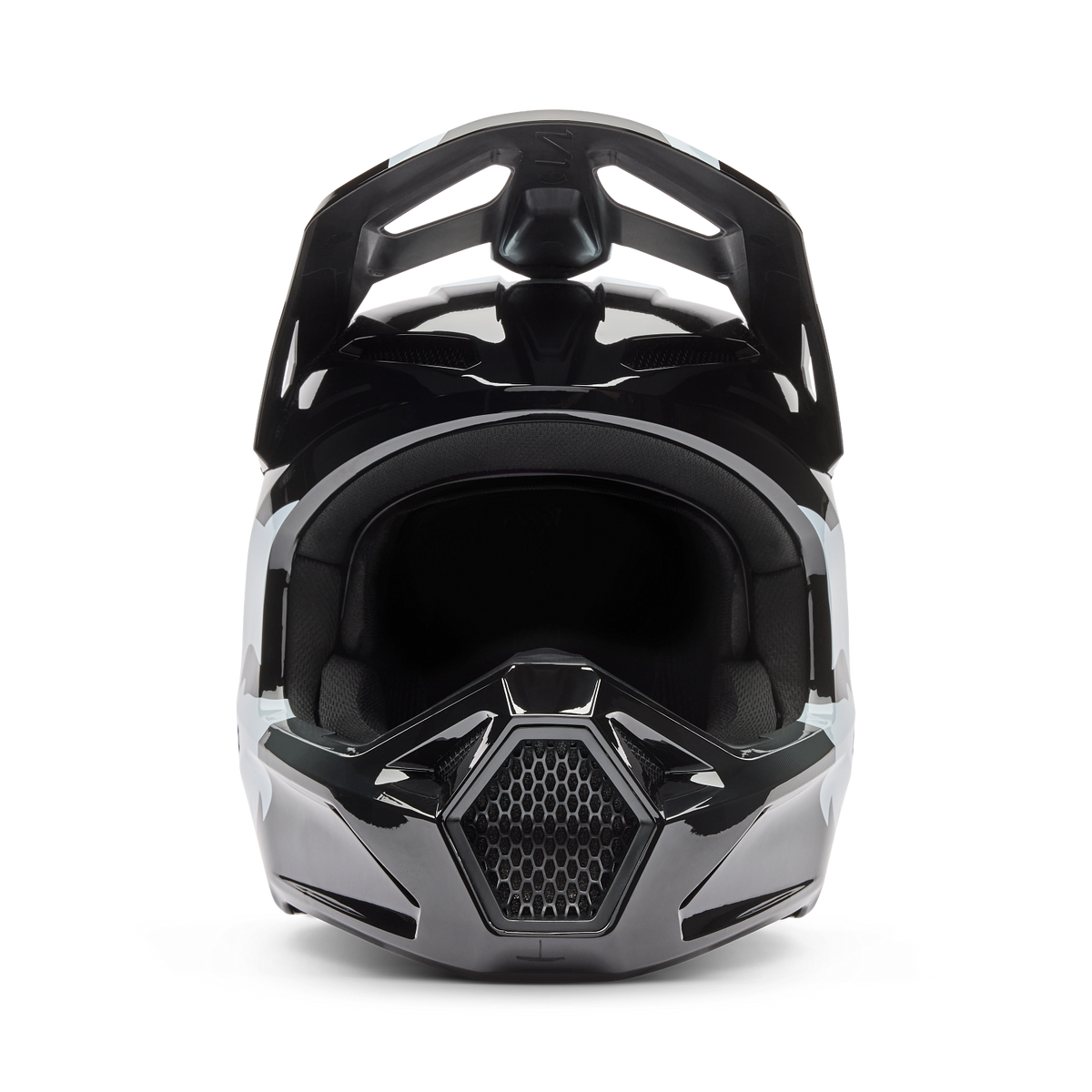

| Removable mouth vent cover and padded EVA chinbar. |
| 7 intake and 4 exhaust vents for optimum airflow. |
| Meets ECE 22.06 and DOT certifications. |
| Mips® equipped. |
As listed by FOX for this helmet.
| Size & Fit | Available in sizes (XS-XXL). |
|---|---|
| Size & Fit | Also available in youth sizes (YS-YL). |
| Size & Fit | 5 shell 5 EPS sizes to provide a precise fit. |
| Materials & Care | Note: Avoid exposure to aerosol sprays like bug repellent and sunscreens as they can cause your helmet's finish to peel. |
| Materials & Care | Materials: 54% abs, 16% eps, 6% paint, 6% pa. |
| Size | Head Size | Cheek Pads | Hat Size | Weight |
|---|---|---|---|---|
| YS | 19.3-20.1" | 30 mm | 6 1/8-6 3/8" | 1080±50 g |
| YM | 20.1-20.5" | 30 mm | 6 3/8-6 1/2" | 1080±50 g |
| YL | 20.5-20.9" | 25 mm | 6 1/2-6 5/8" | 1080±50 g |
| XS | 20.9-21.3" | 15 mm | 6 5/8-6 3/4" | 1080±50 g |
| S | 21.7"-22.0" | 30 mm | 6 7/8-7" | 1180±50 g |
| M | 22.4-22.8 | 30 mm | 7 1/8-7 1/4" | 1240±50 g |
| L | 23.2-23.6" | 30 mm | 7 3/8-7 1/2" | 1340±50 g |
| Size | Head Size | Cheek Pads | Hat Size | Weight |
|---|---|---|---|---|
| YS | 49-51 cm | 30 mm | 15.6-16.2 cm | 1080±50 g |
| YM | 51-52 cm | 30 mm | 16.2-16.6 cm | 1080±50 g |
| YL | 52-53 cm | 25 mm | 16.6-16.9 cm | 1080±50 g |
| XS | 53-54 cm | 15 mm | 16.9-17.2 cm | 1080±50 g |
| S | 55-56 cm | 30 mm | 17.5-17.8 cm | 1180±50 g |
| M | 57-58 cm | 30 mm | 18.1-18.5 cm | 1240±50 g |
| L | 59-60 cm | 30 mm | 18.8-19.1 cm | 1340±50 g |
| XL | 61-62 cm | 35 mm | 19.4-19.7 cm | 1440±50 g |
| XXL | 63-64 cm | 30 mm | 20.1-20.4 cm | 1440±50 g |
