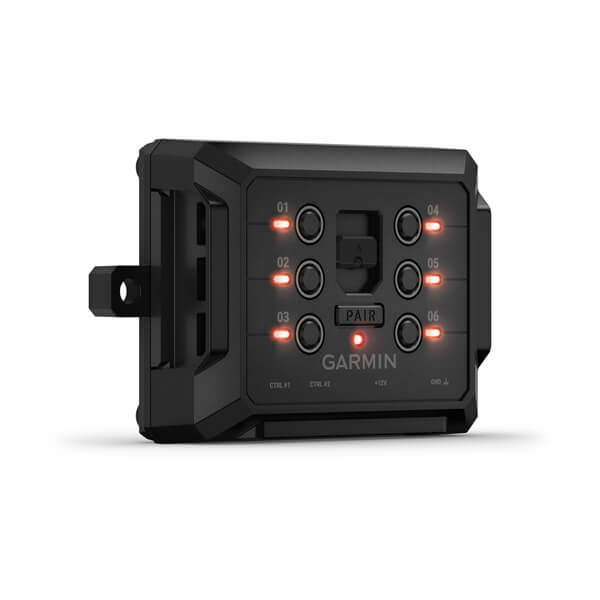

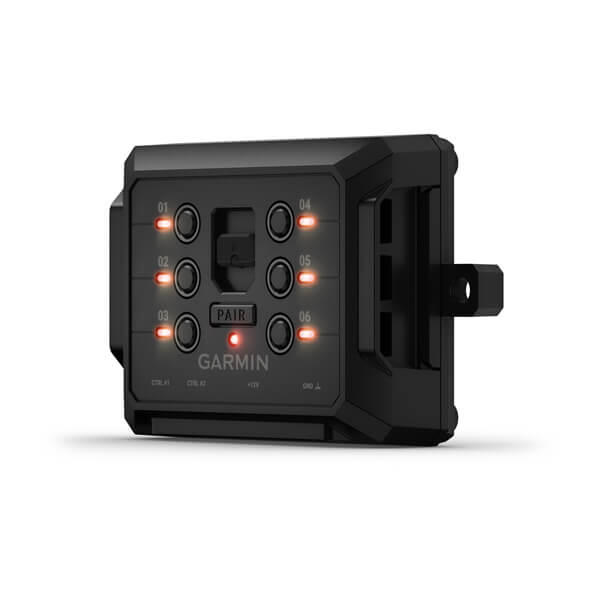

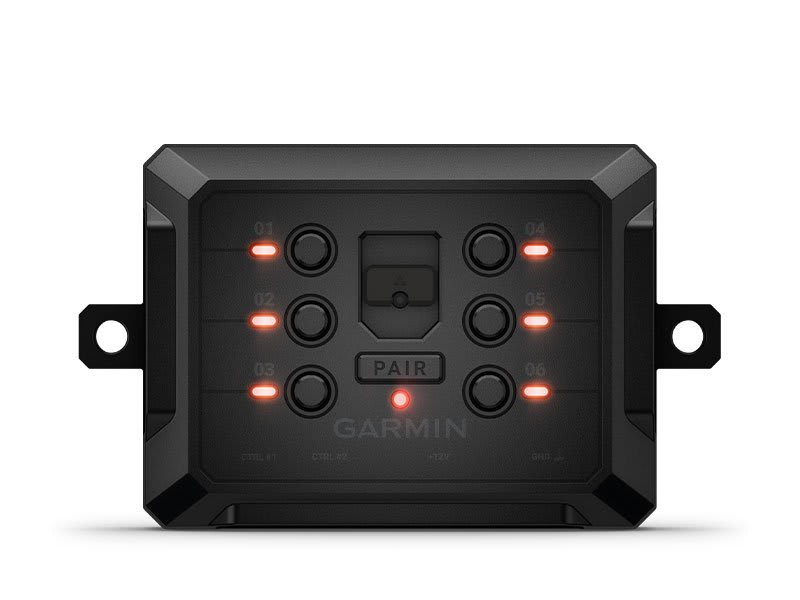

Garmin PowerSwitch™ – Wireless digital switching for 12-volt accessories
Product SKU: 010-02466-00
Garmin PowerSwitch makes it easy to add, manage, and customize 12-volt accessories without cutting into dashboards or interfering with your vehicle’s electronics. Use a compatible touchscreen device to wirelessly control up to six switch outputs, tailor on-screen switch panels, and expand control across multiple PowerSwitch units when you need more capability.
Overview

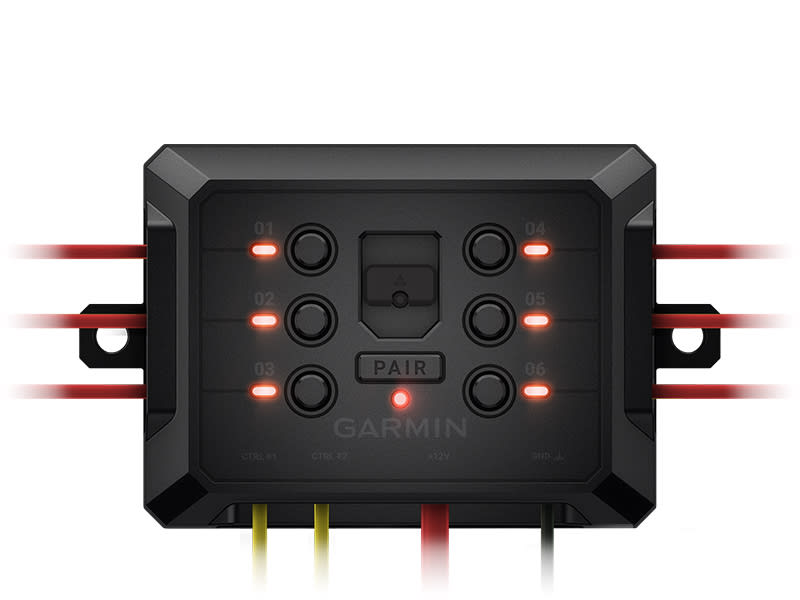

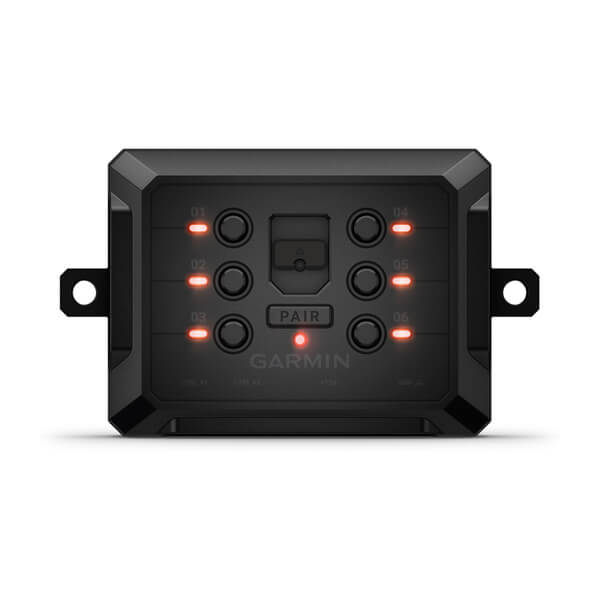

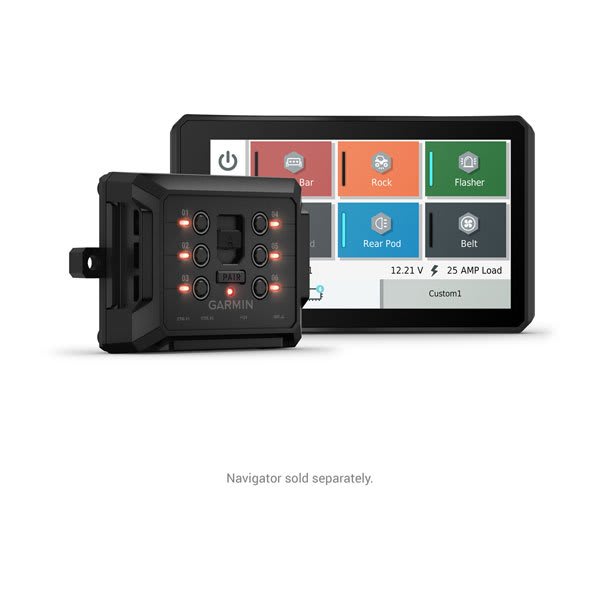

Designed for clean installs and flexible mounting, Garmin PowerSwitch consolidates accessory control into one compact digital switch box. Create custom virtual switch panels with labels, icons, and channel groups, plus dimming and flashing controls for lighting systems. With six circuits rated up to 30 amps each, it’s a streamlined way to manage common 12-volt gear—from exterior lighting to comm radios, refrigerators, and air compressors.
Key Features
-

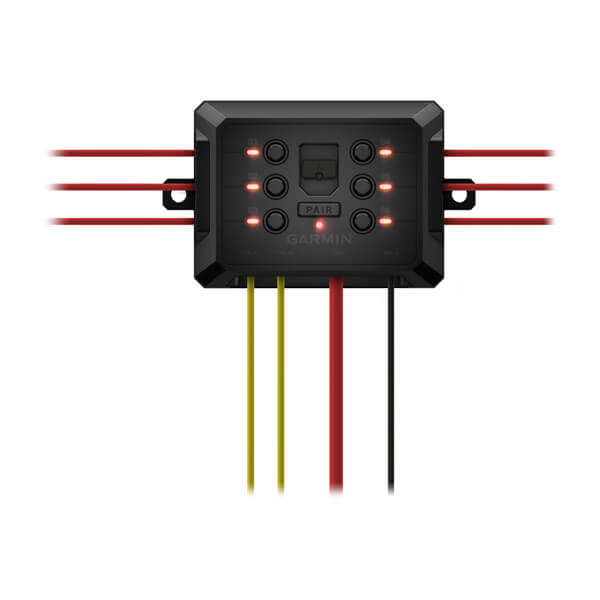

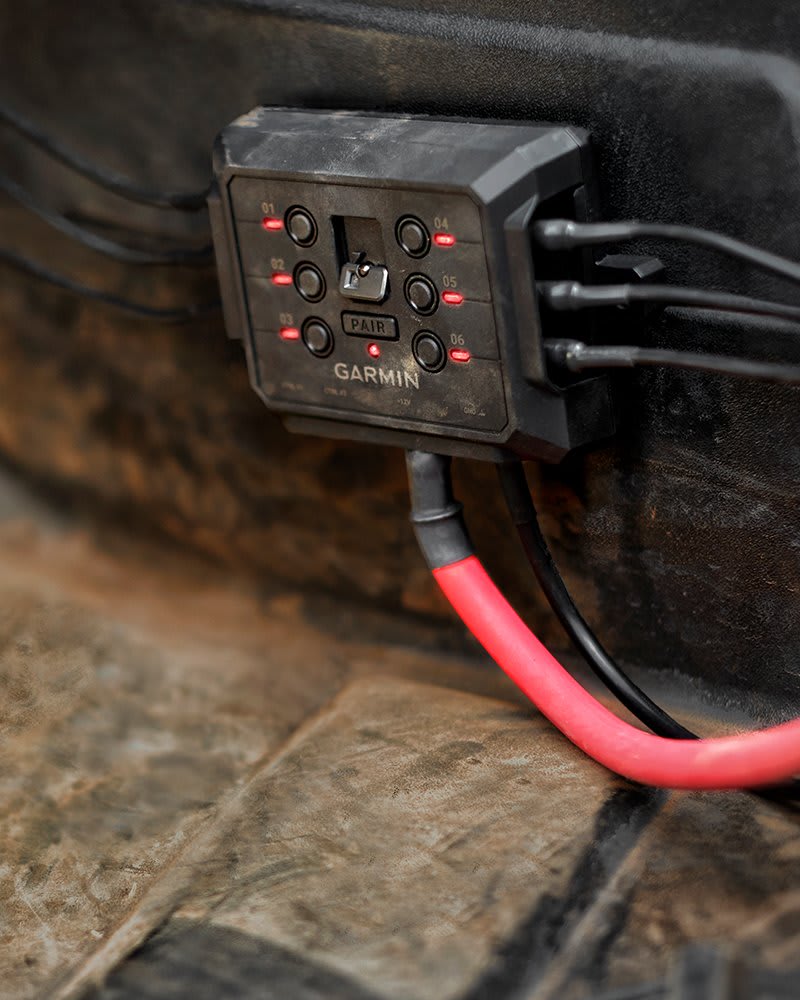

Install made simple: Connect up to six accessories to one Garmin PowerSwitch box with hassle-free installation—no cutting holes in your dashboard, no routing wires through the firewall, and no interference with vehicle electronics.
-

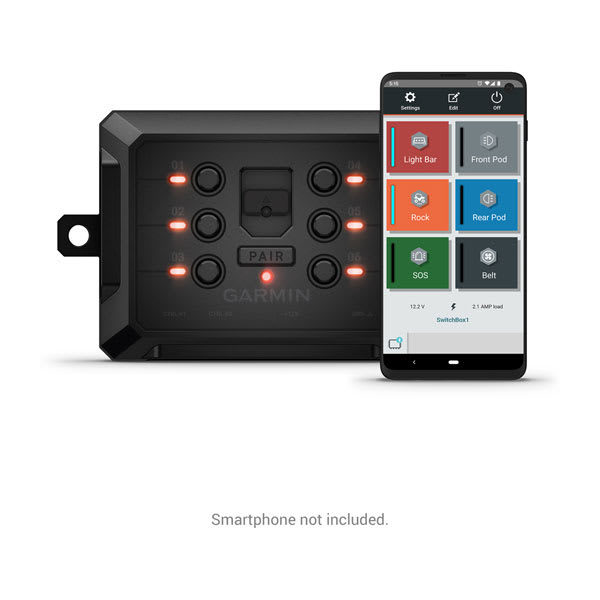

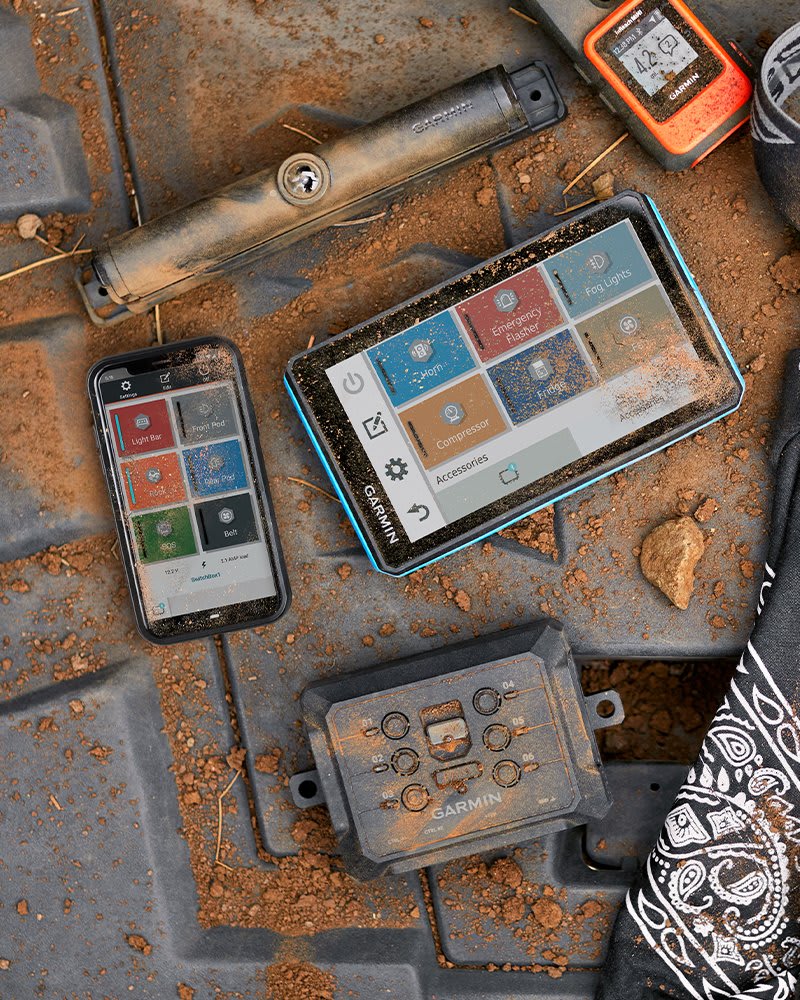

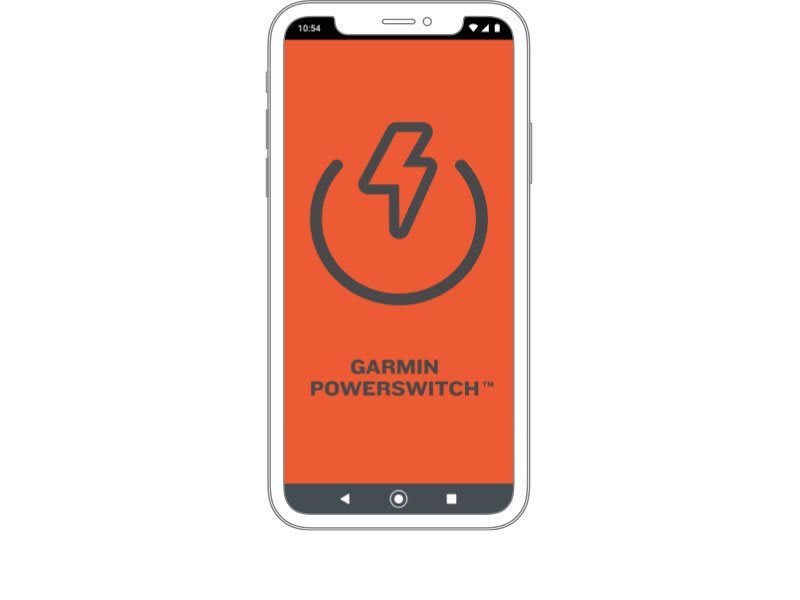

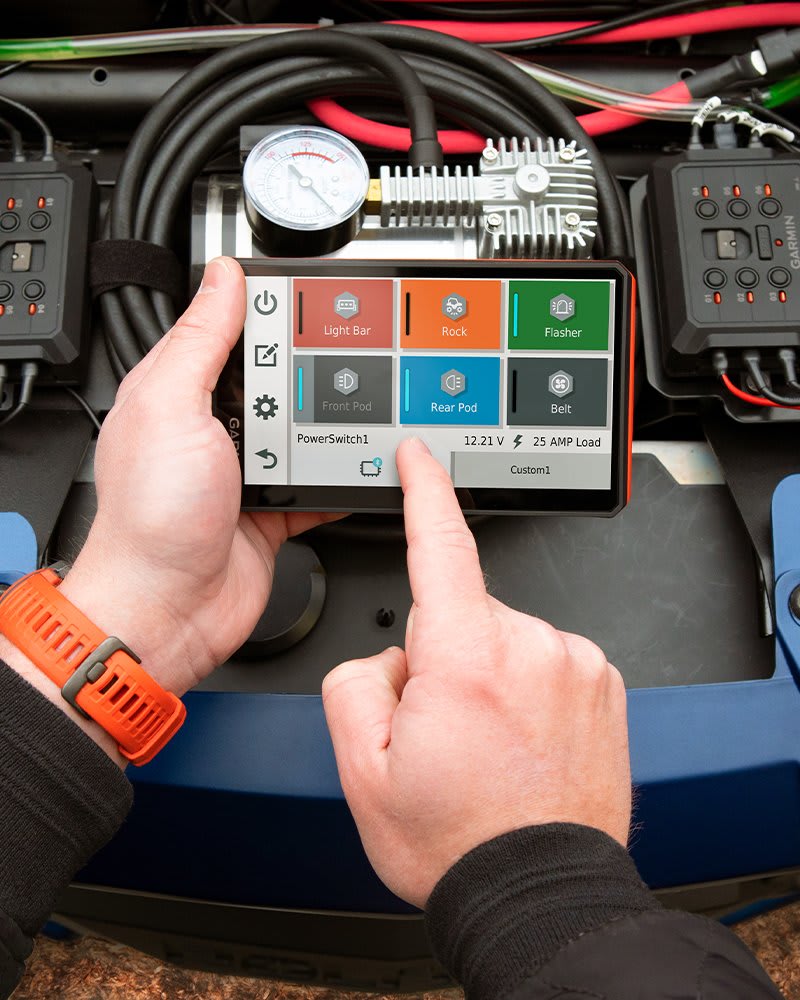

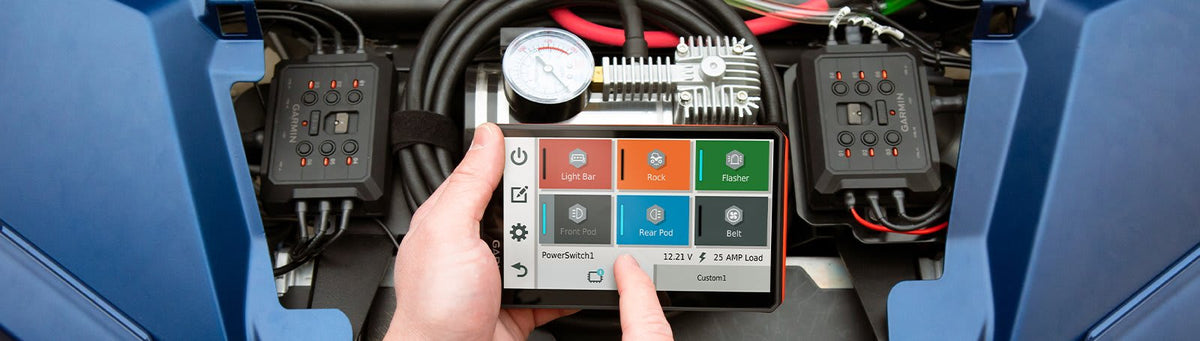

Wireless switch control: Use your device’s touchscreen to wirelessly access up to six switch outputs.
-
Ample outlets: Six circuits rated at up to 30 amps each (100 amps max total) for powering and controlling 12-volt accessories (not intended for controlling motors with reverse polarity).
-

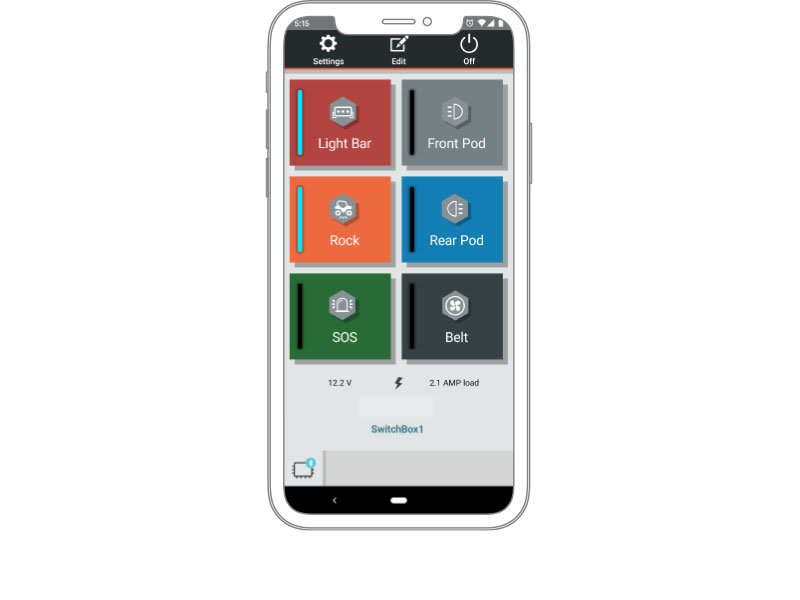

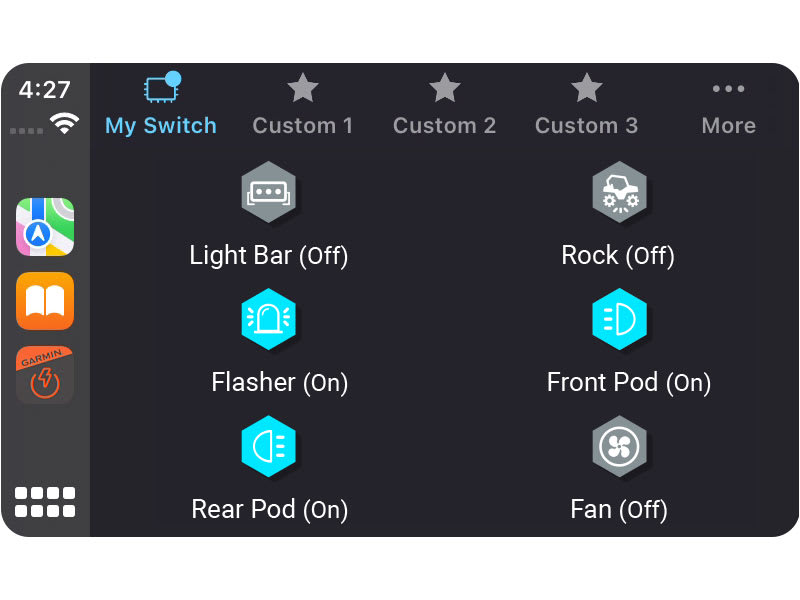

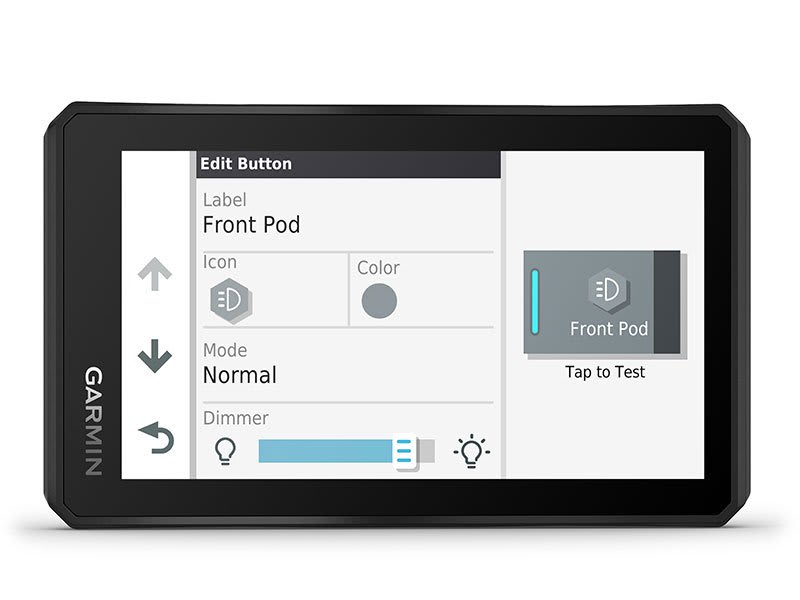

Customize switches: Build custom virtual switch panels with customizable labels, icons, and channel groups, plus controls for dimming and flashing lighting systems.
-

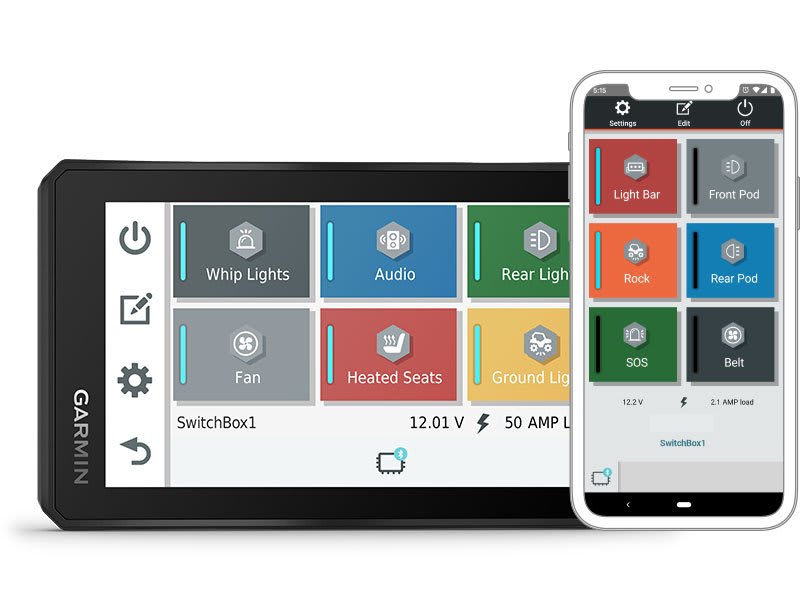

More control: Access up to four Garmin PowerSwitch devices from the same display.
-
Control inputs: Includes two control inputs that detect 3.3-volt to 18-volt signals to trigger customizable outputs (e.g., tie into ignition to power accessories automatically at startup).
-

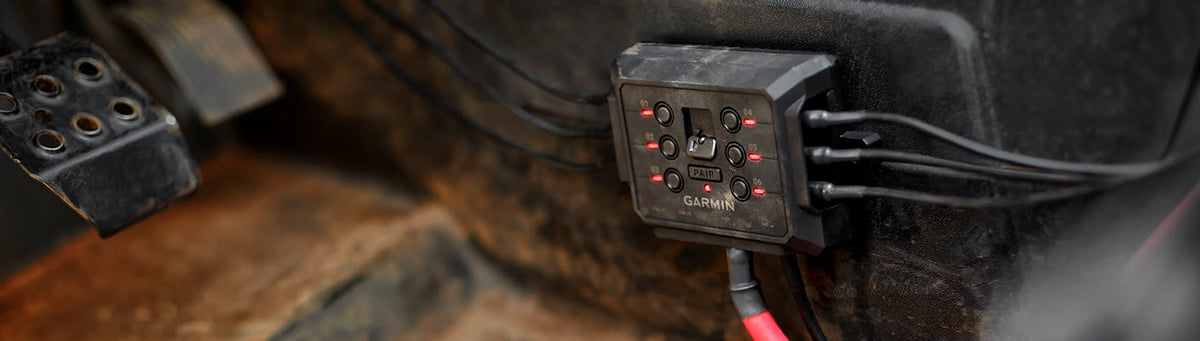

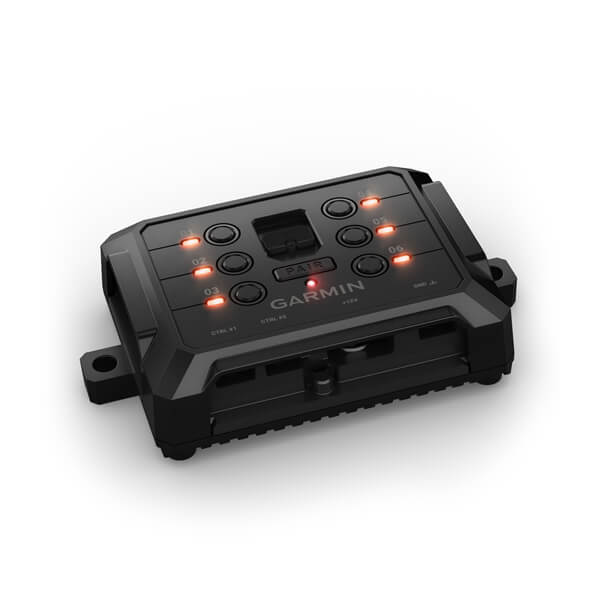

Compact for easy mounting: Compact form factor supports flexible mounting options across many vehicle types.
Lighting & Accessory Control
Light it up: Add exterior lighting packages—light bars, fog lights, emergency flashers, rear lights, and rock lights—while keeping control organized on your device.
Power your adventures: Manage useful 12-volt gear such as comm radios, refrigerators, and air compressors, or virtually anything that can run on 12-volt power.
Specifications
-
Dimension: 4.9”W x 1.3”H x 3.0”D (12.5 x 3.2 x 7.5 cm)
-
Weight: 10 oz (283 g)
-
Water rating: IPX7
-
Number of switch outputs: 6
-
Max amps per switch output: 30 amps
-
Max amps total: 100 amps
-
Number of hardwire inputs: 2
-
Max number of controllers for pairing with a PowerSwitch device: 4 (controller defined by a user’s smartphone, mobile device, or compatible Garmin navigator; sold separately)
-
Max number of PowerSwitch devices for pairing with a controller: 4 (controller defined by a user’s smartphone, mobile device, or compatible Garmin navigator; sold separately)
