Garmin · Handhelds & Wearables
The Garmin GPSMAP® 86sci in the Marine Handheld With BlueChart® g3 Coastal Charts and inReach® Capabilities configuration is built for boaters who want confident navigation and reliable communication options in a handheld form.
With preloaded BlueChart® g3 coastal charts and marine-focused features, it can also connect wirelessly to compatible onboard Garmin systems for at-a-glance boat data. When venturing farther, inReach® capabilities add two-way messaging, tracking and interactive SOS through the Iridium® satellite network, helping keep crews connected beyond cellular range. A water-resistant design that floats, plus a transflective color display, make it well suited for use on deck, in the cockpit or as a dedicated backup navigator.
Navigation
BlueChart® g3 coastal charts come preloaded to deliver detailed coastal coverage using integrated Garmin and Navionics® data. With mapping ready to go, the GPSMAP® 86sci supports on-the-water route planning and situational awareness without requiring a separate chart source.
Connectivity
Using the Iridium® satellite network, the GPSMAP® 86sci supports two-way messaging with custom and preset texts or emails, plus delivery confirmation. It also supports interactive SOS messaging to the Garmin IERCC, a 24/7 staffed emergency response coordination center, via the 100% global Iridium satellite network.
Display

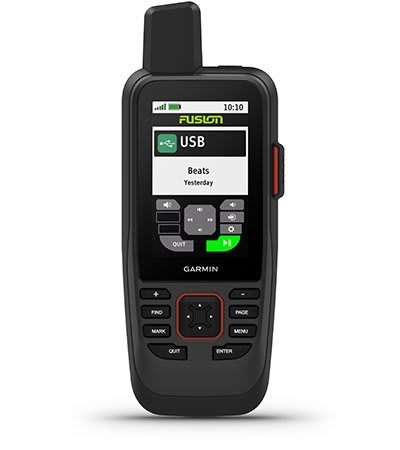

When paired with compatible Garmin chartplotters and instruments, the handheld can display real-time boat data directly on screen. It also supports convenient remote control of select onboard Fusion marine products, bringing key system information and controls into one portable device.
Durability
Built for life on the water, the GPSMAP® 86sci is water-resistant to IPX7 and is designed to float. It meets MIL-STD-810 (thermal, shock, water), and it uses chemically strengthened glass over a transflective, 65K color TFT display with 240 x 400 pixels for clear viewing in changing light on deck.
Navigation
For more consistent guidance while underway, the GPSMAP® 86sci includes an adjustable GPS filter that helps smooth speed and heading indications as conditions change over swells. This marine-focused approach supports clearer tracking feedback when the boat is moving, helping keep navigation information easier to interpret at a glance.
Connectivity
A rechargeable, internal lithium-ion battery supports up to 35 hours at 10-minute tracking and up to 200 hours at 30-minute tracking (power save mode). Connectivity options include Wi-Fi®, Bluetooth®, and ANT+®, and the unit supports high speed microUSB and NMEA 0183 compatible interfacing for flexible onboard integration and updates.
| Part Number | 010-02236-02 |
|---|---|
| Model | GPSMAP® 86sci |
| Configuration | Marine Handheld With BlueChart® g3 Coastal Charts and inReach® Capabilities |
| Lens material | Chemically strengthened glass |
| Dimension | 2.65" x 7" x 1.7" (6.75w x 17.8h x 4.4d cm) |
| Weight | 9.59 oz (272 g) |
| Water rating | IPX7 |
| MIL-STD-810 | Yes (thermal, shock, water) |
| Display Type | Transflective, 65K color TFT |
| Display Size | 1.5"W x 2.5"H (3.8 x 6.3 cm); 3" diag (7.6 cm) |
| Display resolution | 240 x 400 pixels |
| Battery Type | Rechargeable, internal lithium-ion |
| Battery life | Up to 35 hours at 10-minute tracking; up to 200 hours at 30-minute tracking (power save mode) |
| Memory/History | 16 GB (user space varies based on included mapping) |
| Interface | High speed microUSB and NMEA 0183 compatible |
| GPSMAP 86sci handheld with BlueChart® g3 for the U.S. |
| Powered mount |
| Lanyard |
| USB to Micro USB cable |
| USB to 2 pin cable |
| Mounting hardware |
| Documentation |
| Interactive SOS | Yes |
|---|---|
| Weather | Yes |
| Send and receive text messages to SMS and email | Yes |
| Send and receive text messages to other inReach device | Yes |
| Send and receive group messages | Yes |
| Exchange locations with other inReach device | Yes |
| MapShare compatible with tracking | Yes |
| Virtual keyboard for custom messaging | Yes |
| Send waypoints to MapShare during trip | Yes |
| Send route selection to MapShare during trip | Yes |
| inReach remote compatible | Yes |
NOTICE: Some jurisdictions regulate or prohibit the use of satellite communications devices. It is the responsibility of the user to know and follow all applicable laws in the jurisdictions where the device is intended to be used.
| Maps & Memory | Ability to add maps, Basemap, Activities, Rinex logging |
|---|---|
| Sensors | GPS, Galileo, Barometric altimeter, High-sensitivity receiver, GPS compass (while moving) |
| Daily Smart Features | Connect IQ™ (downloadable watch faces, data fields and apps), Smart notifications on handheld, Weather forecasts, Weather, Compatible with Garmin Messenger app, VIRB® Remote, Pairs with Garmin Connect™ mobile |
| Safety and Tracking Features | LiveTrack |
| Tactical Features | XERO™ Locations |
| Outdoor Recreation | Area calculation, Fish forecast, Sun and moon information, Picture viewer, LED beacon flashlight |
| Mapping & Navigation | Point-to-point navigation, TracBack® |
| Outdoor Applications | Compatible with Garmin Explore™ app, Garmin Explore website compatible, Smart switching between Wi-Fi, Cellular and Satellite with Garmin Messenger app |
| Preloaded maps | Yes (BlueChart® g3 included) |
|---|---|
| Map segments | 15,000 |
| Satellite imagery | Yes (direct to device) |
| Includes searchable points of interests (parks, campgrounds, scenic lookouts and picnic sites) | Yes (downloadable from Garmin Express™) |
| Displays national, state and local parks, forests and wilderness areas | Yes (downloadable from Garmin Express™) |
| External memory storage | Yes (32 GB max microSD™ card) |
| Waypoints | 10,000 |
| Waypoints/favorites/locations | 10,000 |
| Courses | 250, 200 course points per course |
| Tracks | 250 |
| Navigation Track Log | 20,000 points, 250 saved gpx tracks, 300 saved fit activities |
| Navigation Routes | 250, 250 points per route; 50 points auto routing |
| Geocaching-friendly | Yes (Geocache Live) |
|---|---|
| Custom maps compatible | Yes (500 custom map tiles) |
To access the Iridium® satellite network for live tracking and messaging, including SOS capabilities, an active satellite subscription is required. Some jurisdictions regulate or prohibit the use of satellite communications devices. It is the responsibility of the user to know and follow all applicable laws in the jurisdictions where the device is intended to be used.
Active satellite subscription required
Battery life may vary depending on usage; battery is user-rechargeable
Wi-Fi is a registered trademark of the Wi-Fi Alliance. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.
