The Garmin GPSMAP® 86i in the Marine Handheld With inReach® Capabilities configuration is built for boaters who want confident navigation plus global communication features in a handheld. Designed to feel at home on the water, it is water-resistant to IPX7 and it floats, making it a practical choice for fishing, sailing, and cruising.
Along with a worldwide basemap and onboard sensors for navigation, GPSMAP 86i can connect wirelessly with compatible onboard Garmin marine electronics to stream boat data to the handheld and add convenient control for select systems. For time away from cell service, inReach features support two-way messaging and interactive SOS through the Iridium® satellite network, with battery life rated up to 35 hours at 10-minute tracking.
Display

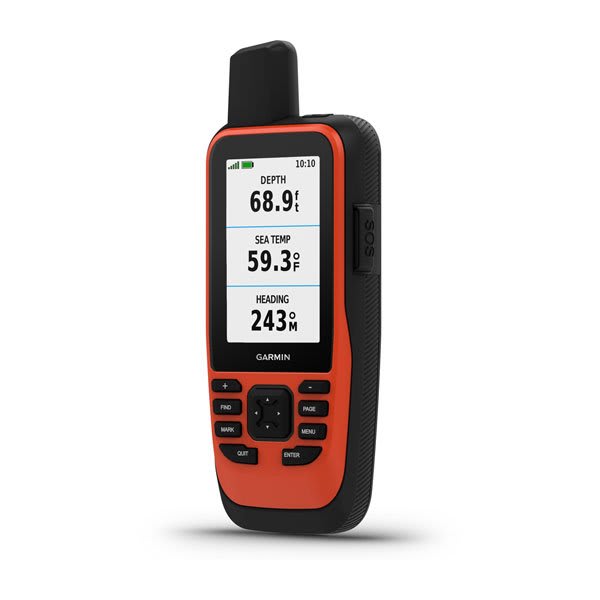

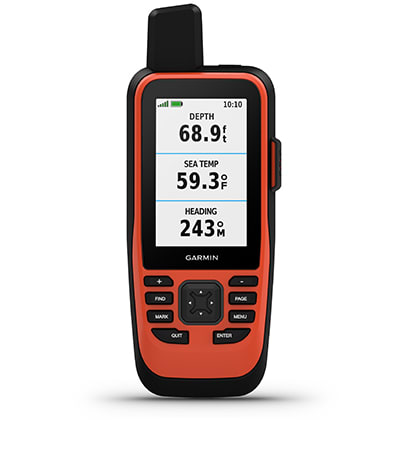

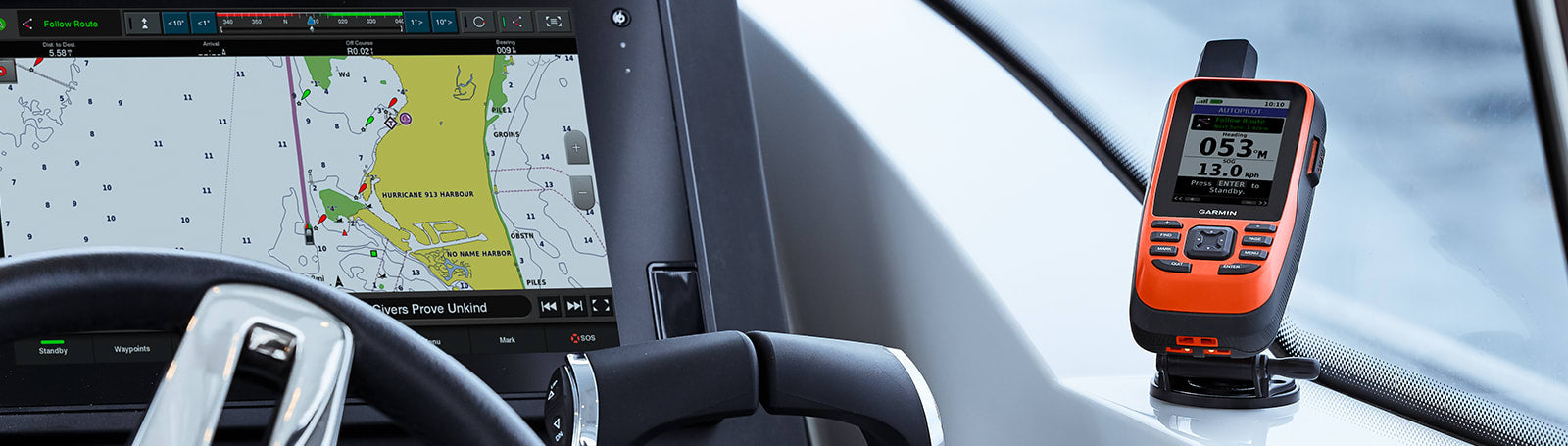

When paired with compatible Garmin chartplotters and instruments, GPSMAP 86i can display real-time boat data directly on the handheld. This makes it easier to keep key information in view while moving around the deck, without needing to stay at the helm to check the main display.
Connectivity

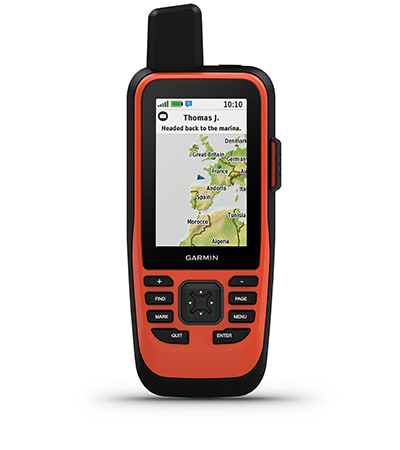

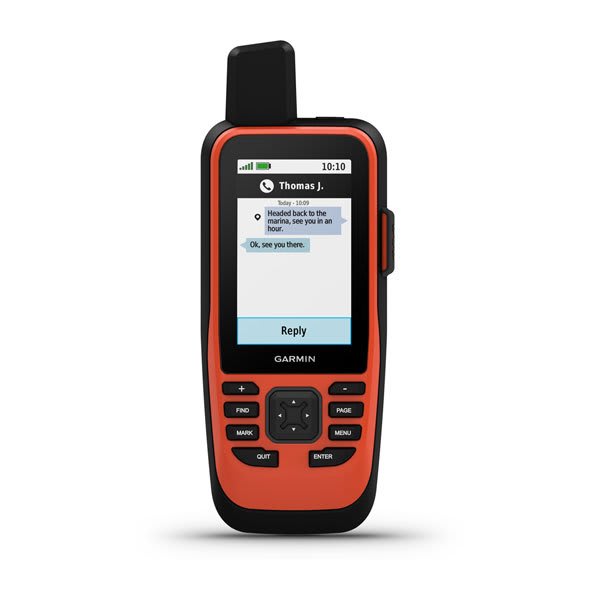

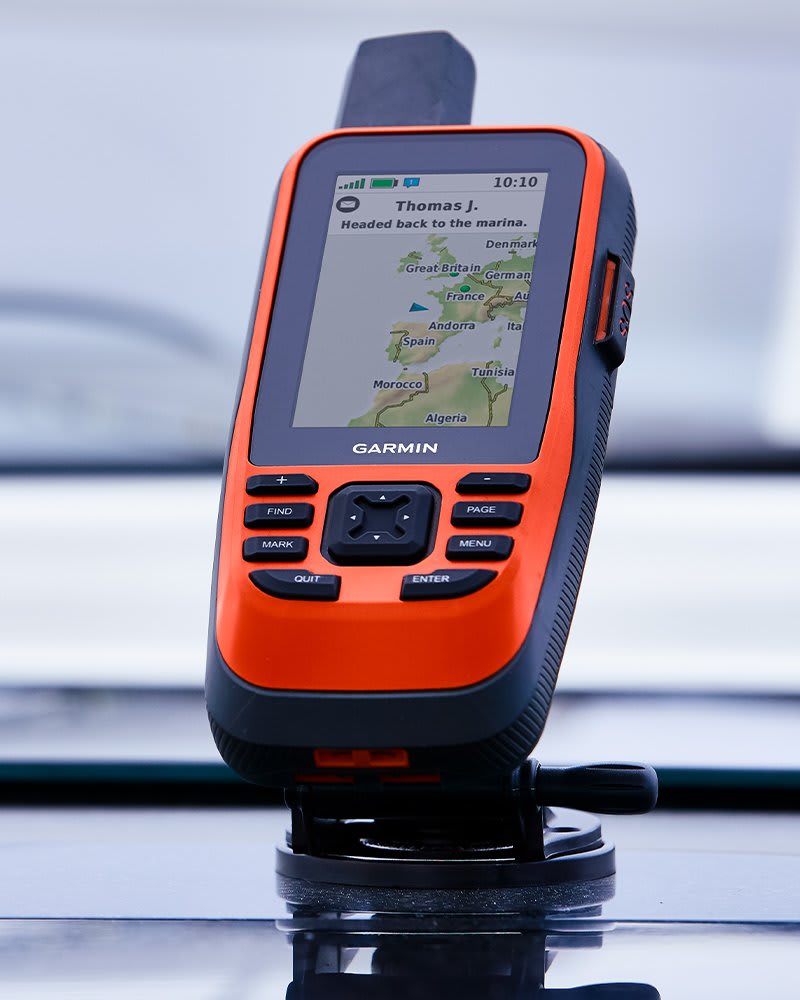

Built-in inReach capabilities use the Iridium® satellite network for two-way communication, including sending and receiving custom and preset text messages or emails with delivery confirmation. In an emergency, the device can initiate an interactive SOS message to the Garmin IERCC, a 24/7 staffed emergency response coordination center.
Navigation

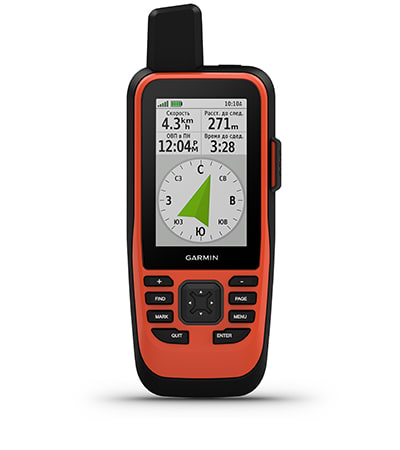

For more consistent readouts on the water, GPSMAP 86i includes an adjustable GPS filter designed to smooth speed and heading indications as the boat moves over swells. This helps deliver steadier tracking information during changing conditions while underway.
Navigation

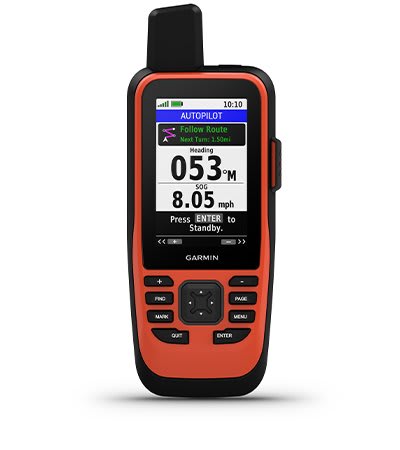

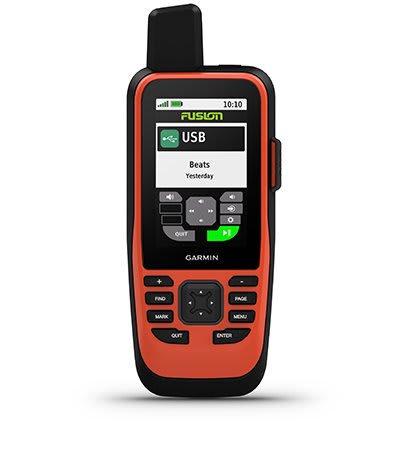

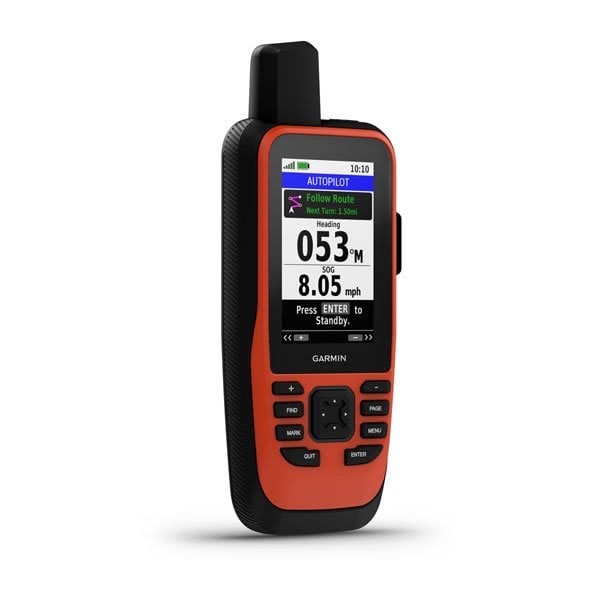

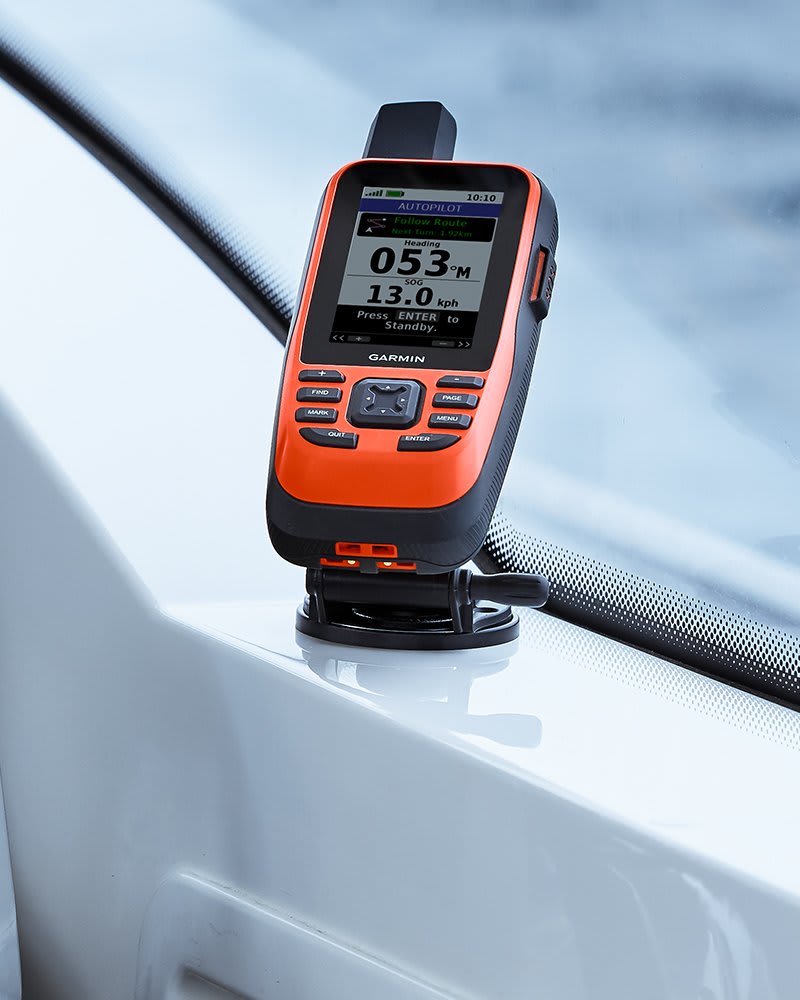

GPSMAP 86i adds practical on-the-water integration when used with compatible equipment. It can provide remote operation of select onboard Fusion marine products via Fusion-link Audio. It can also act as an autopilot remote through the autopilot app, letting the user change heading, engage pattern steering, and follow a GPS route even when not at the helm.
Connectivity

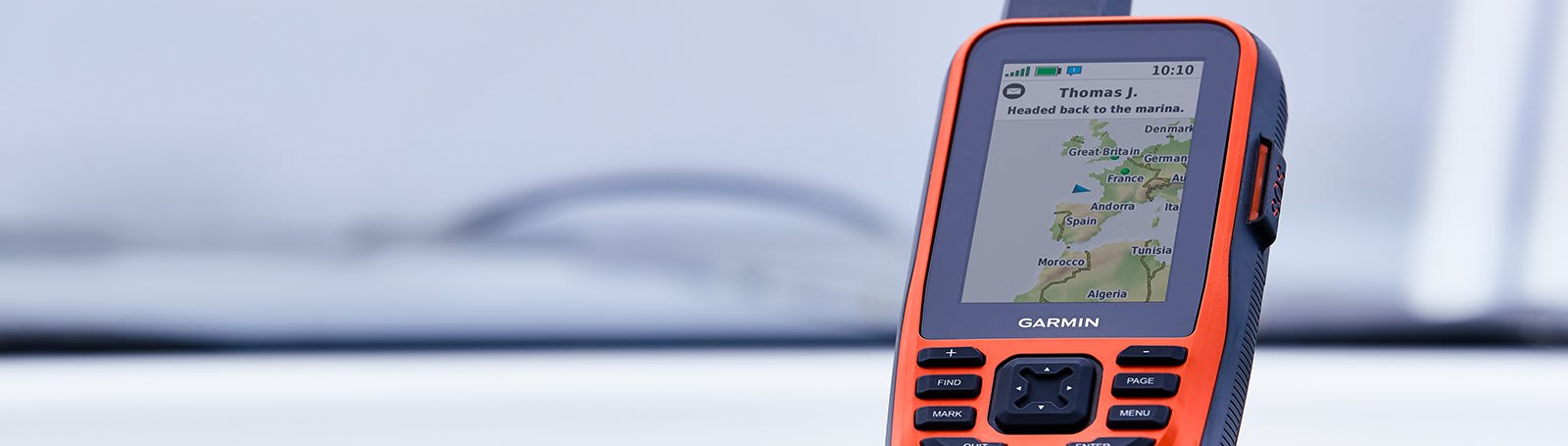

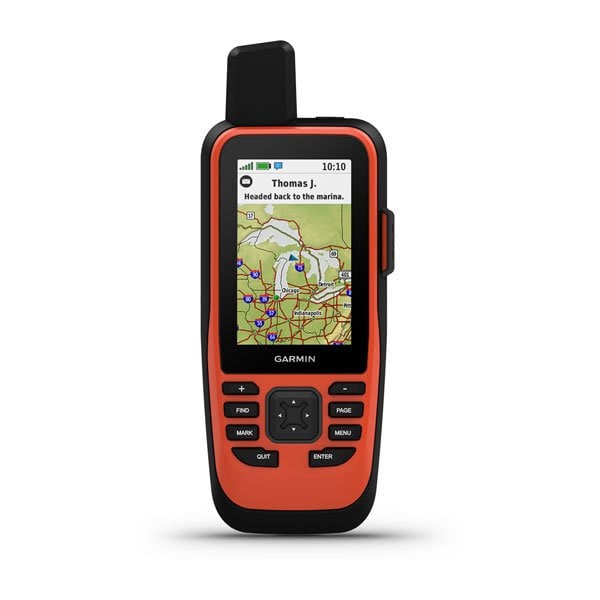

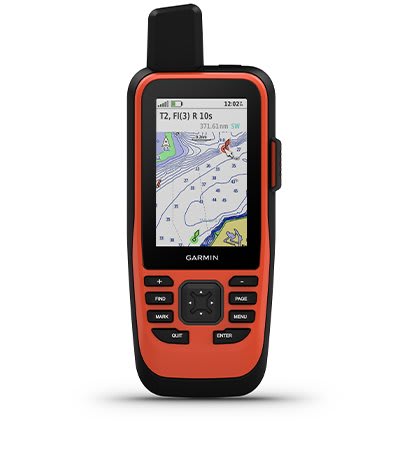

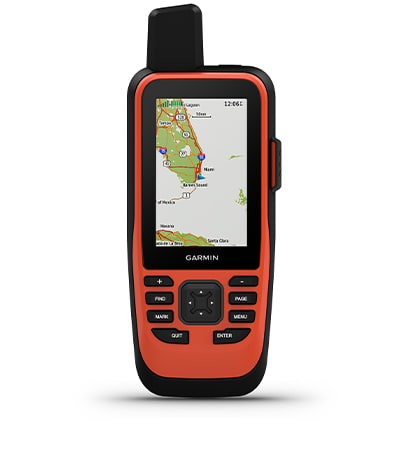

Out of the box, GPSMAP 86i includes a worldwide shaded relief basemap that covers oceans, seas, major lakes and rivers, along with political boundaries and time zone information. For expanded coastal detail, it supports optional BlueChart g3 coastal charts that combine Garmin and Navionics data. It also supports direct-to-device satellite imagery and accepts external storage with a 32 GB max microSD™ card.
Durability
Sized at 2.65" x 7" x 1.7" (6.75w x 17.8h x 4.4d cm) and weighing 9.59 oz (272 g), GPSMAP 86i is designed for handheld use with a transflective, 65K color TFT display at 240 x 400 pixels. It meets MIL-STD-810 for thermal, shock, and water, carries an IPX7 water rating, and uses a rechargeable, internal lithium-ion battery rated up to 35 hours at 10-minute tracking; up to 200 hours at 30-minute tracking (power save mode).
| Part Number | 010-02236-00 |
|---|---|
| Model | GPSMAP® 86i |
| Configuration | Marine Handheld With inReach® Capabilities |
| Lens material | Chemically strengthened glass |
| Dimension | 2.65" x 7" x 1.7" (6.75w x 17.8h x 4.4d cm) |
| Weight | 9.59 oz (272 g) |
| Water rating | IPX7 |
| MIL-STD-810 | Yes (thermal, shock, water) |
| Display Type | Transflective, 65K color TFT |
| Display Size | 1.5"W x 2.5"H (3.8 x 6.3 cm); 3" diag (7.6 cm) |
| Display resolution | 240 x 400 pixels |
| Battery Type | Rechargeable, internal lithium-ion |
| Battery life | Up to 35 hours at 10-minute tracking; up to 200 hours at 30-minute tracking (power save mode) |
| Memory/History | 16 GB (user space varies based on included mapping) |
| Interface | High speed microUSB and NMEA 0183 compatible |
| GPSMAP 86i handheld with worldwide basemap |
| Powered mount |
| Lanyard |
| USB to Micro USB cable |
| USB to 2 pin cable |
| Mounting hardware |
| Documentation |
| Interactive SOS | Yes |
|---|---|
| Weather | Yes |
| Send and receive text messages to SMS and email | Yes |
| Send and receive text messages to other inReach device | Yes |
| Send and receive group messages | Yes |
| Exchange locations with other inReach device | Yes |
| MapShare compatible with tracking | Yes |
| Virtual keyboard for custom messaging | Yes |
| Send waypoints to MapShare during trip | Yes |
| Send route selection to MapShare during trip | Yes |
| inReach remote compatible | Yes |
NOTICE: Some jurisdictions regulate or prohibit the use of satellite communications devices. It is the responsibility of the user to know and follow all applicable laws in the jurisdictions where the device is intended to be used.
| Maps & Memory | Ability to add maps, Basemap, Activities, Rinex logging |
|---|---|
| Sensors | GPS, Galileo, Barometric altimeter, High-sensitivity receiver, GPS compass (while moving) |
| Daily Smart Features | Connect IQ™ (downloadable watch faces, data fields and apps), Smart notifications on handheld, Weather forecasts, Weather, Compatible with Garmin Messenger app, VIRB® Remote, Pairs with Garmin Connect™ mobile |
| Safety and Tracking Features | LiveTrack |
| Tactical Features | XERO™ Locations |
| Outdoor Recreation | Area calculation, Fish forecast, Sun and moon information, Picture viewer, LED beacon flashlight |
| Mapping & Navigation | Point-to-point navigation, TracBack® |
| Outdoor Applications | Compatible with Garmin Explore™ app, Garmin Explore website compatible, Smart switching between Wi-Fi, Cellular and Satellite with Garmin Messenger app |
| Map segments | 15,000 |
|---|---|
| Satellite imagery | Yes (direct to device) |
| Includes searchable points of interests (parks, campgrounds, scenic lookouts and picnic sites) | Yes (downloadable from Garmin Express™) |
| Displays national, state and local parks, forests and wilderness areas | Yes (downloadable from Garmin Express™) |
| External memory storage | Yes (32 GB max microSD™ card) |
| Waypoints | 10,000 |
| Waypoints/favorites/locations | 10,000 |
| Courses | 250, 200 course points per course |
| Tracks | 250 |
| Navigation Track Log | 20,000 points, 250 saved gpx tracks, 300 saved fit activities |
| Navigation Routes | 250, 250 points per route; 50 points auto routing |
| Geocaching-friendly | Yes (Geocache Live) |
|---|---|
| Custom maps compatible | Yes (500 custom map tiles) |
To access the Iridium® satellite network for live tracking and messaging, including SOS capabilities, an active satellite subscription is required. Some jurisdictions regulate or prohibit the use of satellite communications devices. It is the responsibility of the user to know and follow all applicable laws in the jurisdictions where the device is intended to be used.
Active satellite subscription required
Battery life may vary depending on usage; battery is user-rechargeable
