The Honda CRF Rear Direct Drive Hub Wheel Bearing Kit from Warp 9 Racing is a complete rebuild kit for servicing the rear direct drive hub wheel bearing and seal stack on compatible Honda CR/CRF models. It includes three 6905 bearings (42mmx25mm), two 33-43-7 seals, and a distance tube to replace the key wear items in the hub during maintenance or a full refresh. This kit is listed for CR125R 00–07, CR250R 00–07, CRF250R 04–current, CRF250RX 19–current, CRF250X 04–17, CRF450L 19–20, CRF450R 02–current, CRF450RL 21–current, CRF450R-S 22–current, CRF450RWE 19–current, CRF450RX 17–current, and CRF450X 05–current, plus additional models noted as Warp 9 hub only.

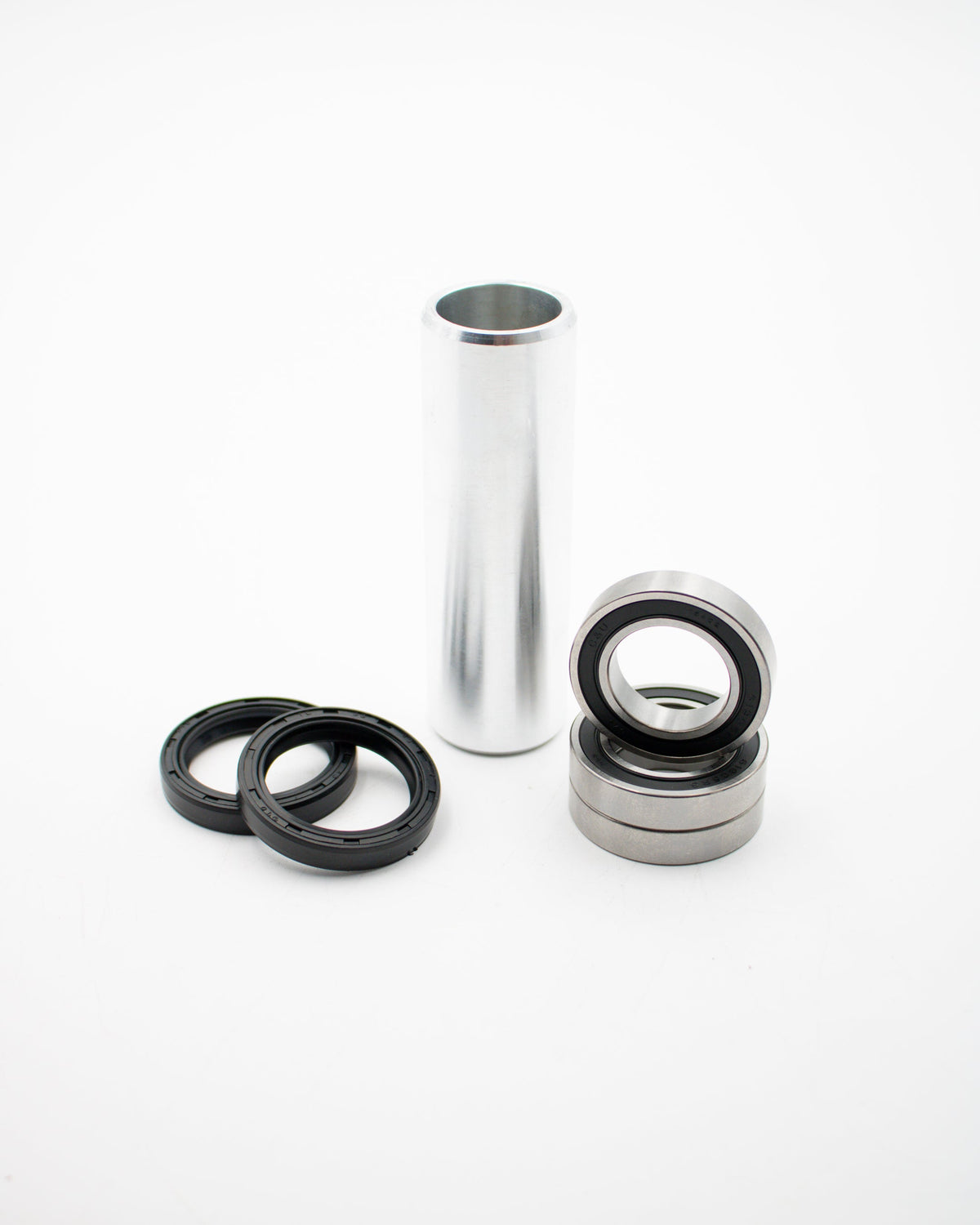

This kit include the following: 3- 6905 bearings (42mmx25mm), 2- 33-43-7 seals, and a distance tube. Replacing the bearings, seals, and distance tube together helps restore proper hub support and sealing when rebuilding a rear direct drive hub assembly.
Fitment listed in the source covers Honda CR125R 00–07 and CR250R 00–07, plus CRF250R 04–current, CRF250RX 19–current, CRF250X 04–17, CRF450L 19–20, CRF450R 02–current, CRF450RL 21–current, CRF450R-S 22–current, CRF450RWE 19–current, CRF450RX 17–current, and CRF450X 05–current.
Additional fitment entries are specifically marked as “Warp 9 Hub Only,” meaning the kit is listed for these models only when using a Warp 9 hub: CR125, CR250, CR500, XR250, XR400, XR600, and XR650L (Warp 9 Hub Only).
Honda CRF rear direct drive hub wheel bearing kit / rebuild kit for the listed Honda CR/CRF models and for certain additional models when used with a Warp 9 hub only.
| Bearing type/code | 6905 |
|---|---|
| Bearing size | 42mmx25mm |
| Seal size/code | 33-43-7 |
| Kit / code | 103R 103RA |
| SKU | REBUILD KIT 103R |
