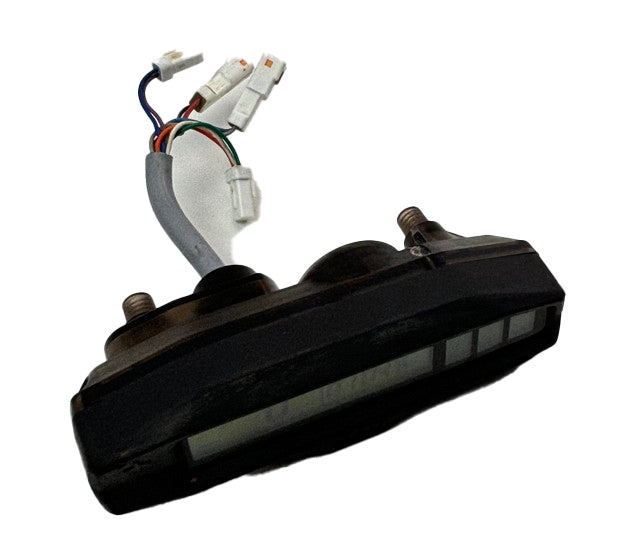

KTM OEM Digital Tach / Dash – Part #77714069400
Restore your enduro’s factory cockpit with the genuine KTM Digital Tach/Speedometer (21" wheel calibration). This OEM dash displays speed, engine service hours, odometer, trip masters, average speed, stopwatch/lap timing, and clock—exactly like stock and fully switchable between km/h and mph.
Key Features
-
Factory-correct replacement: Genuine KTM instrument cluster for EXC/EXC-F/XC-W platforms using a 21" front wheel sensor.
-
Multiple display modes: SPEED, H (service hours), ODO, TR1/TR2 (trip masters), A1/A2 (average speed), S1/S2 (stopwatches), LAP (lap timer), and CLK (clock).
-
Units: Quick setup to toggle between km/h and mph.
-
Plug-and-play: Works with the stock front wheel speed sensor & magnet pickup on KTM enduro models.
Typical Applications
This part number is listed in KTM parts fiches for a range of enduro models, including (examples):
- 2017–2019 KTM 250/300 XC-W & XC-W TPI
- 2017–2020 KTM 350/450/500 EXC-F & XCF-W
Important: Always verify fitment by VIN on your exact year/model before ordering.
Supersession
Part 77714069400 has been superseded in KTM catalogs by 77714069600. If 69400 is unavailable, KTM directs to order 69600.
What’s Included
Digital instrument unit (dash) only. Reuse your existing mounting, wiring, sensor, and magnet unless replacement is required.
Installation Notes
- After installation, enter the dash setup to confirm wheel size, units (km/h or mph), and preferred display modes.
- Trip/average/stopwatch functions can be reset or configured from the dash button per the owner’s manual.
Genuine KTM Part #77714069400 (replaced by #77714069600). Sold by AllAmericanKTM.com.
