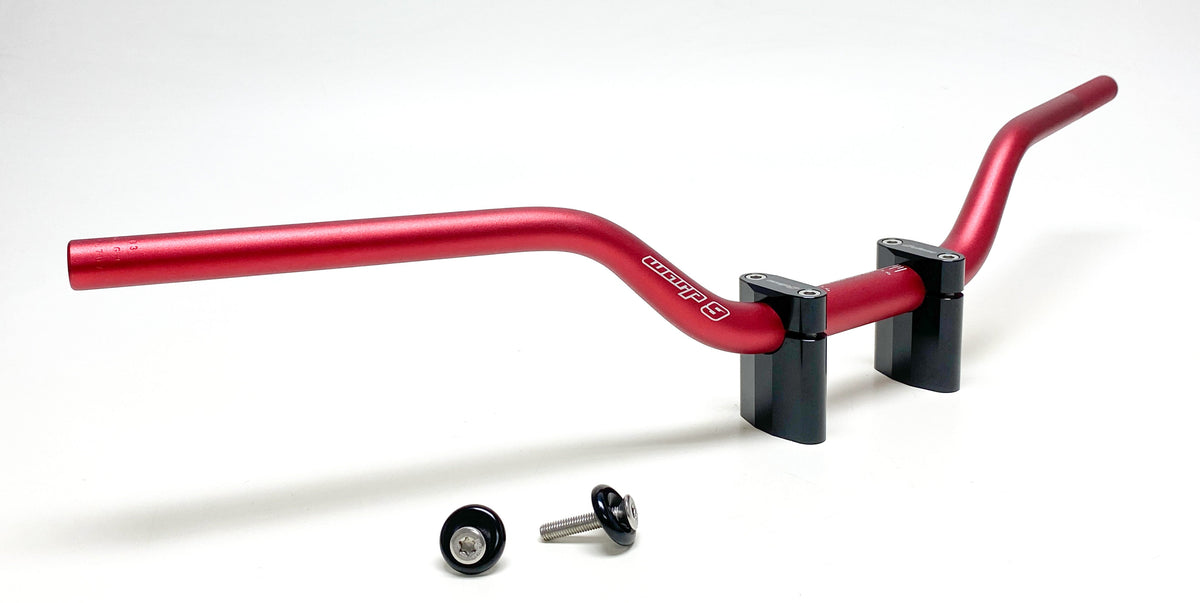

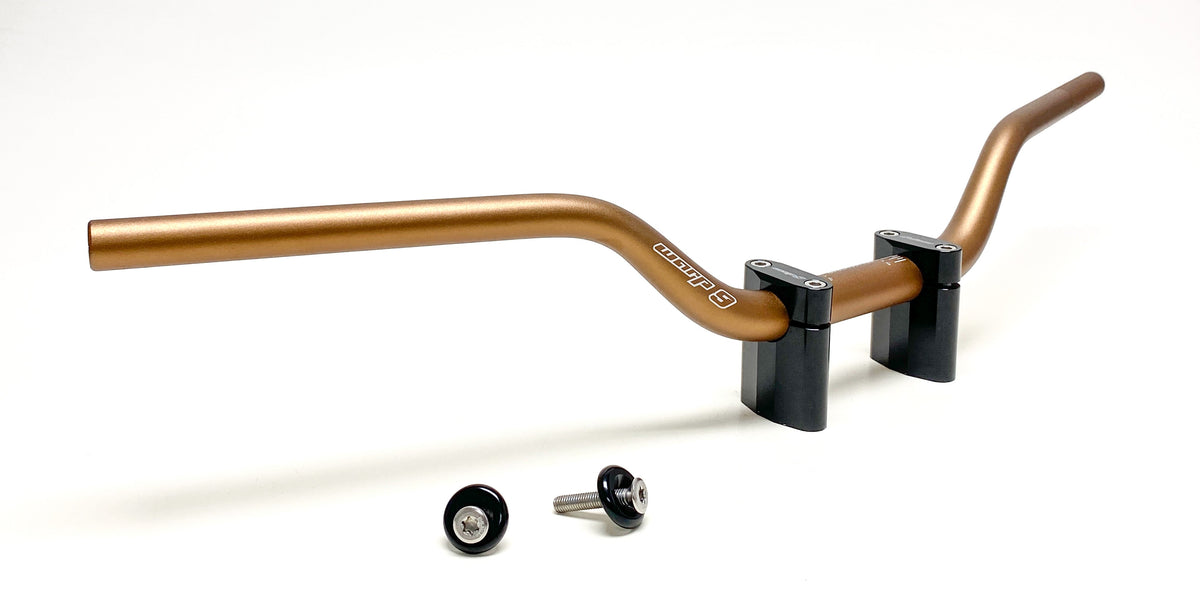

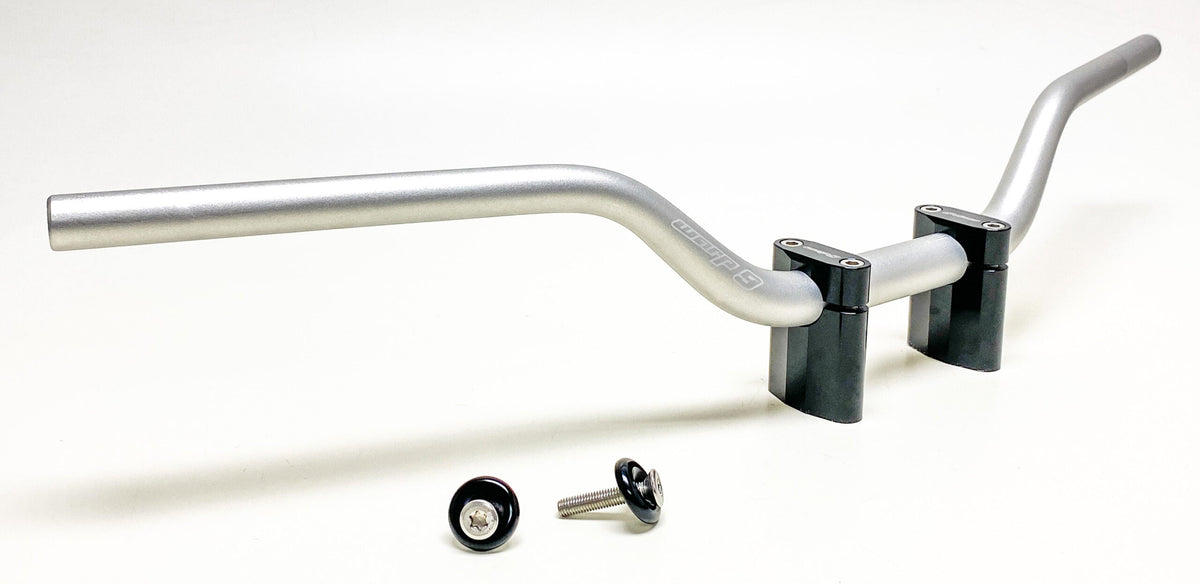

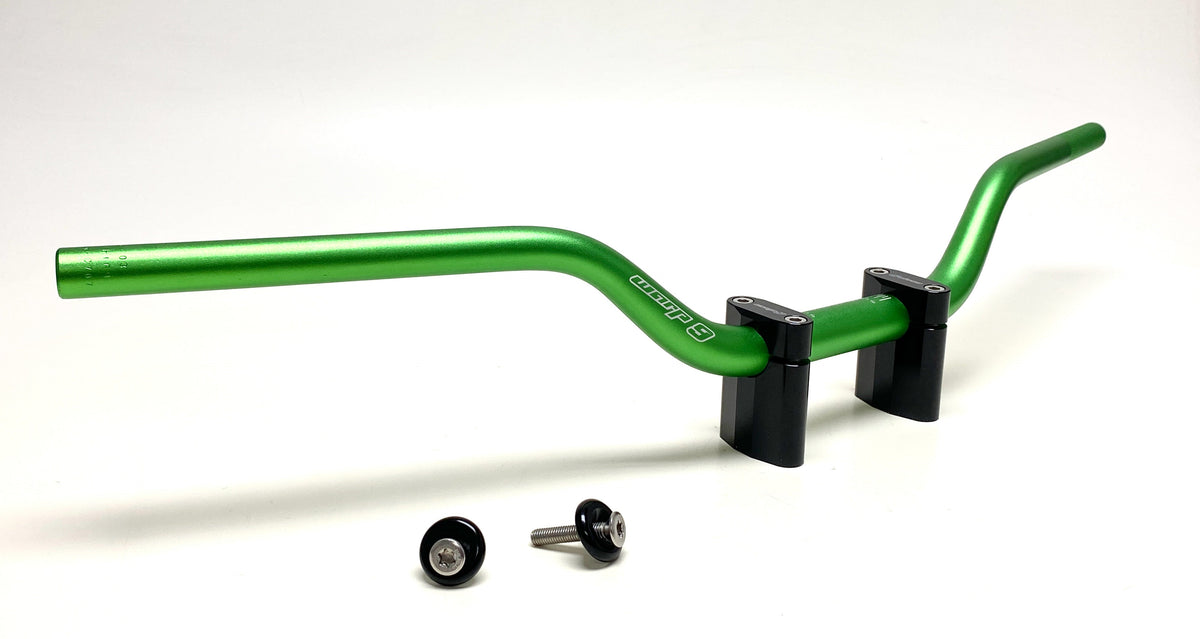

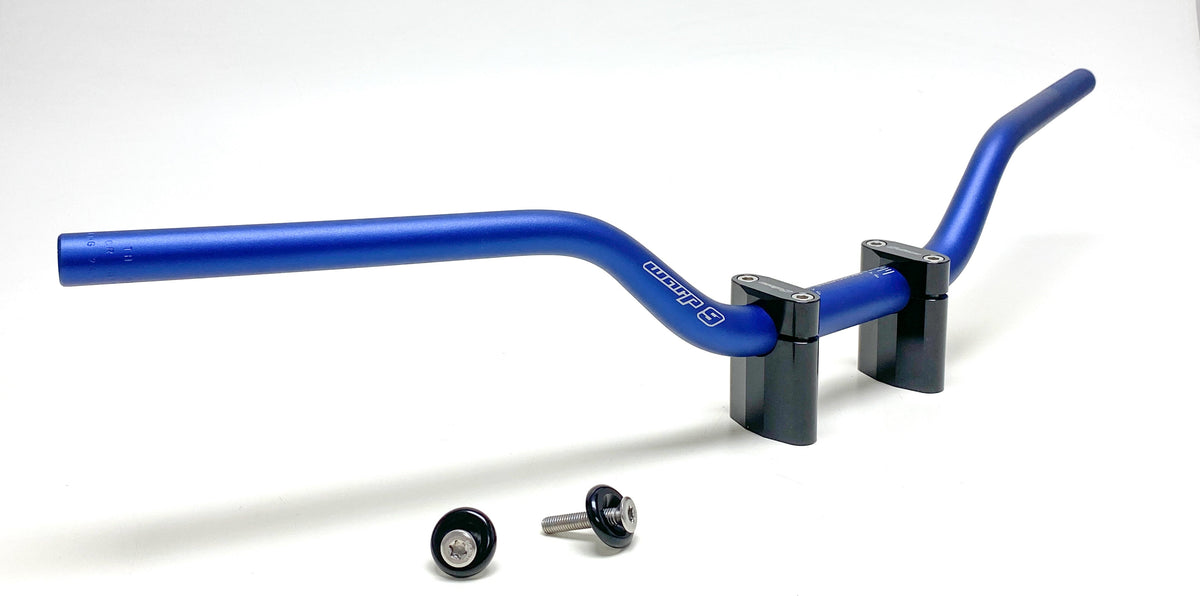

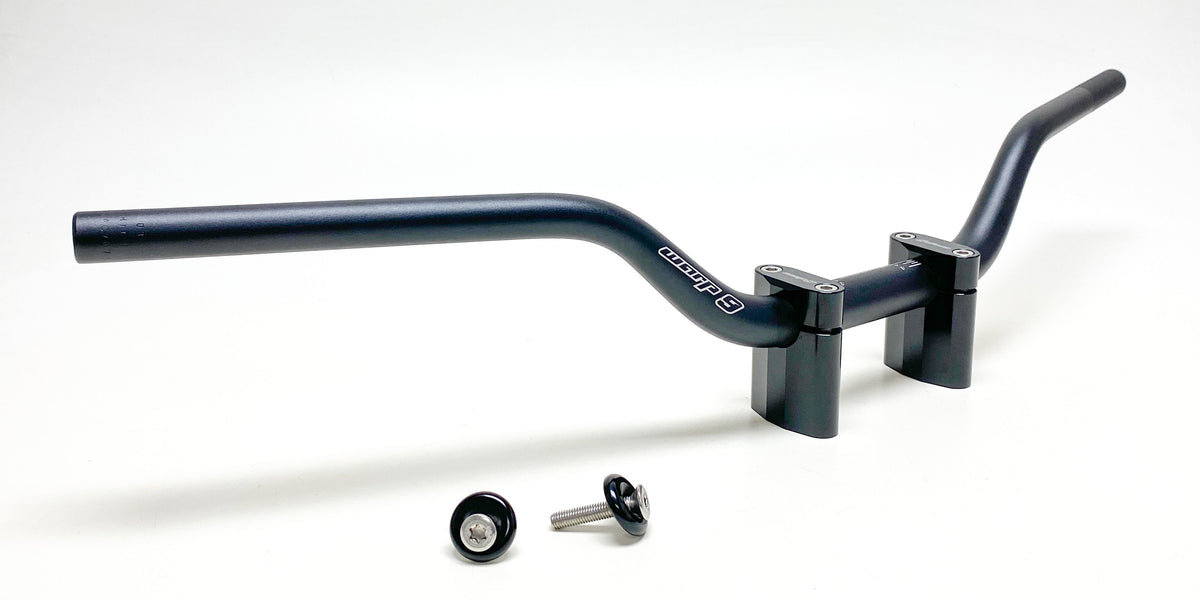

Warp 9 Racing MX/Offroad 1-1/8" Tapped Handlebars are oversized, tapered handlebars built to simplify hand guard mounting and improve durability in offroad use. Each bar end is plugged and tapped with an M8x1.25 threaded insert to create a secure, reliable mounting point for aftermarket wrap-around hand guards, helping prevent expansion plugs from pulling out or spinning after impacts. Not running hand guards? Each set includes aluminum grip guards and stainless bolts to help protect your grips and sensitive throttle tube in case of a get-off. The 1-1/8 inch (28.6mm) clamping diameter tapers down to 7/8 inch (22.2mm) to fit standard controls, and the bars are made from 7010 T6 aluminum tubing with computer-extruded variable wall thickness to reduce vibration and enhance comfort.

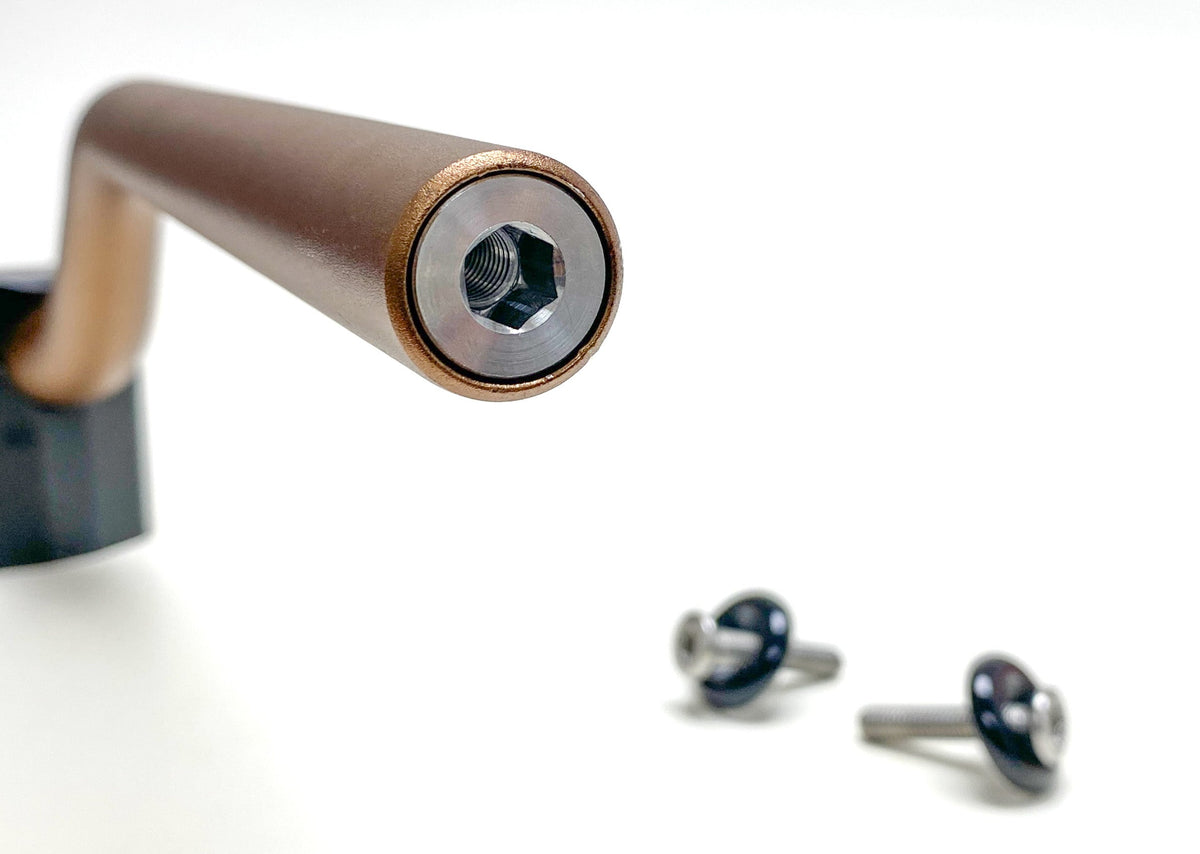

These handlebars eliminate the hassle of hand guard expansion plugs by using bar ends that are plugged and tapped with an M8x1.25 threaded insert. That threaded mounting point is intended for all aftermarket wrap-around hand guards, helping keep the mounting secure and reliable. The design is described to reduce the chance of plugs pulling out or spinning during crashes and impacts with obstacles.

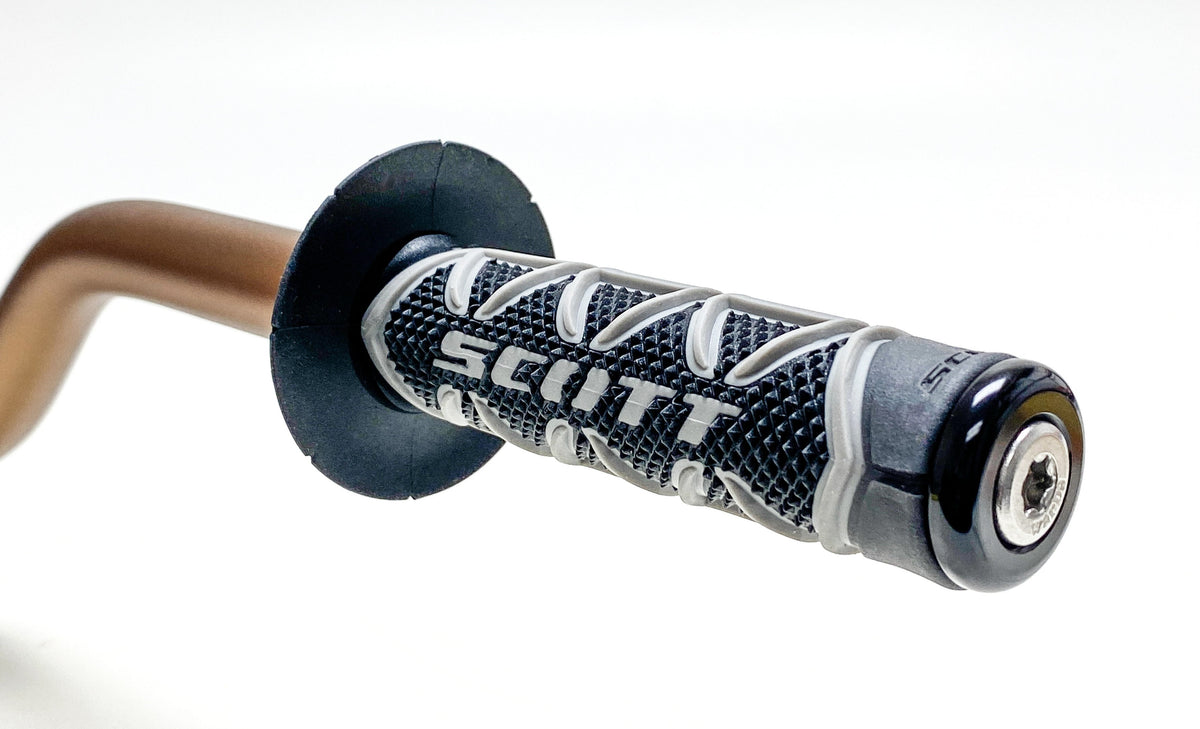

Each set includes aluminum grip guards and stainless bolts. When hand guards are not being used, the included grip guards provide added protection for your grips and help safeguard the more delicate throttle tube during a get-off. This included hardware is part of the handlebar kit and is intended to keep the bar ends protected even without wrap-around guards installed.
Built with an oversized 1-1/8 inch (28.6mm) clamping diameter that tapers down to 7/8 inch (22.2mm) for standard controls. The handlebars are crafted from 7010 T6 aluminum tubing and use computer-extruded variable wall thickness, which is stated to reduce vibration while improving overall performance and comfort. Bend options include CR HIGH and KTM SX.
Warp 9 Racing tapped handlebars for MX/offroad use with threaded bar ends for wrap-around hand guard mounting, plus included grip protection for bikes not running hand guards.
| Product name | MX/Offroad 1-1/8" Tapped Handlebars |
|---|---|
| Supplier | Warp 9 Racing |
| Clamp diameter | 1-1/8 inch |
| Clamp diameter (metric) | 28.6mm |
| Control diameter | 7/8 inch |
| Control diameter (metric) | 22.2mm |
| Material | 7010 T6 aluminum tubing |
| Bar-end thread | M8x1.25 |
| Bend options | CR HIGH; KTM SX |

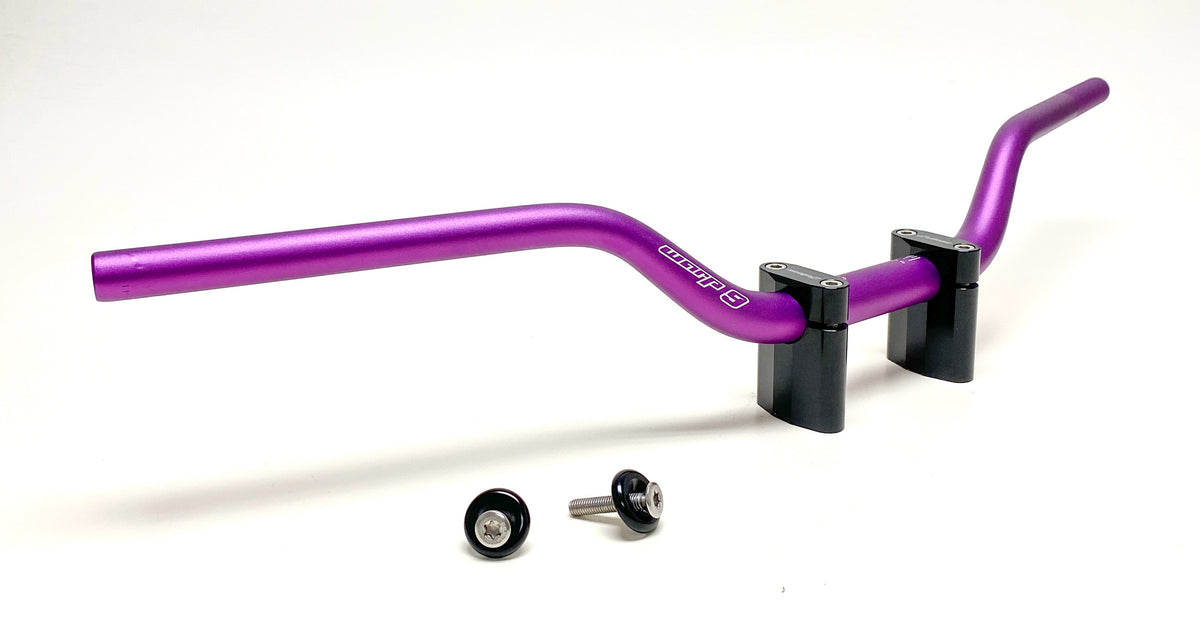

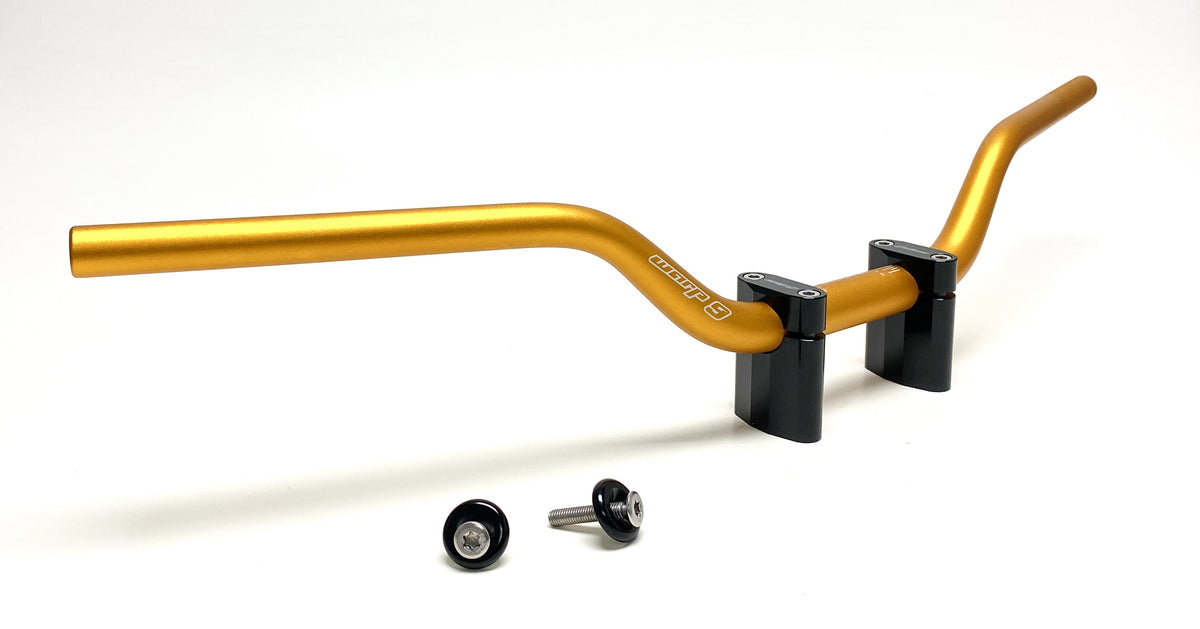

| Color options | Silver; Black; Red; Blue; Magnesium; Green; Gold; Purple |
| Included | Aluminum grip guards; stainless bolts |

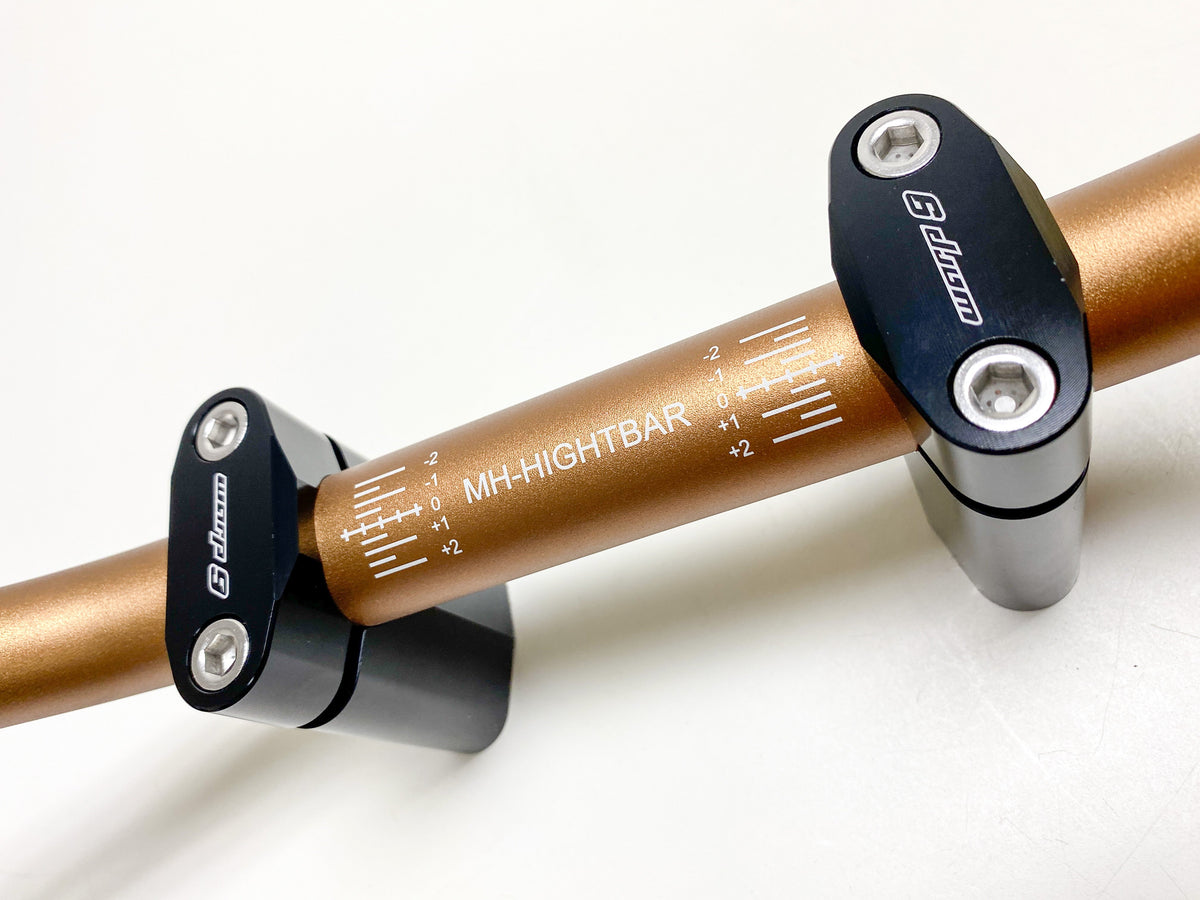

| Not included | Pictured bar mounts (Note: Does not include pictured bar mounts.) |
| Bend spec reference | See Warp 9 Tapped Bar Specs table below for bend dimensions |
| Bend | Width | Height | Rise | Clamp Area Width | Sweep |
|---|---|---|---|---|---|
| CR HIGH BEND | 790 | 101 | 71 | 142 | 73 |
| KTM SX BEND | 808 | 95 | 70 | 152 | 38 |
