KTM · PowerParts · Handlebars/instruments/electrics

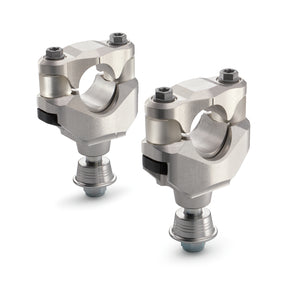

The KTM Progressive Handlebar Damping System (PHDS) is a CNC milled handlebar mount designed to add effective damping through integrated rubber inserts. Built from Aluminium with an Anodized surface, it helps reduce harsh feedback at the bars by damping hard shocks and absorbing chassis and engine vibrations.
This PHDS assembly, part number 79001939500, is aimed at riders who want a more comfortable feel while maintaining confident control. In addition to improved isolation, it provides additional handlebar damping in the horizontal direction and is engineered to maintain optimum steering precision. It replaces the standard damping rubbers used in the handlebar mount, and further dampers are available in three different degrees of hardness (soft, medium, hard) for individual adjustment.
By absorbing chassis and engine vibrations, the PHDS helps calm the sensation of buzz and repetitive feedback reaching the rider through the handlebar area. The rubber insert design is intended to be gentle on wrists and shoulder joints while still keeping the cockpit feel controlled and connected.
The PHDS is designed to damp hard shocks that can otherwise translate sharply into the rider’s hands and upper body. This added isolation supports longer, more comfortable riding by smoothing out abrupt hits without relying on a change to the handlebar itself.
Additional handlebar damping in the horizontal direction is paired with a focus on optimum steering precision. For riders who want to tailor feel, further dampers are available in three different degrees of hardness (soft, medium, hard) to support individual adjustment based on preference.
Comfort
This Progressive Handlebar Damping System uses a CNC milled handlebar mount combined with damping rubber inserts to reduce what the rider feels at the bars. The system targets both the damping of hard shocks and the absorption of chassis and engine vibrations. The result is a setup intended to be gentle on wrists and shoulder joints, helping riders maintain comfort while keeping a purposeful, controlled interface between rider and motorcycle.
Design
The PHDS is built to replace the standard damping rubbers used in the handlebar mount. That makes it a focused upgrade for the handlebar support area rather than a broad cockpit overhaul. With added horizontal-direction damping and an emphasis on optimum steering precision, it’s a practical way to refine handlebar feel while keeping the mounting concept familiar to KTM riders.
| Part Number | 79001939500 |
|---|---|
| Product Line | KTM PowerParts |
| Category | Handlebars/instruments/electrics > Handlebar supports |
| Materials | Aluminium |
| Surface | Anodized |
| Model — Model Years |
|---|
| 125 SX — 2016–2022 |
| 125 XC — 2021–2022 |
| 150 SX — 2016–2022 |
| 250 SX — 2016–2022 |
| 250 SX-F — 2016–2022 |
| 250 SX-F Factory Edition — 2016–2018 |
| 250 SX-F Prado — 2020 |
| 250 SX-F Troy Lee Designs — 2021 |
| 250 XC — 2016–2019 |
| 250 XC TPI — 2020–2022 |
| 250 XC-F — 2016–2022 |
| 300 XC — 2016–2019 |
| 300 XC TPI — 2020–2022 |
| 350 SX-F — 2016–2022 |
| 350 XC-F — 2016–2022 |
| 350 XC-F Factory Edition — 2022 |
| 350 XC-F Kailub Russel — 2021 |
| 450 SMR — 2022 |
| 450 SX-F — 2016–2022 |
| 450 SX-F Cairoli — 2020 |
| 450 SX-F Factory Edition — 2017–2021 |
| 450 SX-F Factory-Edition — 2016 |
| 450 SX-F Herlings Replica — 2019 |
| 450 XC-F — 2016–2022 |
| 690 Enduro R — 2019–2024, 2026–2027 |
| 690 Rally — 2027 |
| 690 SMC R — 2019–2024, 2026–2027 |
Vehicle compatibility as captured from KTM for article number 79001939500.
