Garmin · Handhelds

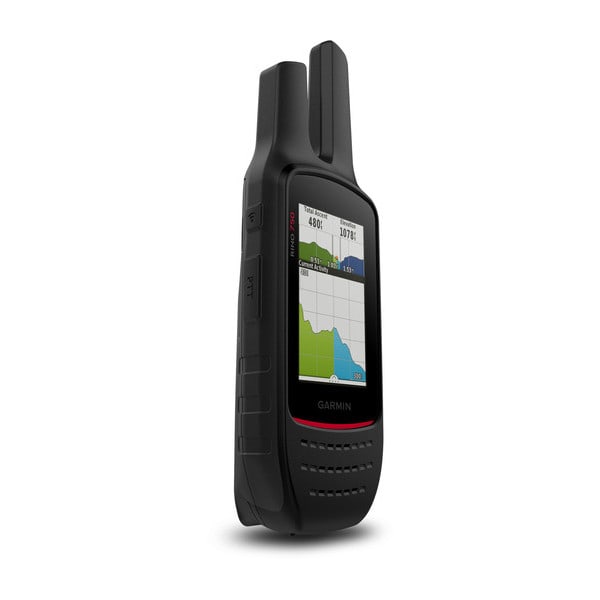

The Garmin Rino® 750 2-Way Radio/GPS Navigator with Touchscreen combines handheld GPS navigation with built-in GMRS two-way radio capability for groups that need to coordinate and keep moving outdoors. It pairs a 3.0" transflective, 65K color TFT touchscreen with rugged details like chemically strengthened glass and an IPX7 water rating.
This configuration is designed for riders, hunters, hikers, and anyone who wants point-to-point navigation plus the ability to send and receive GPS positions through location reporting. With support for GPS and GLONASS, a tilt-compensated 3-axis compass, and expandable mapping options, it’s built for navigating confidently while staying connected with the team.
Durability
The Rino® 750 operates on GMRS with 22 channels and includes 38 (CTCSS) and 83 (DCS) squelch codes to help manage chatter. It supports VOX (voice activation), vibration alert, and NOAA weather radio. Range is rated Up to 20 miles over GMRS, and it can store 50 contacts with 2000 track points each.
Display
A 3.0" transflective, 65K color TFT display is paired with a 240 x 400 pixels resolution for readable mapping and data views. The unit’s touchscreen interface makes it easy to work with navigation and radio functions on the device, while chemically strengthened glass is specified for the lens material.
Navigation
Rino® 750 includes a basemap and the ability to add maps, with support for 15000 map segments. It offers 1.7 GB of memory/history and can use external memory storage via a 32 GB max microSD™ card.
For handheld navigation, the Rino® 750 supports GPS and GLONASS and uses a high-sensitivity receiver. A tilt-compensated 3-axis compass is included, along with a barometric altimeter and GPS compass (while moving). Navigation tools also include point-to-point navigation, plus robust route and track handling, including Navigation Routes and a detailed Navigation Track Log (see specifications below for capacities).
The device supports automatic routing (turn by turn routing on roads) for outdoor activities, noted as available with optional mapping for detailed roads. For users who want expanded map content, the unit supports custom maps compatible with up to 500 custom map tiles and offers the ability to add maps. Several enhanced content layers such as hydrographic features and searchable points of interests are listed as requiring additional mapping.
Rino® 750 is built around a removable, rechargeable lithium-ion battery pack and is rated up to 14 hours of battery life, with up to 18 hours with optional AA battery pack at 2 watts (AA battery pack not included). It measures 2.6” x 7.9” x 1.6” (6.6 x 20.1 x 4.1 cm) and weighs 12.3 oz (348 g) with battery pack. Connection options include high speed mini USB and NMEA 0183 compatible interface, plus Bluetooth® and ANT+® wireless connectivity.
| Part Number | 010-01958-05 |
|---|---|
| Model | Rino® 750 |
| Configuration | 2-Way Radio/GPS Navigator with Touchscreen |
| Lens material | Chemically strengthened glass |
| Dimension | 2.6” x 7.9” x 1.6” (6.6 x 20.1 x 4.1 cm) |
| Weight | 12.3 oz (348 g) with battery pack |
| Water rating | IPX7 |
| Display Type | 3.0" transflective, 65K color TFT |
| Display Size | 1.53” x 2.55” (3.8 x 6.4 cm); 3.0" diag (7.6 cm) |
| Display resolution | 240 x 400 pixels |
| Battery Type | Removable, rechargeable lithium-ion battery pack; AA battery pack (not included) |
| Battery life | Up to 14 hours (up to 18 hours with optional AA battery pack at 2 watts) |
| Memory/History | 1.7 GB |
| Interface | High speed mini USB and NMEA 0183 compatible |
| Rino 750 |
| Lithium-ion battery pack |
| USB cable |
| AC charger |
| Carabiner clip |
| Documentation |
| General | Touchscreen |
|---|---|
| Maps & Memory | Ability to add maps, Basemap |
| Sensors | GPS, GLONASS, Barometric altimeter, High-sensitivity receiver, GPS compass (while moving) |
| Daily Smart Features | Connect IQ™ (downloadable watch faces, data fields and apps), Smart notifications on handheld, Weather forecasts, Weather, VIRB® Remote, Pairs with Garmin Connect™ mobile |
| Safety and Tracking Features | LiveTrack |
| Tactical Features | XERO™ Locations |
| Outdoor Recreation | Area calculation, Fish forecast, Sun and moon information, Picture viewer |
| Mapping & Navigation | Point-to-point navigation |
| Radio Features | VOX (voice activation), Location reporting (send and receive GPS positions), Vibration alert, NOAA weather radio |
| Automatic routing (turn by turn routing on roads) for outdoor activities | Yes (with optional mapping for detailed roads) |
|---|---|
| Map segments | 15000 |
| Includes detailed hydrographic features (coastlines, lake/river shorelines, wetlands and perennial and seasonal streams) | No (additional mapping needed) |
| Includes searchable points of interests (parks, campgrounds, scenic lookouts and picnic sites) | No (additional mapping needed) |
| Displays national, state and local parks, forests and wilderness areas | No (additional mapping needed) |
| External memory storage | Yes (32 GB max microSD™ card) |
| Waypoints/favorites/locations | 10000 |
| Tracks | 250 |
| Navigation Track Log | 20000 points, 200 saved tracks |
| Navigation Routes | 250, 250 points per route; 50 points auto routing |
| Geocaching-friendly | Yes (Geocache Live) |
|---|---|
| Custom maps compatible | Yes (500 custom map tiles) |
| Frequency band | GMRS |
|---|---|
| Channels | 22 |
| Squelch codes | 38 (CTCSS); 83 (DCS) |
| Range | Up to 20 miles over GMRS |
| Contacts | 50 contacts with 2000 track points each |
