The Warp 9 Racing Suzuki DRZ Rear Direct Drive Hub Wheel Bearing Kit is a complete rebuild kit designed to refresh the bearings and seals in a rear direct drive hub wheel. It includes two 6005 wheel bearings sized 47mmx25mm, two 32-47-7 seals, and the correct distance tube to support proper bearing spacing during assembly. This kit is specified for Suzuki DRZ400E, DRZ400K, DRZ400S, and DRZ400SM applications across the model years listed, and it is intended specifically for a Warp 9 hub only. Part identification: 106R.

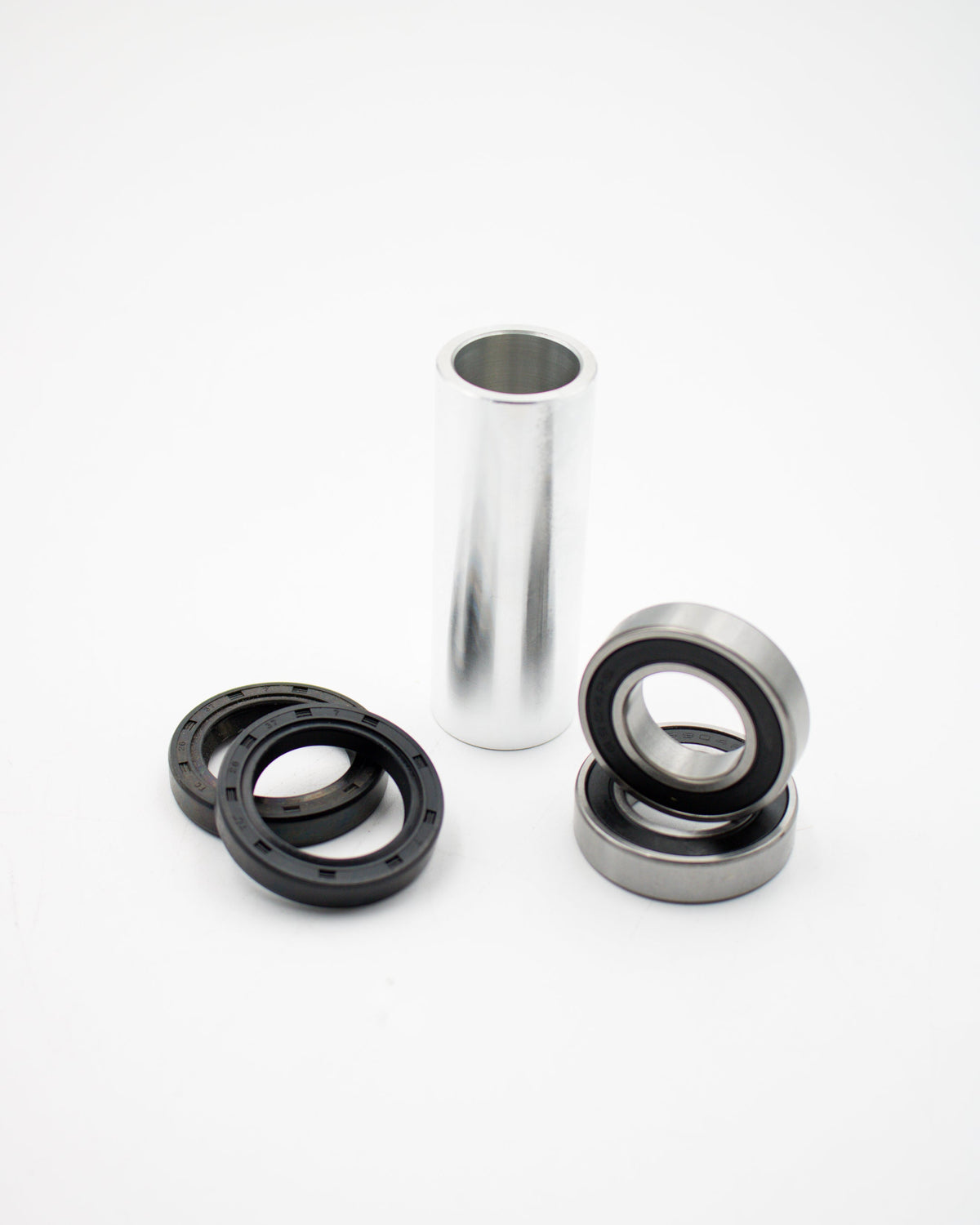

Everything listed for the rear direct drive hub bearing service is included in one kit: 2-6005 bearings (47mmx25mm), 2- 32-47-7 seals, and the distance tube. This helps ensure the hub is rebuilt with matching components rather than mixing old and new parts.
The kit uses 6005 bearings with the stated 47mmx25mm size. Matching the specified bearing type and size is essential for proper fit in the hub, smooth wheel rotation, and long service life when installed in the intended application.
Fitment is clearly limited to a Warp 9 Hub Only for the DRZ rear direct drive hub. The kit is listed for DRZ400E, DRZ400K, DRZ400S, and DRZ400SM models across the year ranges provided, including separate DRZ400E listings for CA Model CV Carb and Non-CA Models Pumper Carb.
Kit 106R for rebuilding the rear direct drive hub wheel bearings and seals on specified Suzuki DRZ models when using a Warp 9 hub only.
| Bearing type | 6005 |
|---|---|
| Bearing quantity | 2 |
| Bearing size | 47mmx25mm |
| Seal specification | 32-47-7 |
| Seal quantity | 2 |
Fits the following models and years when using a Warp 9 Hub Only:
SKU: REBUILD KIT 106R
