Garmin · Off-Road & Motorsports
The Garmin Tread® XL - Baja Chase Edition in the 10" Off-Road Chase Navigator configuration is a rugged off-road navigator built for high-speed chase support and coordination. Designed to help keep teams on course and connected, it combines a large ultrabright touchscreen with tools for importing and viewing race GPX files, including start and end points, virtual checkpoints, pit locations, and race mile markers.
With built-in inReach® technology for team tracking and messaging using global satellite coverage, it’s well suited to chase trucks supporting a race vehicle. A heavy-duty suction cup mount and portable mounting hardware make it easy to move from one support vehicle to another, while the IP67-rated build and MIL-STD-810 drop rating are tailored for demanding desert and off-road environments.
Connectivity
Team tracking leverages built-in inReach® technology to show live positions of a race vehicle and chase truck with global satellite coverage, plus two-way messaging for coordinating support and repairs. Team tracking requires an active inReach Flex Team subscription, and availability is subject to regulations or prohibitions in some jurisdictions.
Training
GPX course file compatibility helps teams prepare ahead of time by importing course data to view start and end, the racetrack line, virtual checkpoints, pit locations, and race mile markers. This on-screen course context is built to support fast decisions when terrain, timing, and logistics change.
Display
A 10.1" diagonal high brightness HD color TFT display delivers an ultrabright multi-touch viewing experience with a glove-friendly touchscreen. The device is built for all-terrain use with IP67-rated dust and water-resistance, an IP6X dust rating, and a MIL-STD-810 drop rating.
Navigation

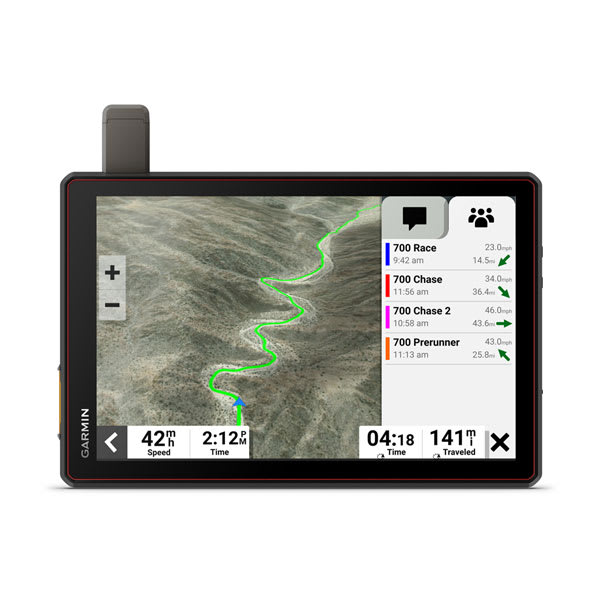

Chase mode is designed for support vehicles that need to keep tabs on a race vehicle in motion. When enabled, the device can track the race vehicle with real-time updates shown directly on the map, helping a chase crew anticipate where the team is heading and coordinate meetups at pits, checkpoints, or other key locations defined in the course data.
Design
This Baja Chase Edition is set up for quick moves between trucks. It includes a heavy-duty suction cup mount along with a locking magnet-assisted mount and vehicle power cable, helping streamline handoffs from one chase vehicle to another without rebuilding a full install. The dual-orientation display supports flexible placement to suit different dashboards and cab layouts.
Connectivity

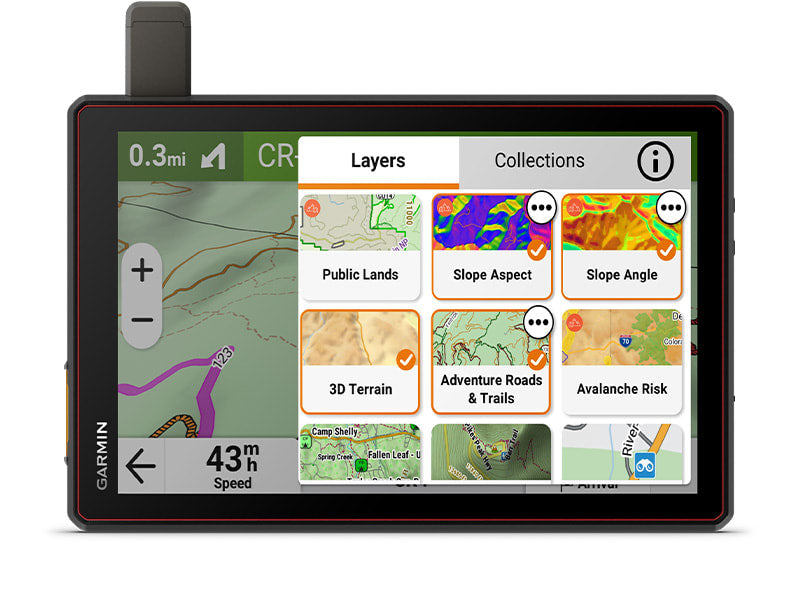

With 128 GB of internal storage and support for external memory storage via microSD™ card (not included), the device is built to handle extensive mapping and ride data. It supports preloaded street maps, preloaded topographical maps, high-definition 3D terrain, and downloadable satellite imagery (BirdsEye), including satellite imagery for the North Baja Peninsula preloaded on the device. Wi-Fi® map and software updates are supported for ongoing maintenance.
| Part Number | 010-02833-00 |
|---|---|
| Model | Tread® XL - Baja Chase Edition |
| Configuration | 10" Off-Road Chase Navigator |
| Dimension | 9.9"W x 7.8"W x 1.2"D (25.2 x 19.9 x 3.1 cm) |
| Weight | 32.8 oz (930 g) |
| Water rating | IPX7 |
| Display Type | Multi-touch, glass, high brightness HD color TFT with white backlight |
| Display Size | 8.5"W x 5.3"H (21.7 cm x 13.6 cm); 10.1" diagonal (25.7 cm) |
| Display resolution | 1280 x 800 pixels |
| Magnetic Mount | Locking magnet-assisted mount |
| Mount type | Heavy-duty suction cup mount |
| Drop rating | MIL-STD-810 |
| Dust rating | IP6X |
| Battery Type | Rechargeable lithium-ion |
| Battery life | Up to 6 hours at 50% backlight; Up to 1 hour at 100% backlight |
| Tread XL - Baja Chase Edition |
| Suction cup mount |
| Vehicle power cable |
| Locking magnet-assisted mount |
| USB-C cable |
| Documentation |
| General | Dual-orientation display, 1.5-inch ball adapter with AMPS plate, Compatible with Tread XL Baja dock accessory |
|---|---|
| Maps & Memory | Preloaded street maps, High-definition 3D terrain, 3D Terrain, Ability to add maps, Includes map updates, BirdsEye Direct satellite imagery |
| Sensors | GPS, Galileo, Barometric altimeter, Compass, 10 Hz multi-GNSS positioning |
| Outdoor Recreation | Preloaded topographical maps, Preloaded US public land boundaries, Preloaded USFS Roads and Trails, including motor-vehicle-use-maps for motorcycle, ATV, SXS and full-size 4x4, Navigate-a-track navigation, Turn-by-turn trail navigation |
| Mapping & Navigation | Point-to-point navigation |
| Advanced Features | Wi-Fi® map and software updates |
| Adventure Features | Built-in inReach® Technology (requires active subscription; subject to regulations or prohibitions in some jurisdictions), Pair with Garmin PowerSwitch™ digital switch box, Compatible with Group Ride Radio, Compatible with external GPS antenna with mount, Compatible with external inReach® satellite antenna, Track recorder (breadcrumbs), iOverlander™ points of interest, Ultimate Public Campgrounds, Birdseye Satellite Imagery (download via Wi-Fi), Glove-friendly touchscreen |
| Data cards | MicroSD™ card (not included) |
|---|---|
| Internal storage | 128 GB |
| External memory storage | Yes (256 GB max microSD™ card) |
| Downloadable Satellite Imagery | Yes (BirdsEye) |
Requires active inReach Flex Team subscription. Some jurisdictions regulate or prohibit the use of satellite communications devices. It is the responsibility of the user to know and follow all applicable laws in the jurisdictions where the device is intended to be used.
Satellite Imagery © 2026 Vantor (date of satellite imagery may vary).
